65 12 000 Removing and installing/replacing speaker (front left or right door)

WARNING: This page is about a different variant/trim than selected.

Remove front left or right door trim panel. Refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

Unfasten plug connection (1).

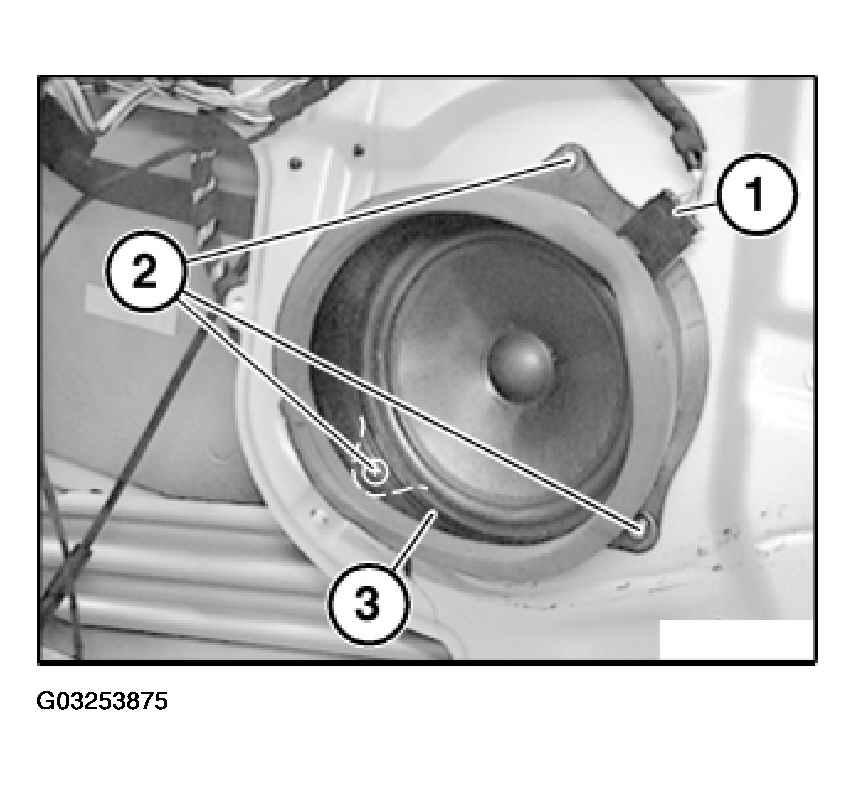

Fig 1: Removing Speaker
G03253875Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) and remove speaker (3).
