64 22 161 Removing and installing/replacing fresh-air grille center

Special tools required:

• 64 1 020

For purposes of clarity:

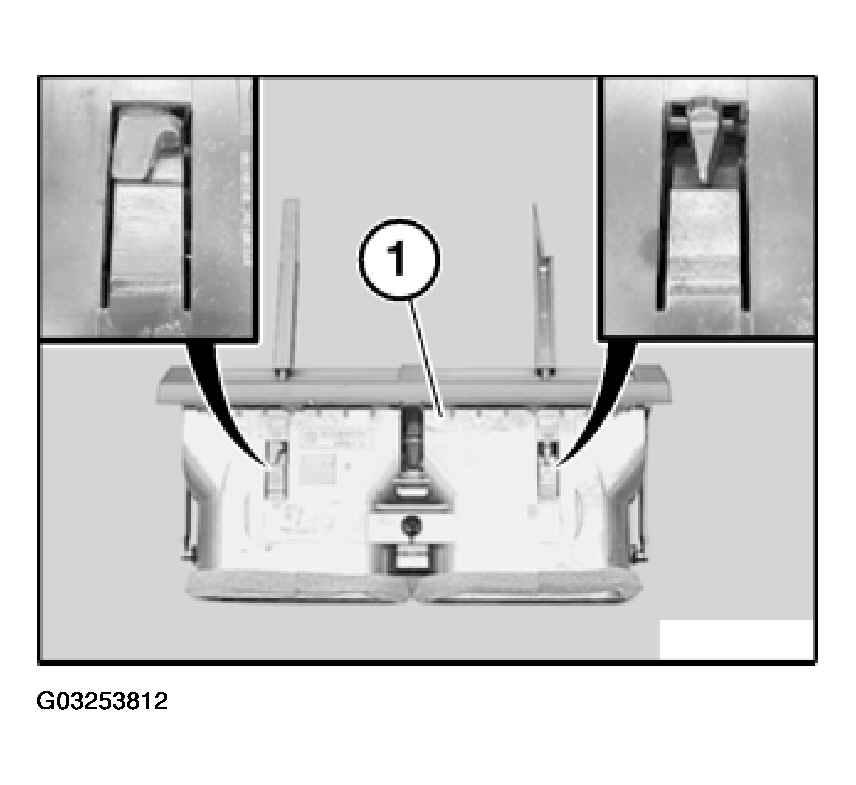

Fig. 1: Fresh air grill (1) in locked state.

Fig. 2: Fresh air grill (1) in unlocked state.

Fig 1: Identifying Fresh Air Grill

Courtesy of BMW OF NORTH AMERICA, INC.

Move air outlet adjuster (1) into illustrated position.

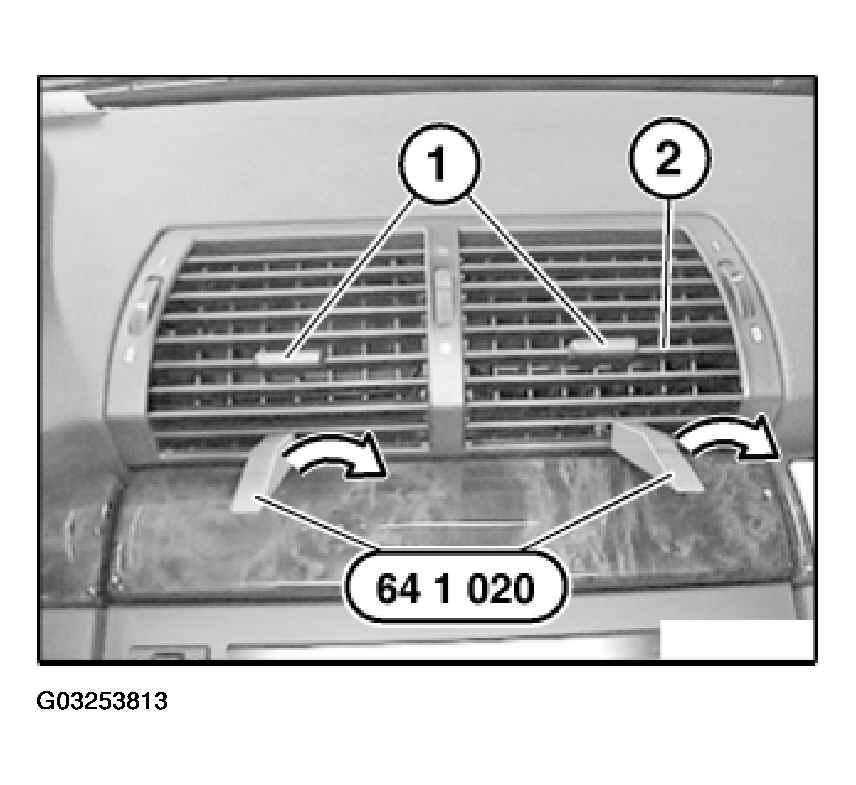

Fig 2: Removing Fresh Air Grill

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 64 1 020 as illustrated at an angle downwards into openings of fresh air grill (2).

To unlock fresh air grill (2), turn special tool 64 1 020 through approx. 90° in direction of arrow.

Withdraw fresh air grill (2) in direction of arrow.

Installation:

First allow fresh air grill (2) to snap into place at top.

Unclip Bowden cable (1) and unhook at eyelet (2).

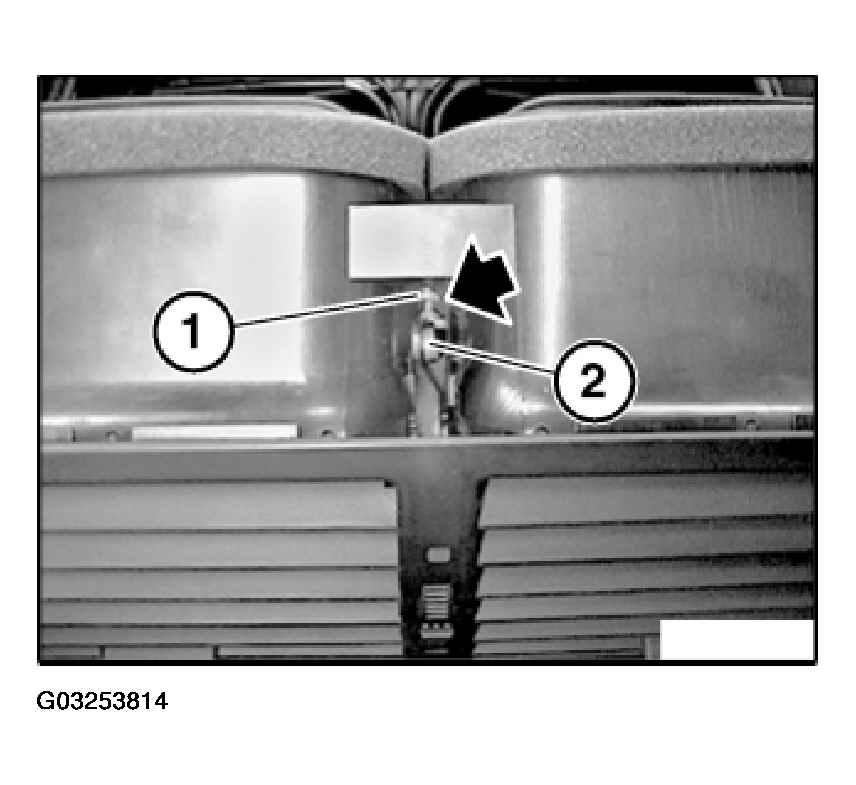

Fig 3: Unclipping Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
