64 11 271 Replacing water valve for heater: All:

WARNING: This page is about a different variant/trim than selected.

Unfasten cable clip (1).

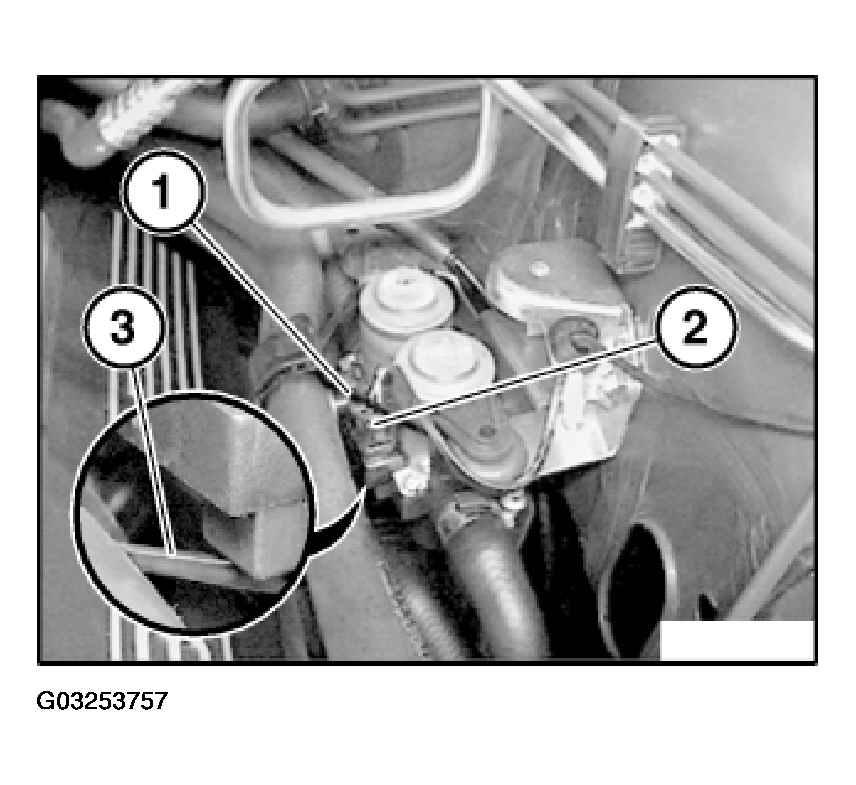

Fig 1: Unfastening Cable Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect connector (2).

Unfasten cable tie (3).

Pull out water valve for heater (1) towards top.

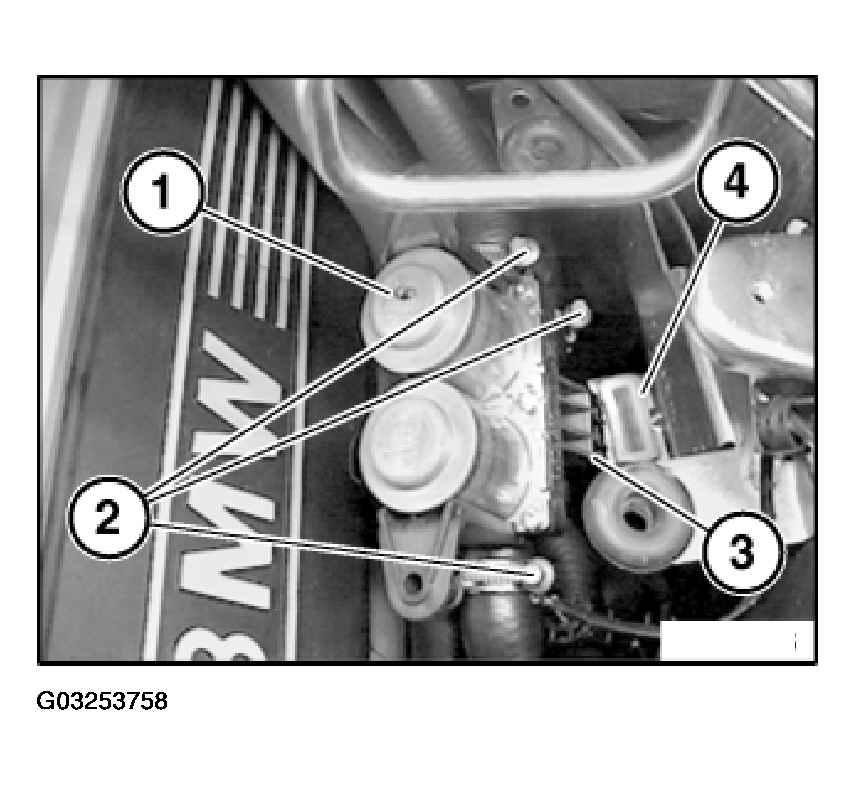

Fig 2: Releasing Hose Clamps And Detaching Water Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Release hose clamps (2) and detach water hoses.

Remove water valve for heater (1).

Installation:

If necessary, replace grommets or rubber mount (4).

Feed pilot pin (3) into rubber mount (4).
