M62 only:

WARNING: This page is about a different variant/trim than selected.

Detach expansion tank, supply tank for power steering pump and main flow oil filter housing (disconnect plug connection at level switch) in each case unopened from equipment carrier.

Release screws (1) and remove equipment carrier (2).

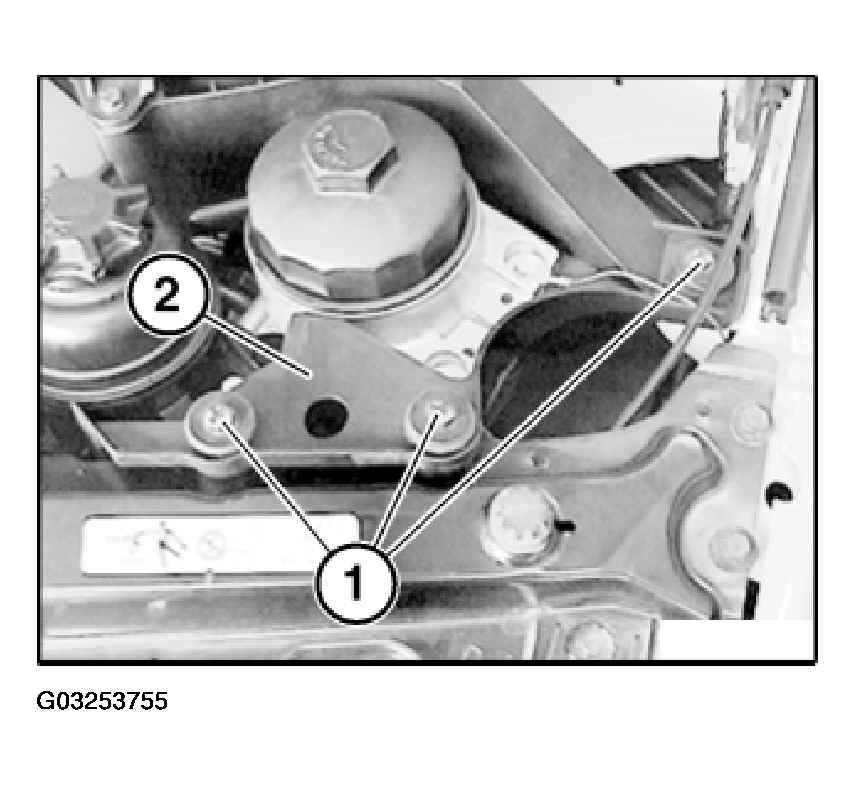

Fig 1: Removing Equipment Carrier
G03253755Courtesy of BMW OF NORTH AMERICA, INC.
