61 31 091 Removing and installing/replacing switch for left or right seat heating (rear)

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

NOTE: Removal of switch for right seat heating (2) is depicted.

Switch for left seat heating (4) is removed in the same way as switch for right seat heating (2).

Press locks (1) together, feed switch for right seat heating (2) out of rear compartment fresh-air grill (3) and remove.

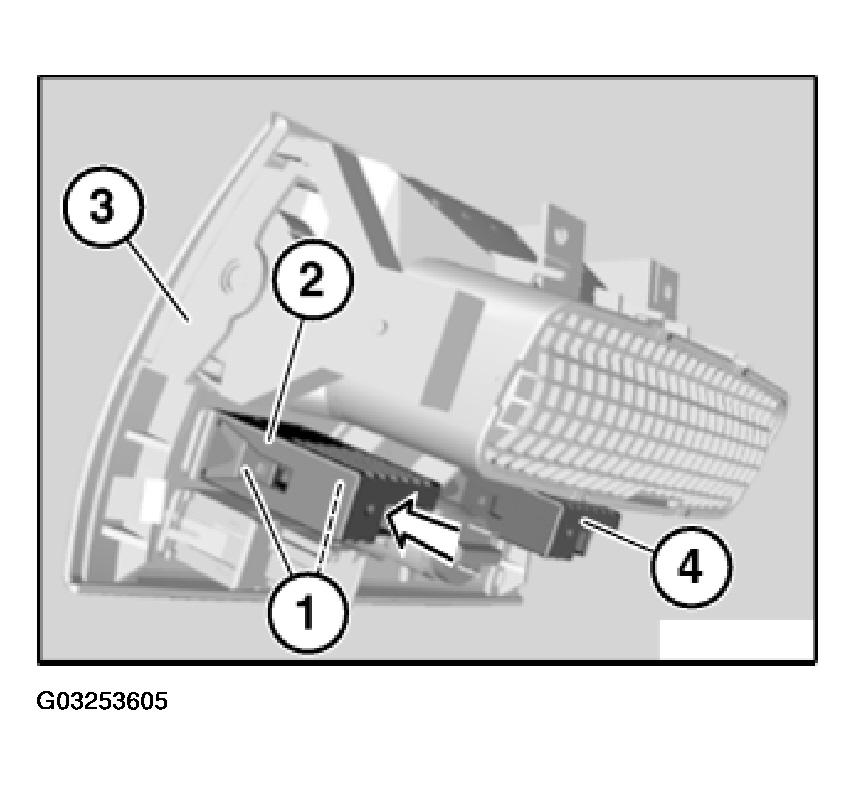

Fig 1: Removing Switch For Left Or Right Seat Heating

Courtesy of BMW OF NORTH AMERICA, INC.
