61 62 110 Removing and installing / replacing spray nozzle for rear window washer unit

WARNING: This page is about a different variant/trim than selected.

Special tools required:

Lever spray nozzle for rear window washer system (1) with special tool 00 9 317 out of spray nozzle holder (2).

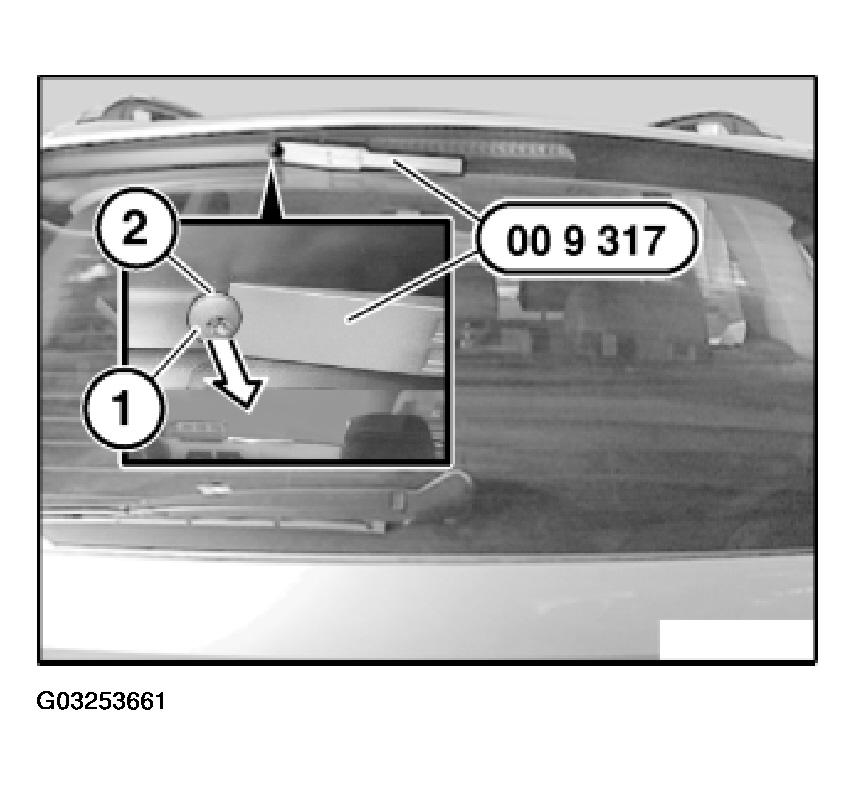

Fig 1: Removing Spray Nozzle For Rear Window Washer Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert lug (2) of spray nozzle for rear window washer system (1) into groove of spray nozzle holder.

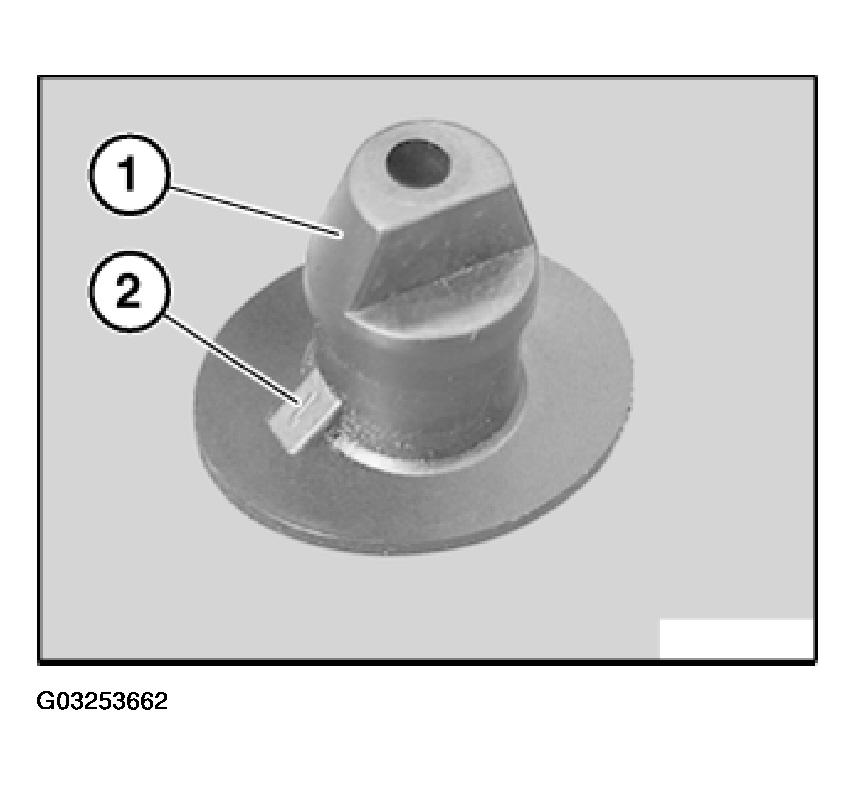

Fig 2: Inserting Lug Of Spray Nozzle For Rear Window Washer System

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Adjusting spray nozzle on rear window washer unit. Refer to 61 62 100 ADJUSTING JET NOZZLE FOR REAR WINDOW WASHER UNIT .
