61 62 060 Removing and installing / replacing rear window wiper motor

Remove panel for rear lid upper section at bottom. Refer to 51 49 050 REMOVING AND INSTALLING/REPLACING LOWER TRIM FOR REAR LID UPPER SECTION .

Remove wiper arm for rear wiper. Refer to 61 62 030 REPLACING WIPER ARM FOR REAR WINDOW WIPER  .

Disconnect plug connection (1) and release screws (2).

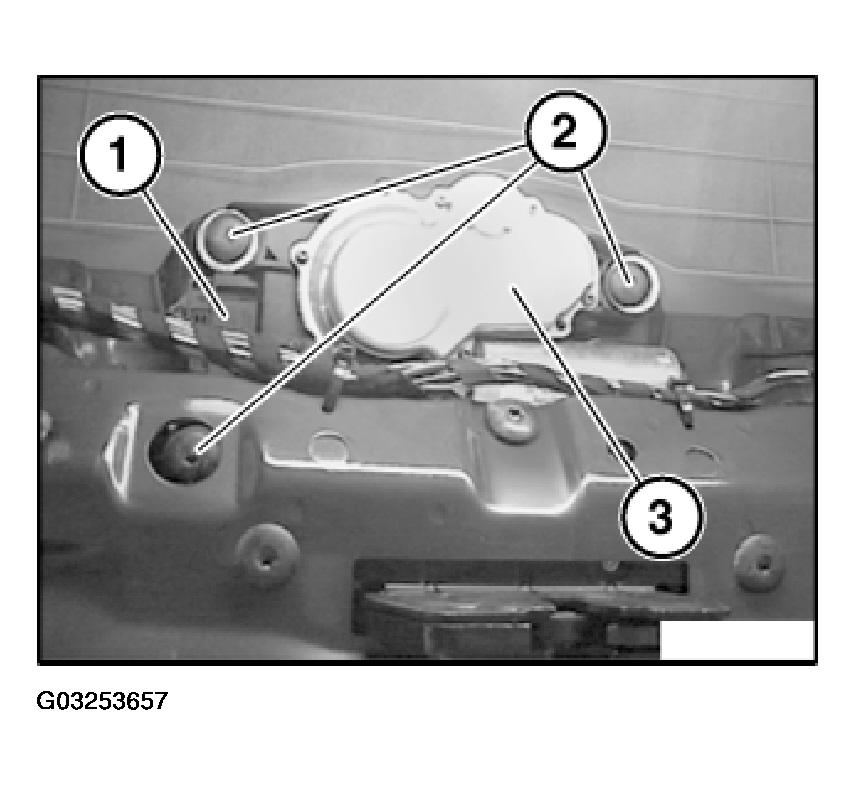

Fig 1: Removing Rear Window Wiper Motor

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rear window wiper motor (3).

Installation:

Insert screws (2) and tighten until hand-tight.

Center rear window wiper motor (3) and tighten down screws (2).

Observe tightening torque, 61 62 1AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Installation:

Replace rubber grommet (1).

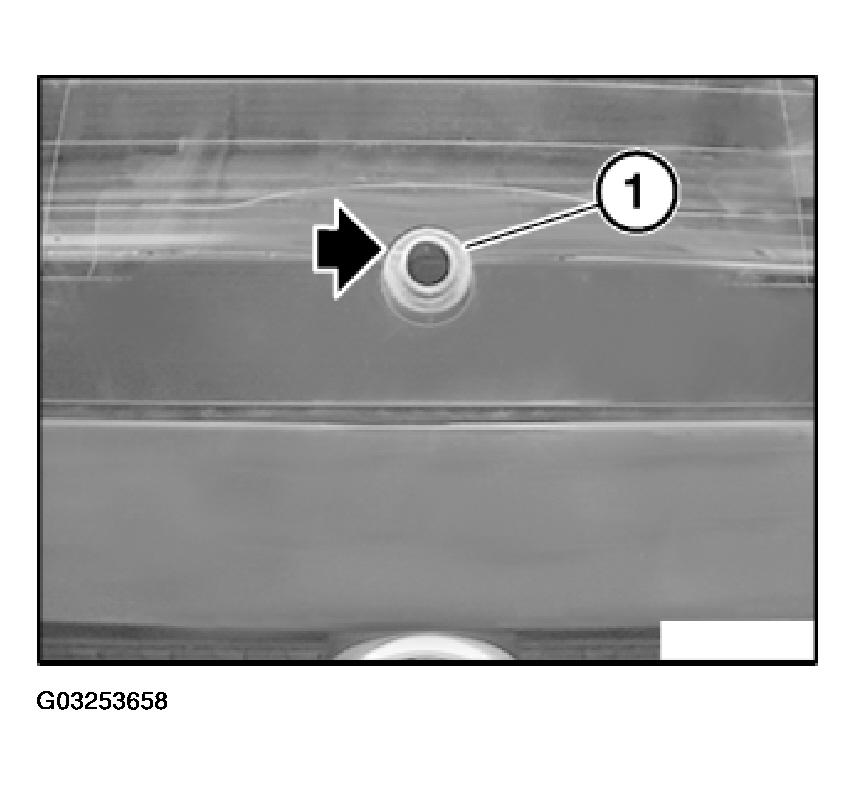

Fig 2: Replacing Rubber Grommet

Courtesy of BMW OF NORTH AMERICA, INC.

Note installation position of rubber grommet (1) (marking must be in horizontal position).
