64 11 772 Removing and installing/replacing the rear fan completely
WARNING: This page is about a different variant/trim than selected.
Remove oddments tray, refer to 51 16 220 REPLACING TRIMS FOR CENTER CONSOLE .

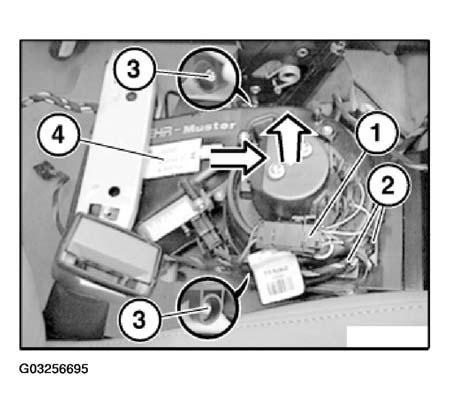

Disconnect plug connection (1) and unclip cable (2). Unfasten screws (3).
Slide rear compartment fan (4) forwards. Feed out air duct for rear compartment and lift out rear compartment fan (4).
Installation:
Snap retaining lug on underside of rear compartment place into mount.
