54 12 220 Replacing control rail for left/right glass slide/tilt sunroof

WARNING: This page is about a different variant/trim than selected.

NOTE: When replacing a control rail, always check the second control rail for signs of wear and always replace in pairs when required.
If necessary, apply light coat of Renax GL1 (Fuchs) grease to guide duct.
Removing and installing complete slide/tilt sunroof (frame), refer to 54 12 210 REMOVING AND INSTALLING COMPLETE SLIDE/TILT SUNROOF (FRAME) .
Removing and installing headliner for glass slide/tilt sunroof cover, refer to 54 12 136 REMOVING AND INSTALLING / REPLACING HEADLINER FOR GLASS SLIDE/TILT SUNROOF COVER .
Removing and installing gutter for glass slide/tilt sunroof.

Slide control rail backwards.

Lift linkage (1) off carriage (2) (support for gutter) and pull carriage (2) out of guide channel (3).

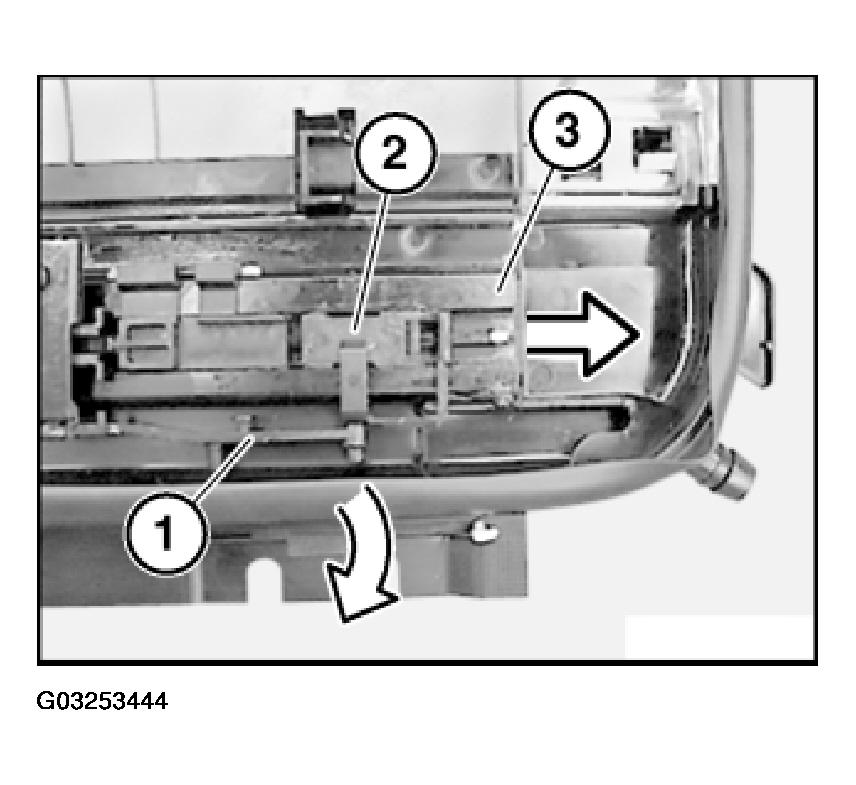

Fig 1: Lifting Linkage Off Carriage

G03253444

Courtesy of BMW OF NORTH AMERICA, INC.

Left side:

Slide control rail (1) backwards, lifting the linkage (2) and lifting lever (3) over the gasket (4).

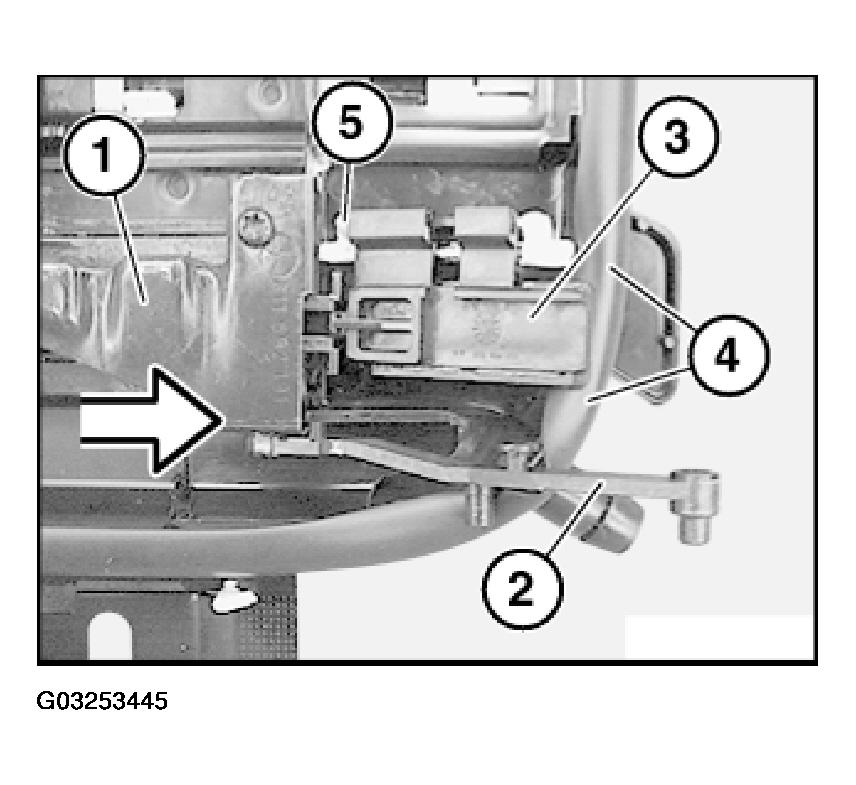

Fig 2: Sliding Control Rail (Left Side)

G03253445

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Only slide back until nipple (5) on drive cable emerges from guide channel.

Right side:

Slide control rail (1) backwards, lifting the linkage (2) over the gasket (3) at the same time.

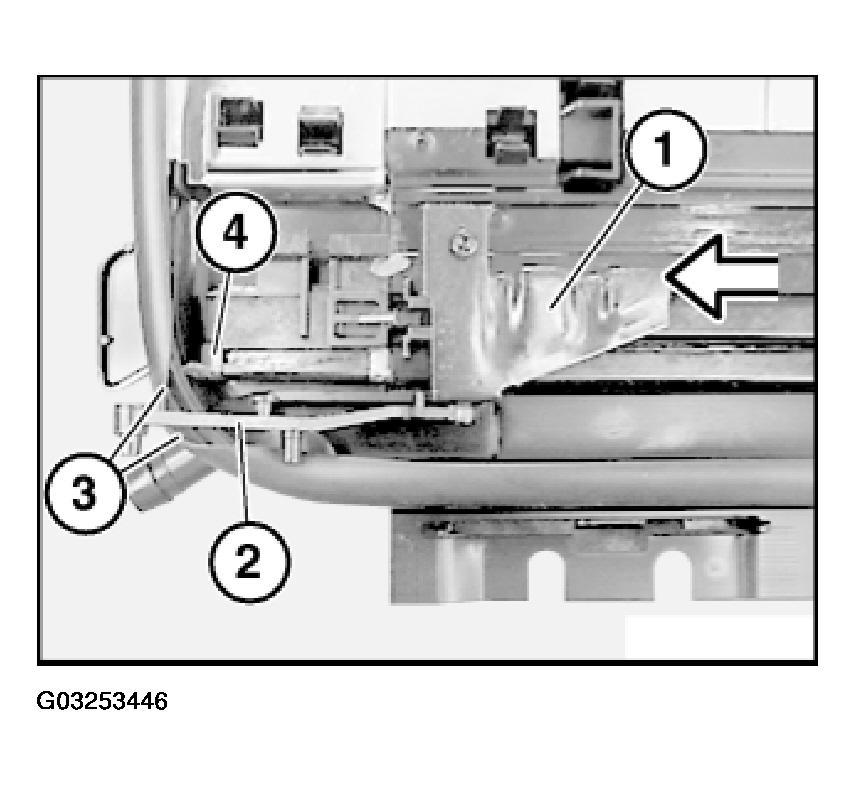

Fig 3: Sliding Control Rail (Right Side)

G03253446

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Only slide back until nipple (4) of the drive cable makes contact with the gutter.

Left side:

Unhook nipple (1) on drive cable from lifting lever (2) with plier tips.

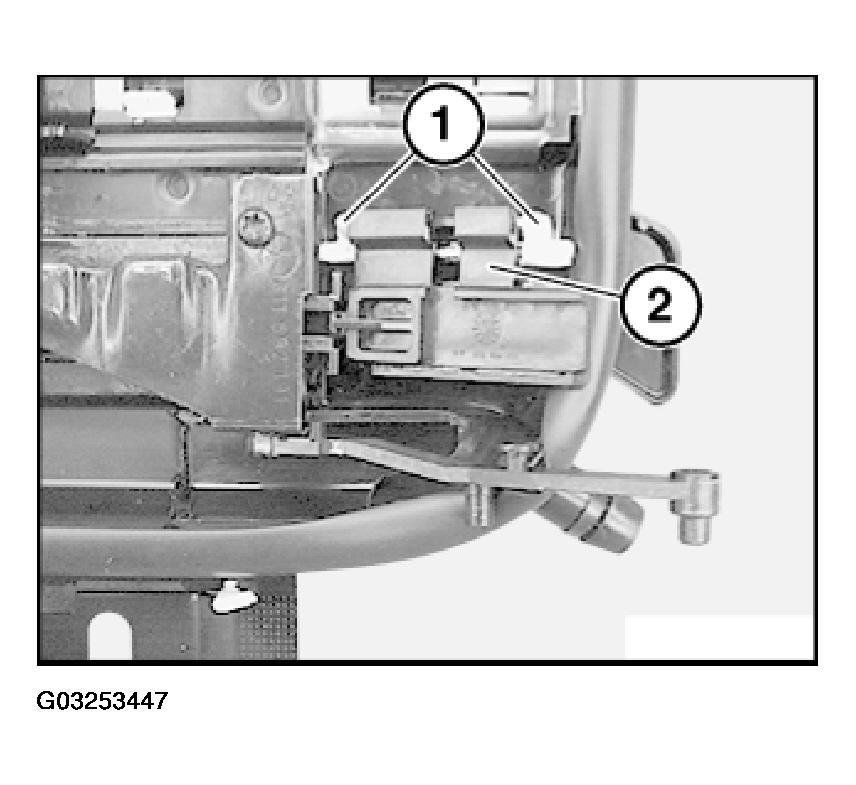

Fig 4: Unhooking Nipple (Left Side)

G03253447

Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

Twist lifting lever (1) upwards.

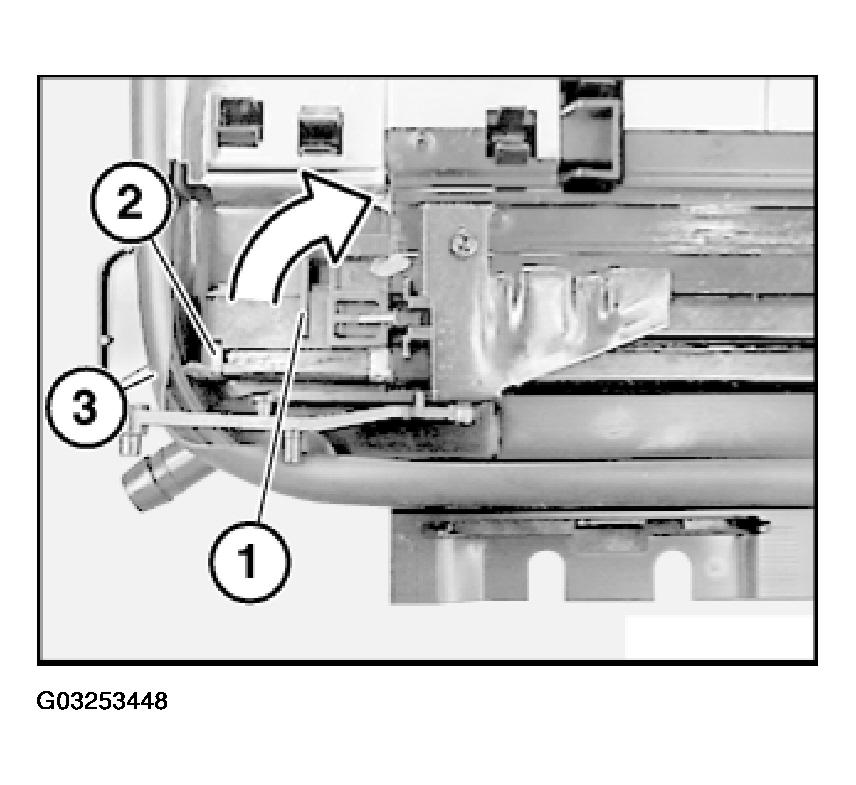

Fig 5: Twisting Lifting Lever

G03253448

Courtesy of BMW OF NORTH AMERICA, INC.

Pull drive cable out slightly and lift over the gasket (3).

Left side:

Slide control rail (1) backwards until guide on control rail (1) emerges from guide channel, then lift the control rail (1).

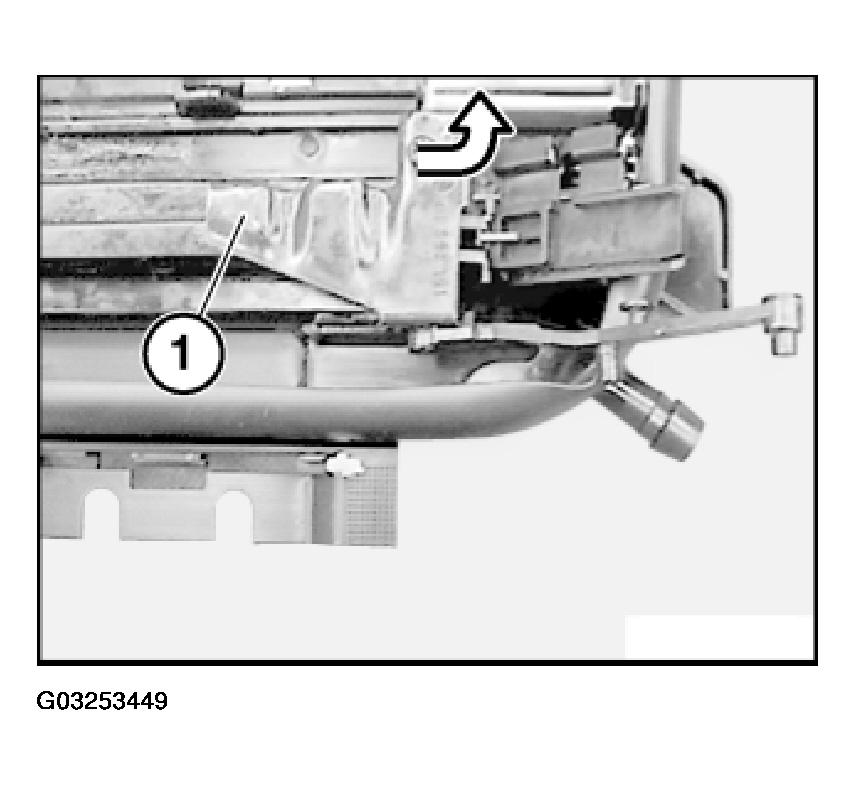

Fig 6: Sliding Control Rail (Left Side)

G03253449

Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

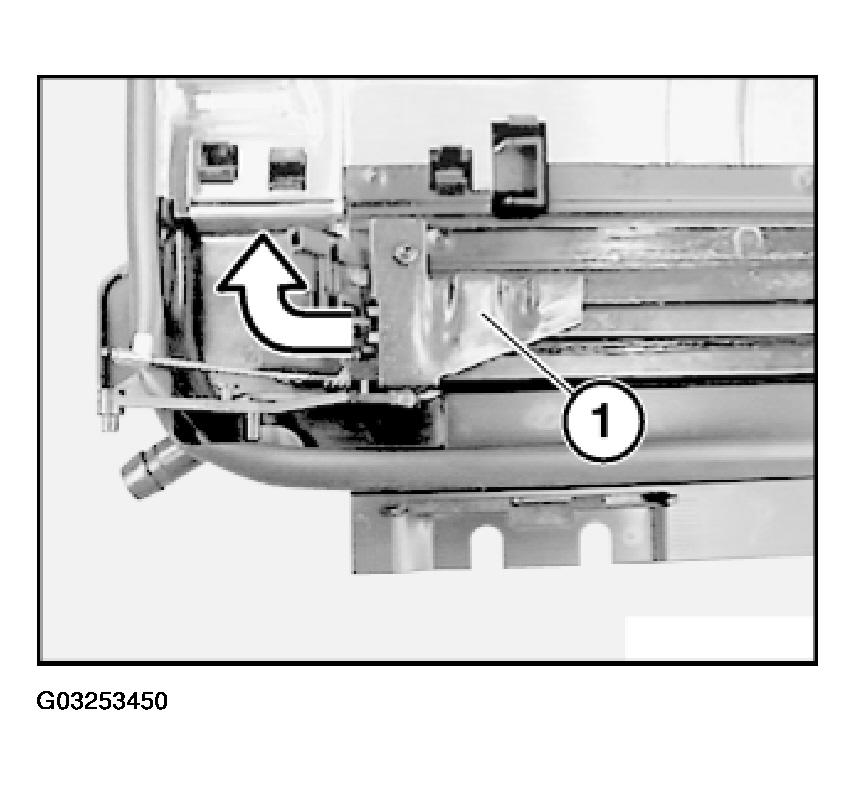

Slide control rail (1) backwards until the guide on the control rail (1) emerges from the guide channel, then lift the control rail (1).

Fig 7: Sliding Control Rail (Right Side)

G03253450

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

The guide (1) on the control rail (2) must run in the guide channel (3).

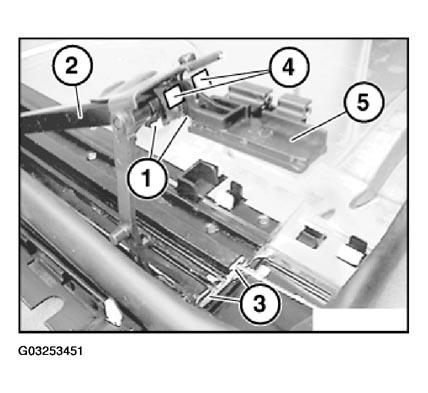

Fig 8: Identifying Guide On Control Rail

G03253451

Courtesy of BMW OF NORTH AMERICA, INC.

The guide (4) on the lifting lever (5) must run above the guide channel (3).

Lift control rail (1) and pull backwards out of guide channel (3) with sliding section (2).

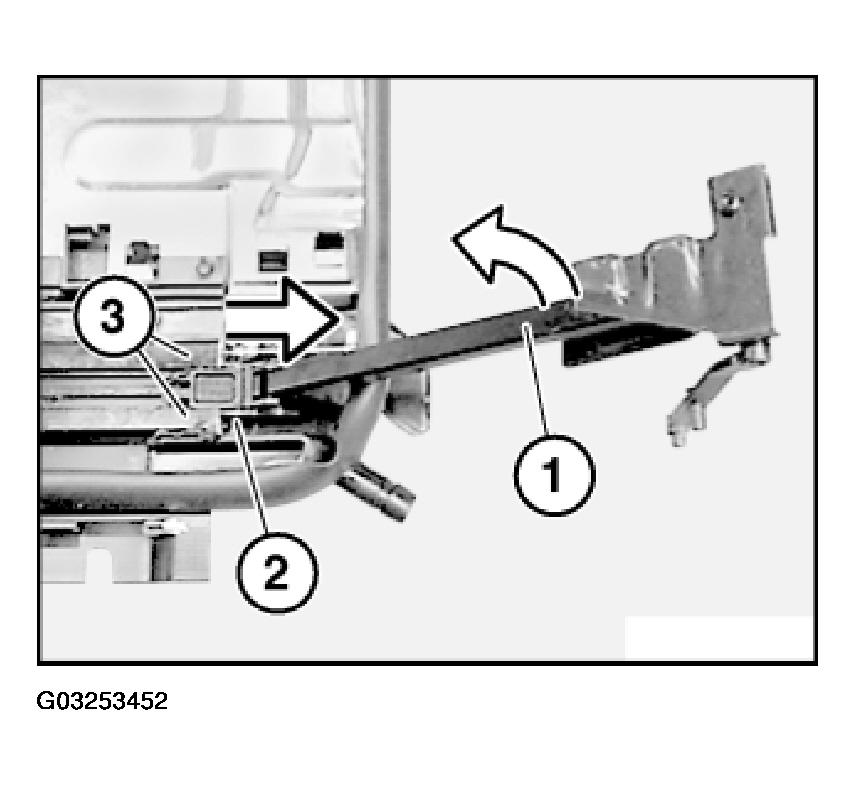

Fig 9: Lifting Control Rail

G03253452

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjusting both drive cables for glass slide/tilt sunroof actuation, refer to 54 12 265 ADJUSTING BOTH DRIVE CABLES FOR ACTUATION OF GLASS SLIDE/TILT SUNROOF .

Check function.
