11 36 635 Removing and installing/replacing distributor on right camshaft adjustment unit (M62 VANOS from 9/98): Removal

WARNING: This page is about a different variant/trim than selected.

Removal of the camshaft adjustment unit distributor is described separately from installation.

Remove right camshaft adjustment unit,

refer to 11 36 615 REMOVING AND INSTALLING/REPLACING RIGHT CAMSHAFT ADJUSTMENT UNIT (M62 VANOS FROM 9/98) .

NOTE: After releasing, oil drips out of the solenoid valve. Have a cleaning cloth ready.

Make sure no oil drips onto the belt drive. Remove any remnants of oil immediately with cleaning cloth.

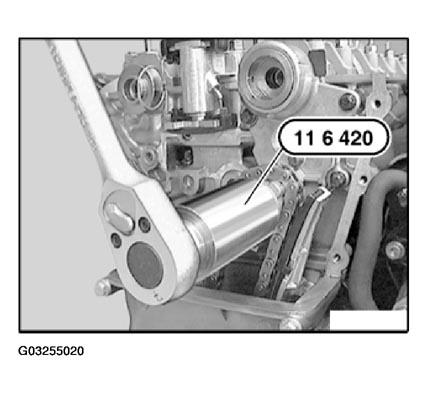

Release solenoid valve with special tool 11 6 420.

Fig 1: Releasing Solenoid Valve (Right Bank)

Courtesy of BMW OF NORTH AMERICA, INC.

Feed timing chain out of camshaft adjustment unit distributor.

Secure timing chain to prevent it from sliding down.

NOTE: Screw (1) with sealing ring.

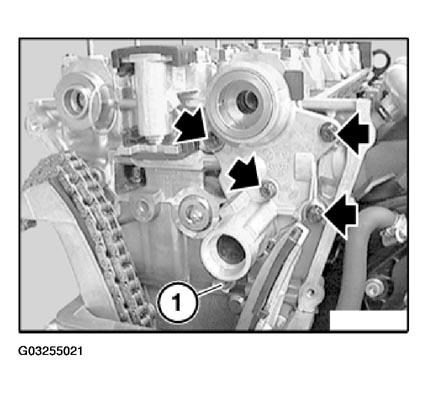

Release screws on camshaft adjustment unit distributor.

Fig 2: Removing Camshaft Adjustment Unit Distributor (Right Bank)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If the camshaft adjustment unit distributor and the seal (three plain compression rings) are worn, the removal operation may be awkward.

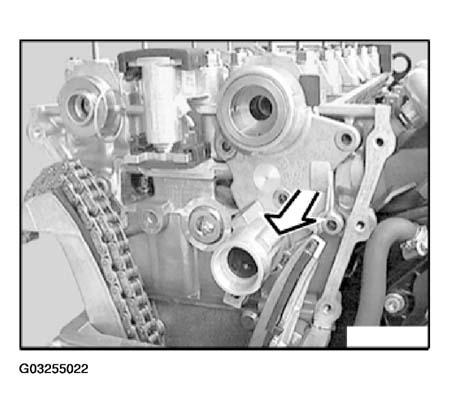

By moving it back and forth, carefully detach distributor straight from camshaft.

Fig 3: Removing Camshaft Adjustment Unit Distributor (Right Bank)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The camshaft adjustment unit distributor is sealed on the inside with plain compression rings.

Traces of wear on the distributor plain compression rings up to a depth of approx. 0.1 to 0.2 mm are normal.

If there is pitting or scoring in the longitudinal direction, the plain compression rings and the distributor must be replaced.

Fig 4: Removing Compression Ring

Courtesy of BMW OF NORTH AMERICA, INC.

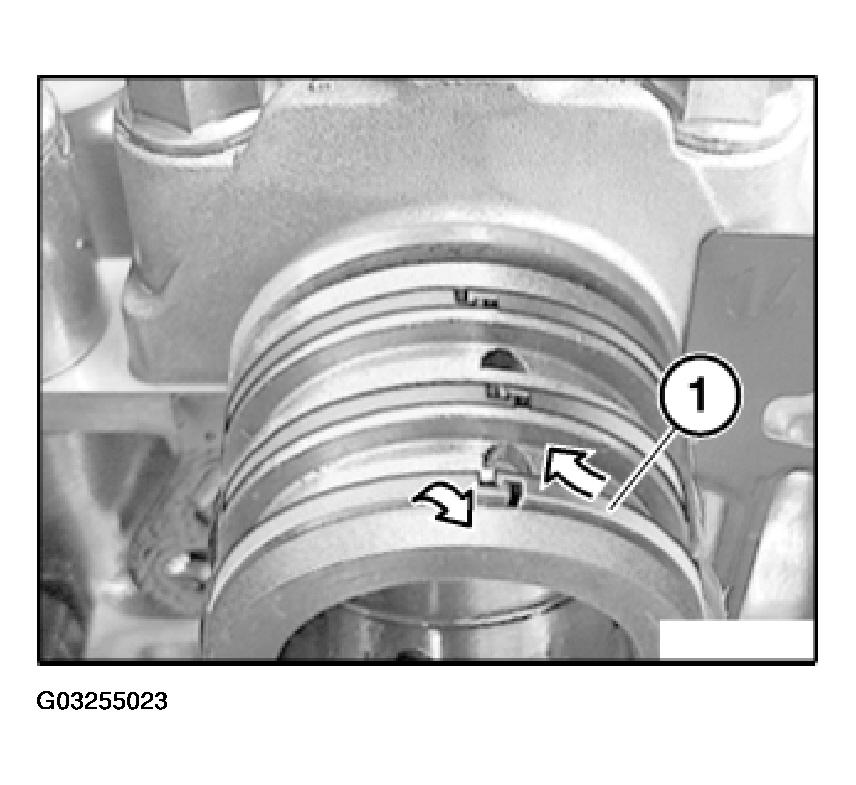

If necessary, remove seal (three plain compression rings).

NOTE: The plain compression rings have catches at the joint.

Press compression ring (1) upwards as far as possible and remove catch.

Carefully pull compression ring (1) apart and remove towards front.

Installation:

If necessary, replace seal (three plain compression rings).

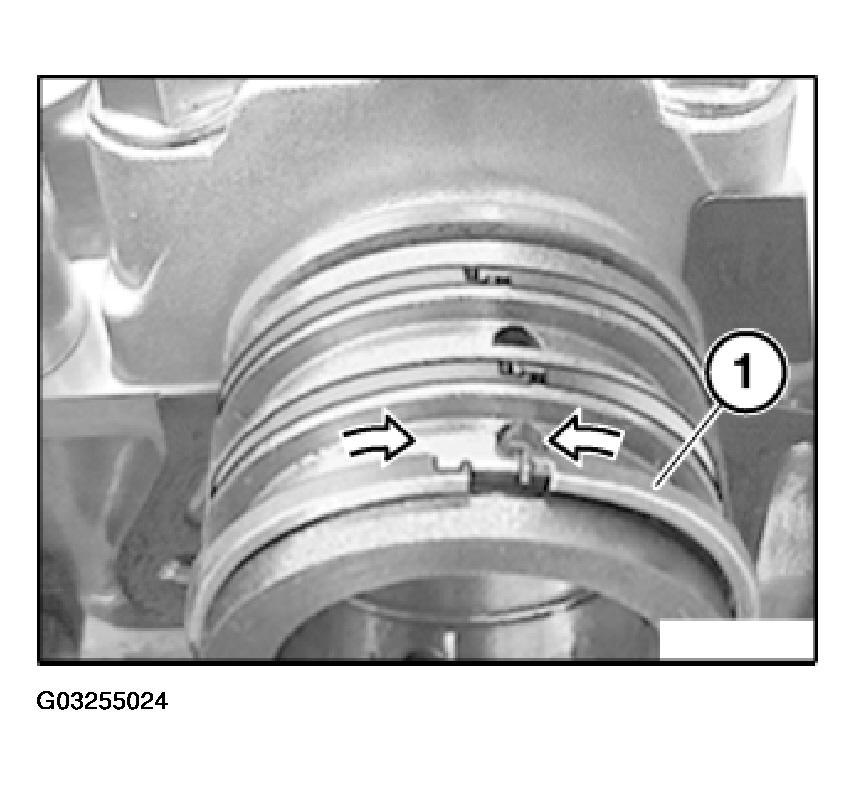

Carefully pull compression ring (1) apart and install.

Press compression ring (1) upwards as far as possible and install catch.

Fig 5: Installing Compression Ring

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The gasket is secured in a groove on the camshaft bearing cover and over the non-return valve (1).

The non-return valve (1) is "inserted" in the cylinder head and can fall out if the gasket is not fed out carefully.

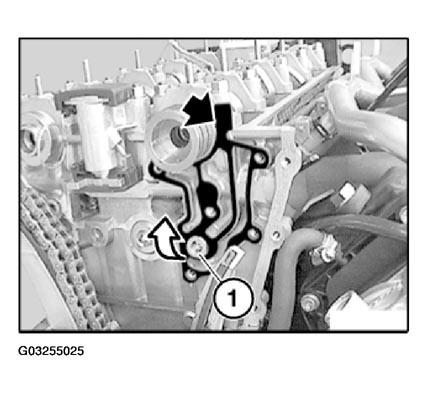

Carefully feed out gasket.

Fig 6: Removing Camshaft Adjustment Unit Distributor Gasket (Right Bank)

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove non-return valve.

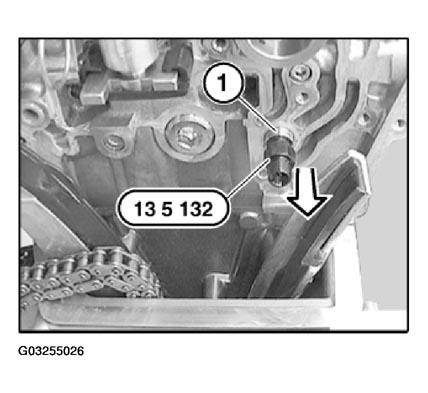

Insert commercially available screw with M10x1 thread or special tool 13 5 132 as and extraction aid by hand in non-return valve (1) and carefully remove.

Fig 7: Removing Non-Return Valve (Right Bank)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing ring (1) on non-return valve.

CAUTION: Check installed direction.

An incorrectly installed non-return valve will result in engine damage.

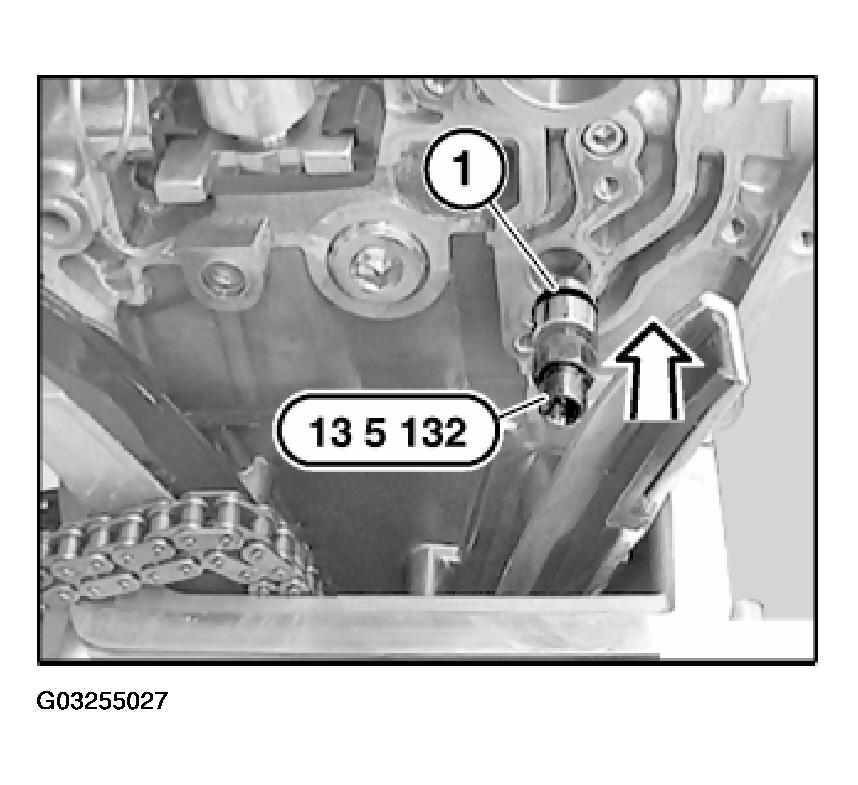

Install non-return valve with M10x1 thread facing outwards.

Fig 8: Installing Non-Return Valve (Right Bank)

Courtesy of BMW OF NORTH AMERICA, INC.
