52 17 380 Removing and installing/replacing head restraint mount on left or right front seat (comfort)

WARNING: This page is about a different variant/trim than selected.

Remove rear panel at top. Refer to 52 17 200 REMOVING AND INSTALLING/REPLACING TOP REAR PANEL ON FRONT SEAT BACKREST (LUXURY SEAT) or 52 17 202 REMOVING AND INSTALLING/REPLACING BOTTOM REAR PANEL ON FRONT SEAT BACKREST (LUXURY SEAT) .

Remove head restraint. Refer to 52 17 390 REMOVING AND INSTALLING OR REPLACING FRONT LEFT OR RIGHT HEAD RESTRAINTS (COMFORT) .

Unlock connector (1) and remove.

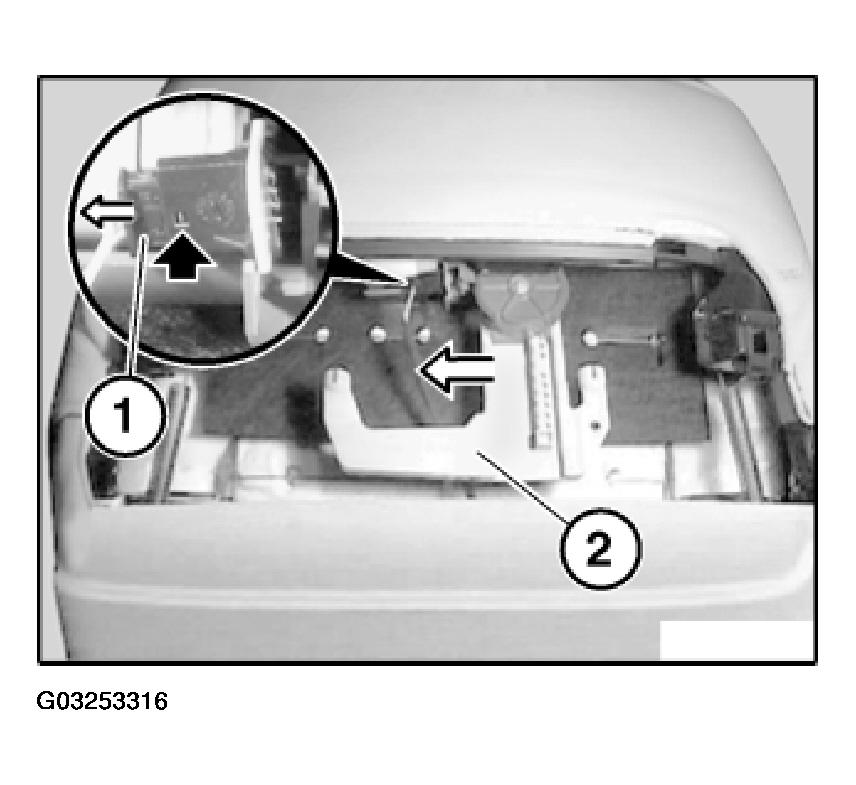

Fig 1: Locating Connector

G03253316

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock head restraint mount (2) by gently tapping it to left and remove.

Installation:

Carry out function check.
