11 36 590 Removing and installing/replacing solenoid valve of camshaft adjustment unit, right (M62 VANOS from 9/98): Notes

WARNING: This page is about a different variant/trim than selected.

Remove intake filter housing with air-mass flow sensor.

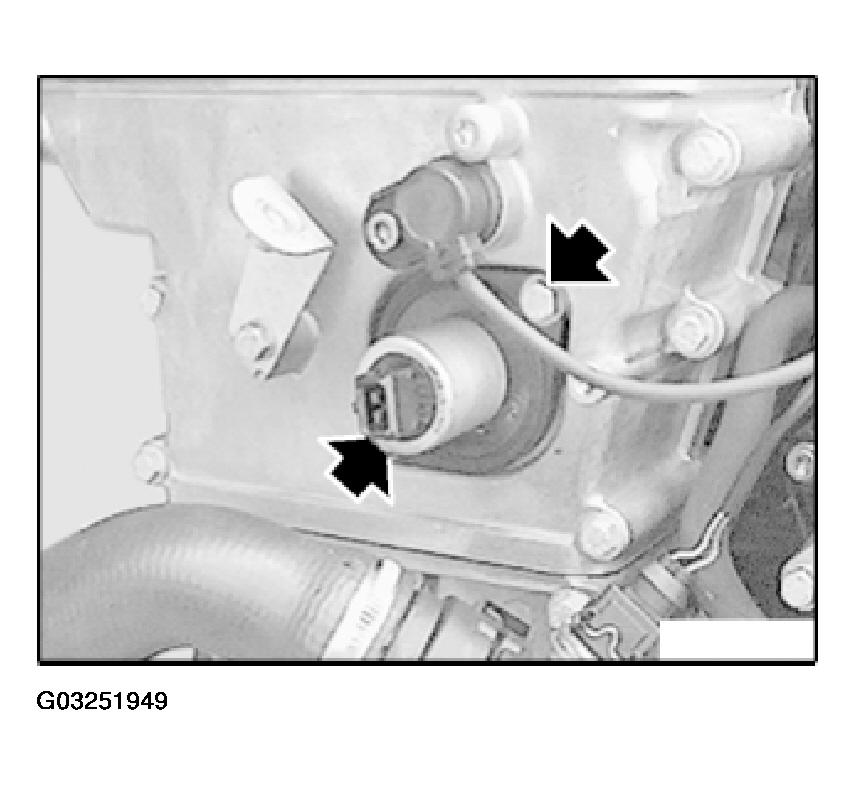

Release screws on sealing flange.

Fig 1: Releasing Screws On Sealing Flange

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The sealing flange seals the timing case cover via the solenoid valve.
If necessary, clean solenoid valve with a cloth.

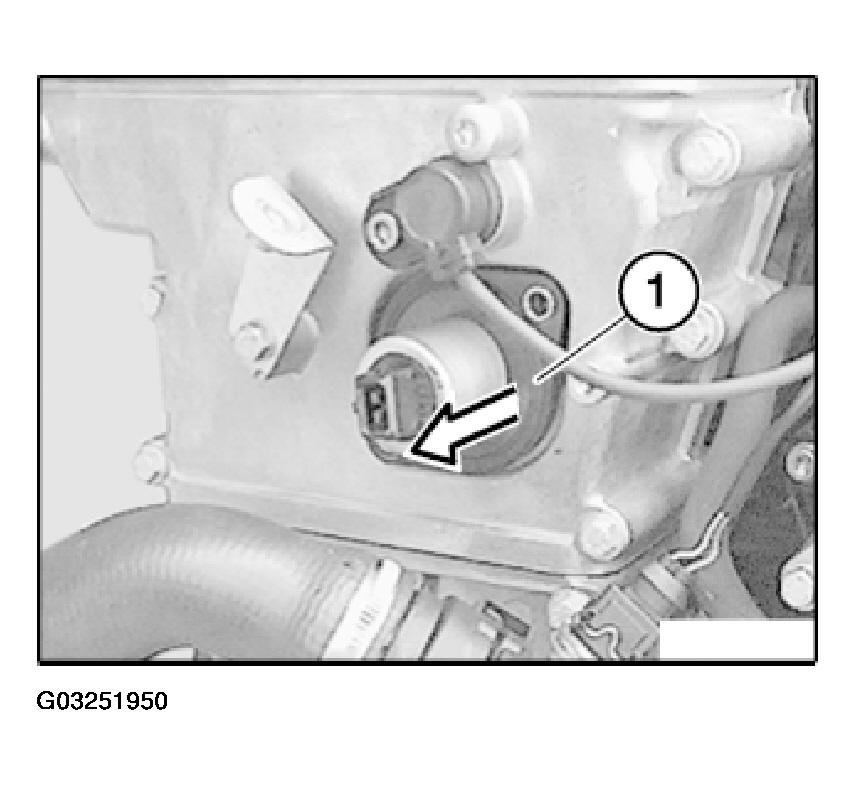

Remove sealing flange (1).

Fig 2: Removing Sealing Flange

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Once it has been removed, oil drips from the solenoid valve.
Have a cleaning cloth ready.
Make sure no oil drips onto the belt drive. Remove any remnants of oil immediately with cleaning cloth.

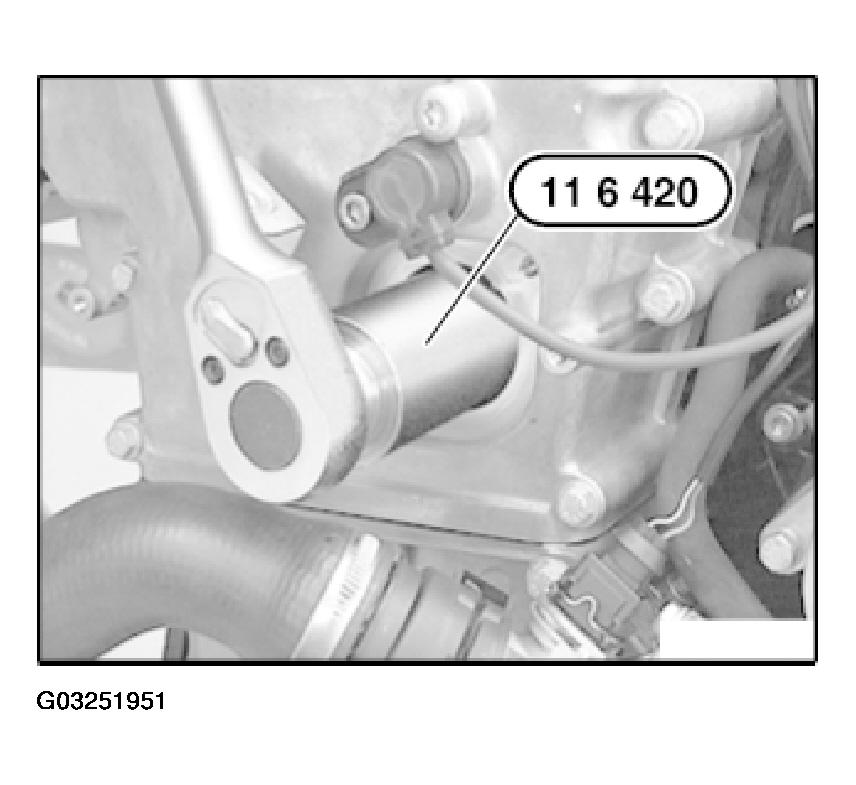

Release solenoid valve with special tool 11 6 420.

Fig 3: Releasing Solenoid Valve With Special Tool 11 6 420

Courtesy of BMW OF NORTH AMERICA, INC.
