11 13 010 Removing and installing/replacing upper section of oil sump (M62): Installation

WARNING: This page is about a different variant/trim than selected.

Replace O-ring.

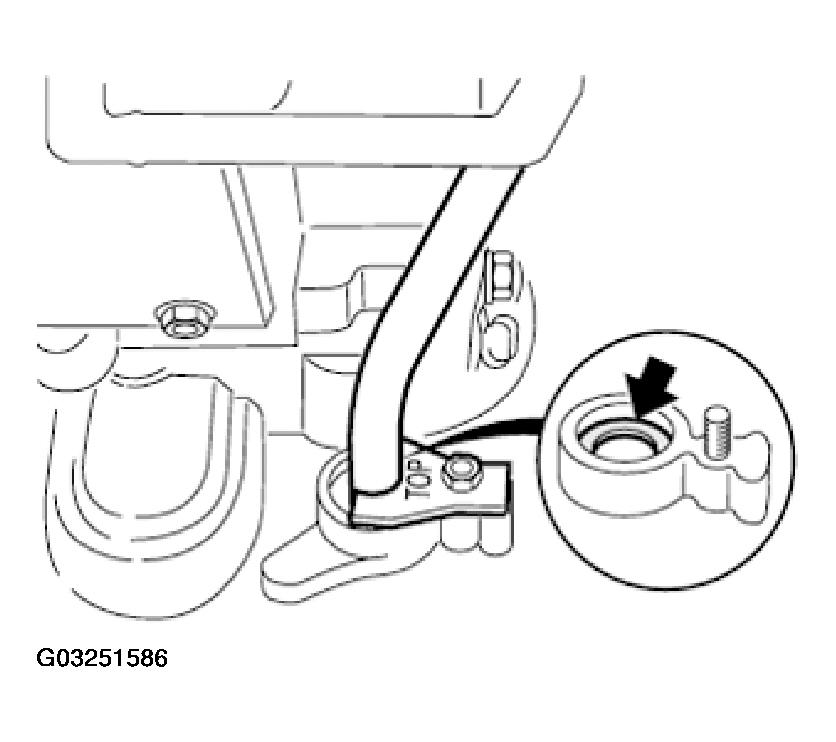

Insert O-ring and washer in oil sump bore.

Fig 1: Inserting O-Ring And Washer In Oil Sump Bore

Courtesy of BMW OF NORTH AMERICA, INC.

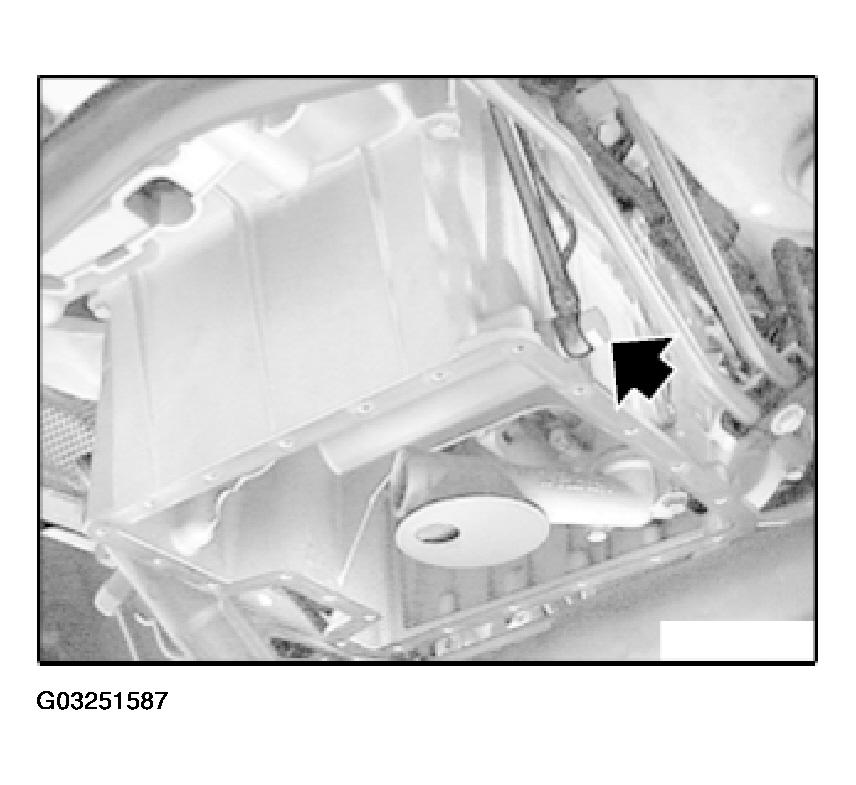

Detach oil return line coming from oil separator from oil sump.

Fig 2: Detaching Oil Return Line Coming From Oil Separator

Courtesy of BMW OF NORTH AMERICA, INC.

Replace sealing ring.

Tightening torque,

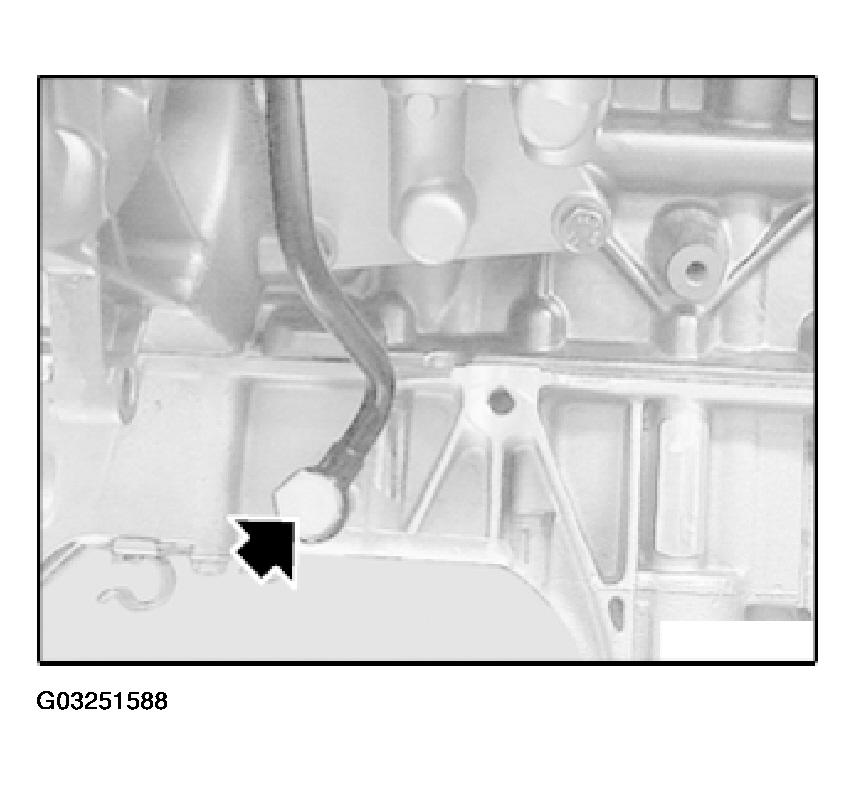

Detach oil return line coming from main flow oil filter to oil sump.

Fig 3: Detaching Oil Return Line Coming From Main Flow Oil Filter From Oil Sump

Courtesy of BMW OF NORTH AMERICA, INC.

Replace sealing ring.

Tightening torque,

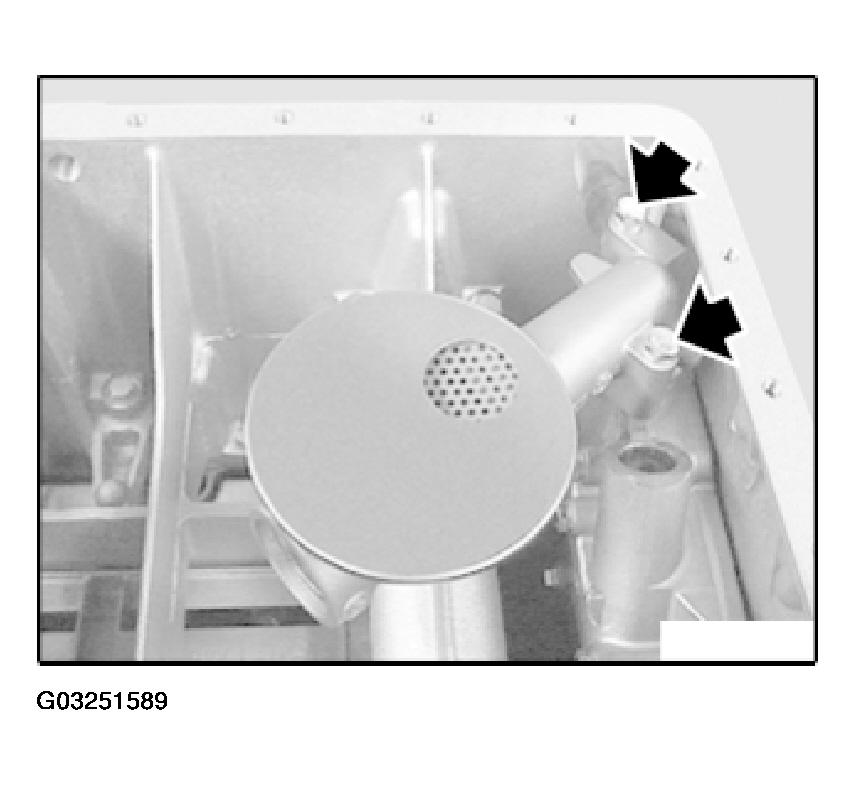

Remove snorkel on oil pump.

Fig 4: Removing Snorkel On Oil Pump

Courtesy of BMW OF NORTH AMERICA, INC.

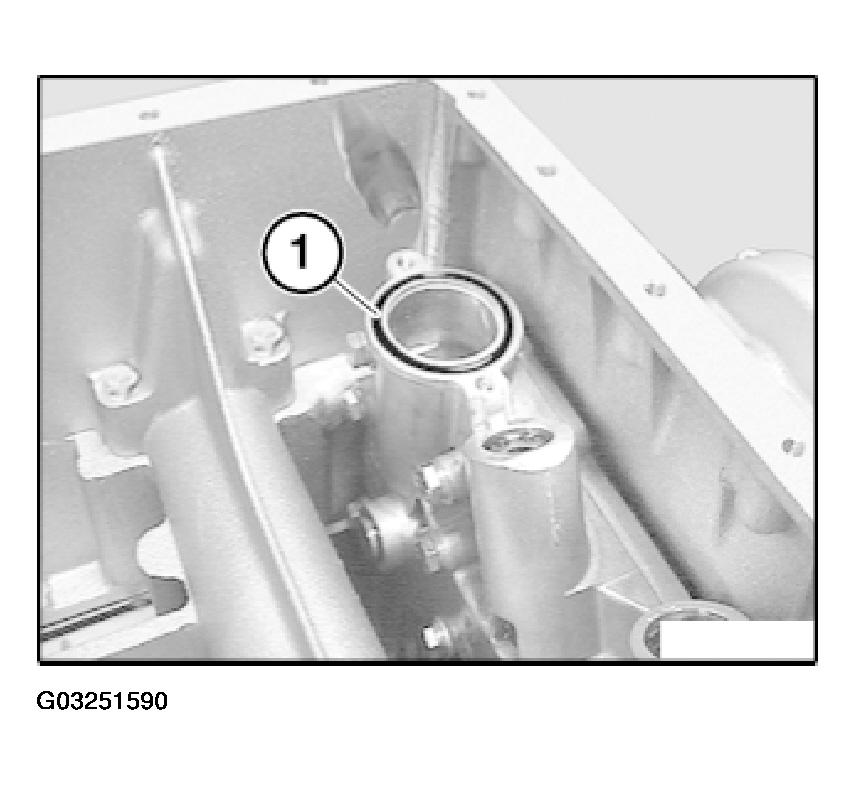

Replace O-ring.

If necessary, secure O-ring with grease in oil pump.

Fig 5: Replacing O-Ring

Courtesy of BMW OF NORTH AMERICA, INC.

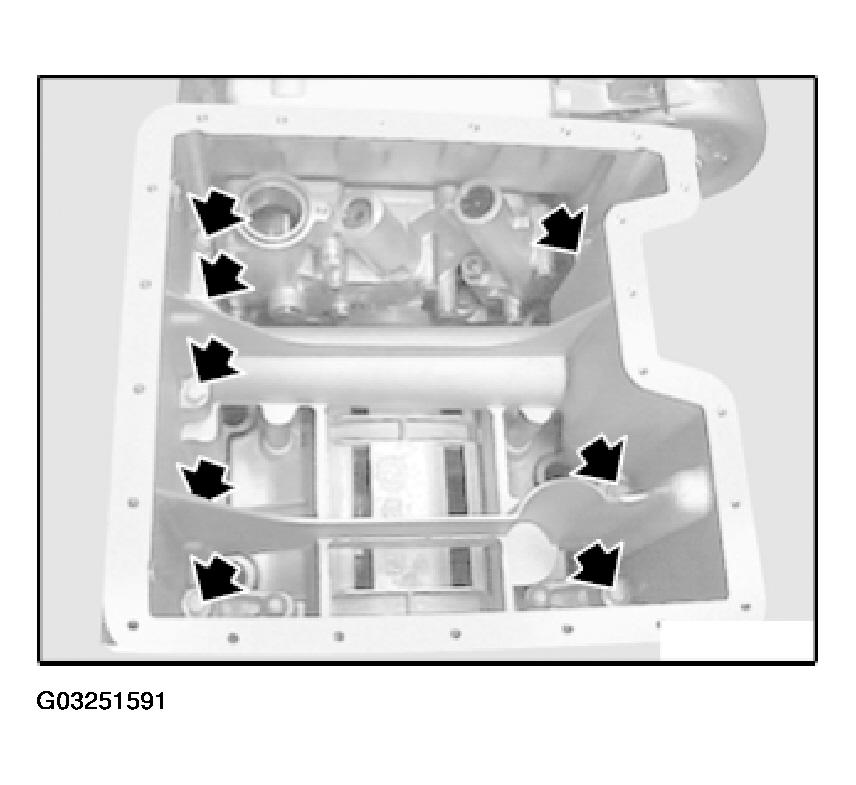

Unfasten screws inside oil sump.

Fig 6: Unfastening Screws For Inside Oil Sump

Courtesy of BMW OF NORTH AMERICA, INC.

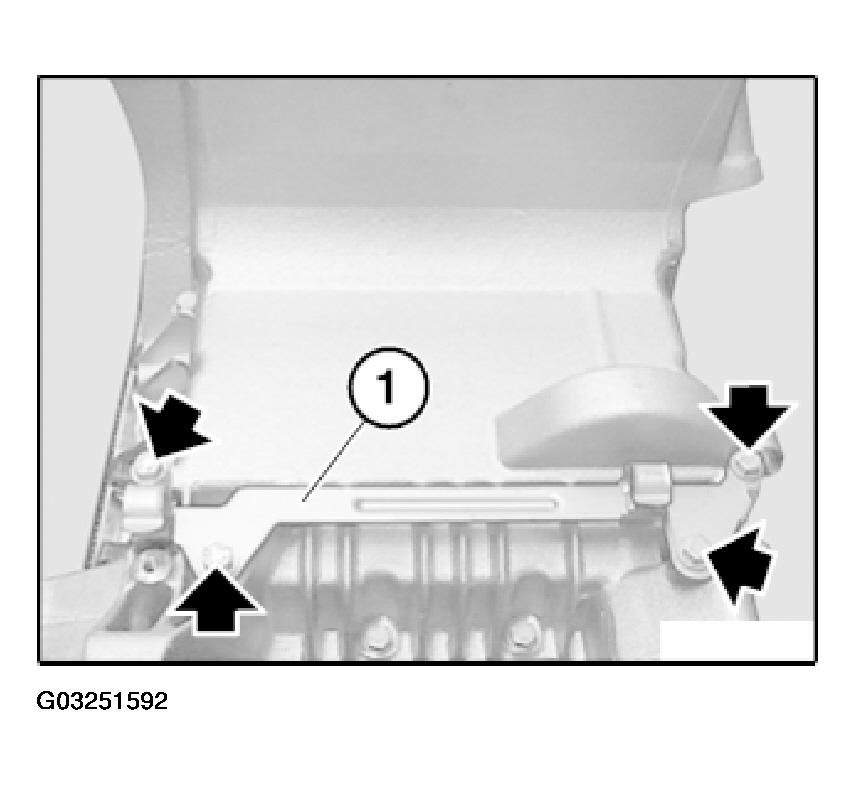

Remove cable guide (1) for positive lead.

Fig 7: Removing Cable Guide For Positive Lead

Courtesy of BMW OF NORTH AMERICA, INC.

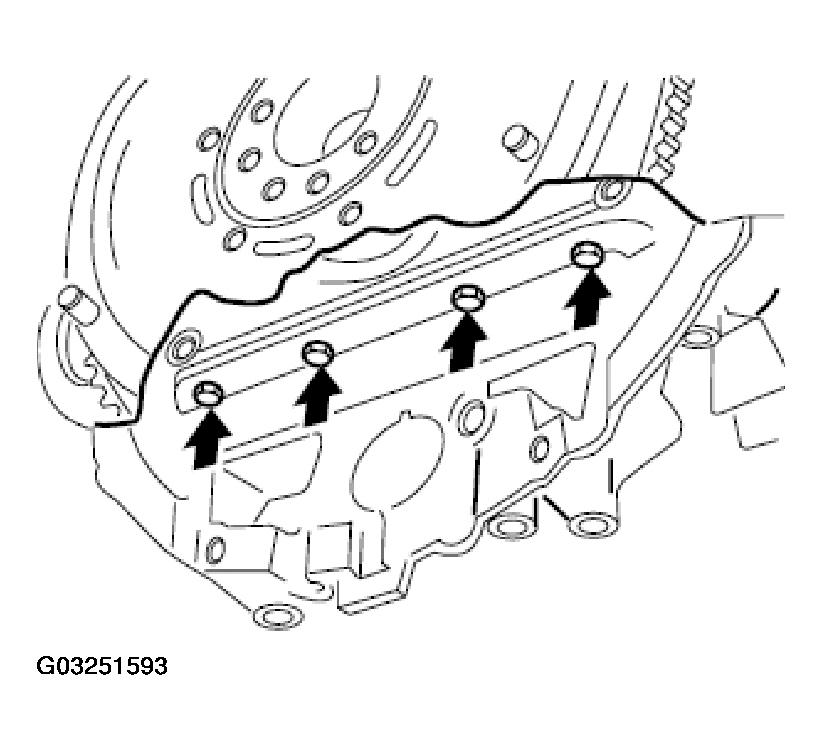

Unfasten screws to sealing cover.

Fig 8: Unfastening Screws To Sealing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten remaining screws from oil sump.

Remove upper oil sump section towards rear.

Sealing faces clean and free of seal debris.

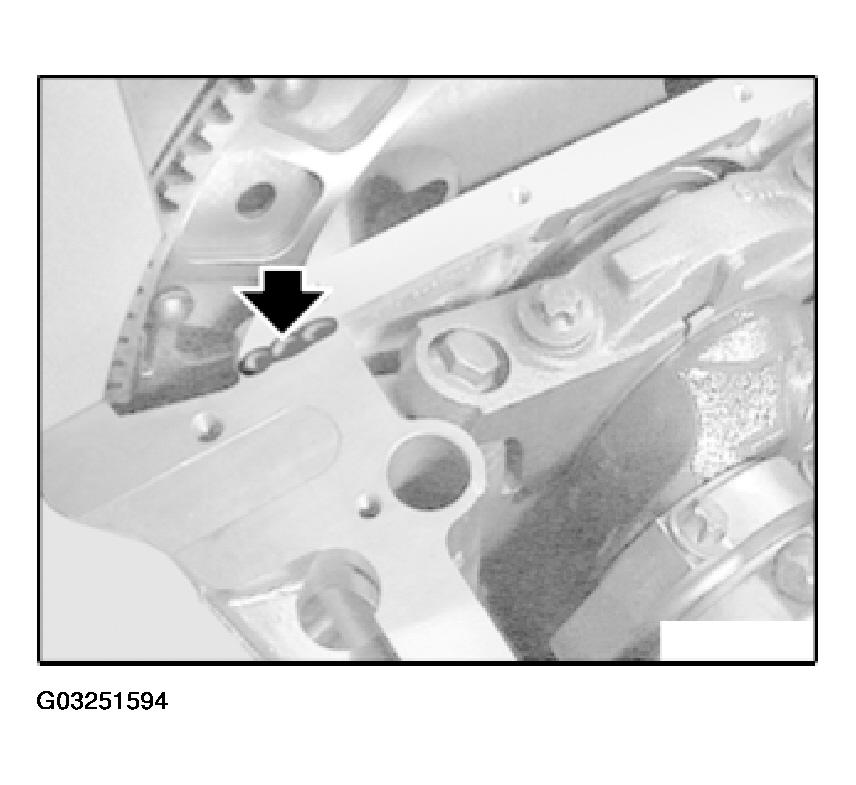

Coat engine block at gap to end cover and to timing case cover with Drei Bond 1209 sealing compound.

Fig 9: Coating Engine Block At Gap

Courtesy of BMW OF NORTH AMERICA, INC.
