11 62 060 Removing and installing/replacing left exhaust manifold (M62/N62): Installation

WARNING: This page is about a different variant/trim than selected.

Replace seals.

Beads of seals face the exhaust manifold.

Coat thread with copper paste.

Replace nuts.

Tightening torque, see 11 62 1AZ in ENGINE - TIGHTENING TORQUES .

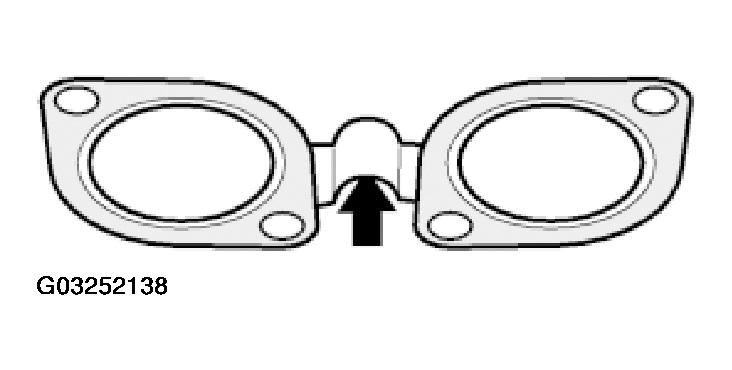

Fig 1: Identifying Exhaust Manifold Seals

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check exhaust system for leaks.
