11 12 719 Milling down cylinder head gasketing face (M62)

WARNING: This page is about a different variant/trim than selected.

(Cylinder head dismantled)

Check flatness of cylinder head gasketing face with straightedge (standard).

Deviation max. 0.05 mm.

NOTE: Machine limit,
refer to ENGINE - TECHNICAL DATA - X5 .

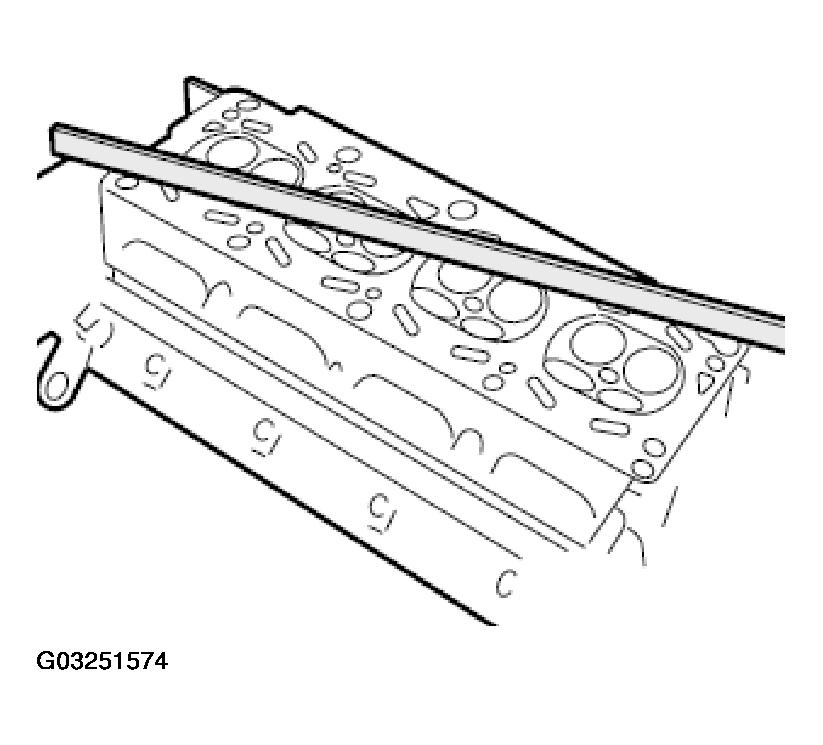

Fig 1: Checking Flatness Of Cylinder Head Gasketing Face With Straightedge

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: To compensate for compression, there is a repair cylinder head gasket.

NOTE: The repair cylinder head gasket is designated at the back with a bore beside the 4th or 8th cylinder.

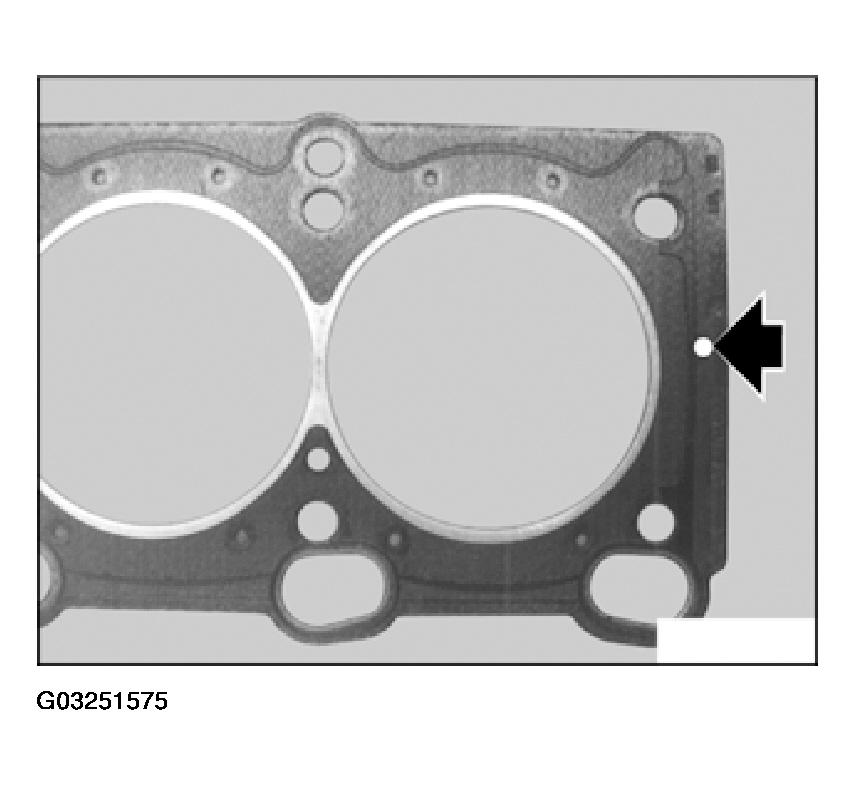

Fig 2: Locating Repair Cylinder Head Gasket Bore

Courtesy of BMW OF NORTH AMERICA, INC.
