11 12 004 Removing and installing/sealing both cylinder head covers (M62): Installation

WARNING: This page is about a different variant/trim than selected.

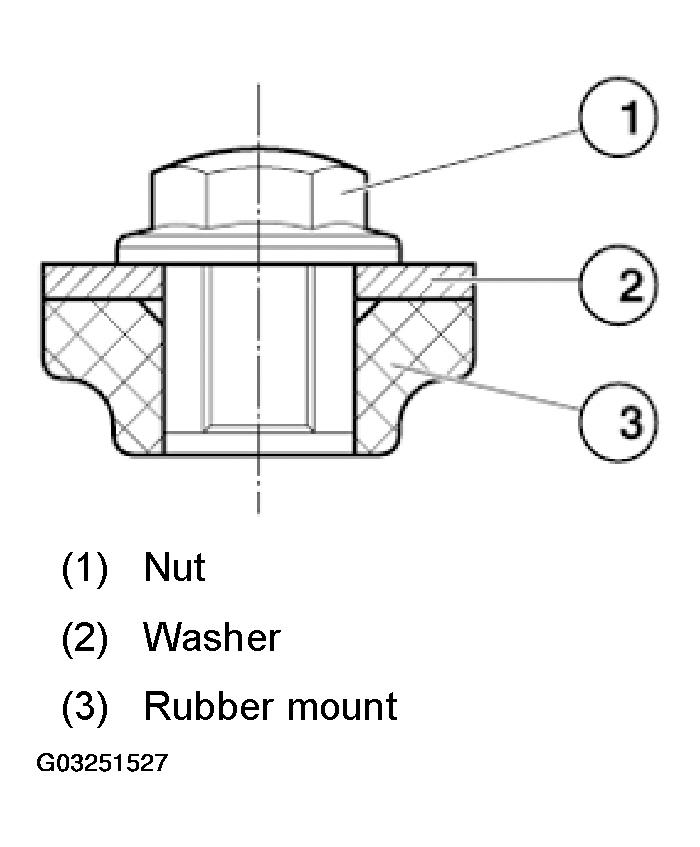

Layout of retaining elements:

  1. Nut
  2. Washer
  3. Rubber mount
    Fig 1: Layout Of Retaining Elements
    G03251527Courtesy of BMW OF NORTH AMERICA, INC.

Check seal, replace if necessary.

Coat outer and inner grooves and sealing face of cylinder head cover all round with anti-friction rubber coating, e.g. glycerine.

Press internal gasket into groove in cover without torsional stress, starting at the four corner radii.

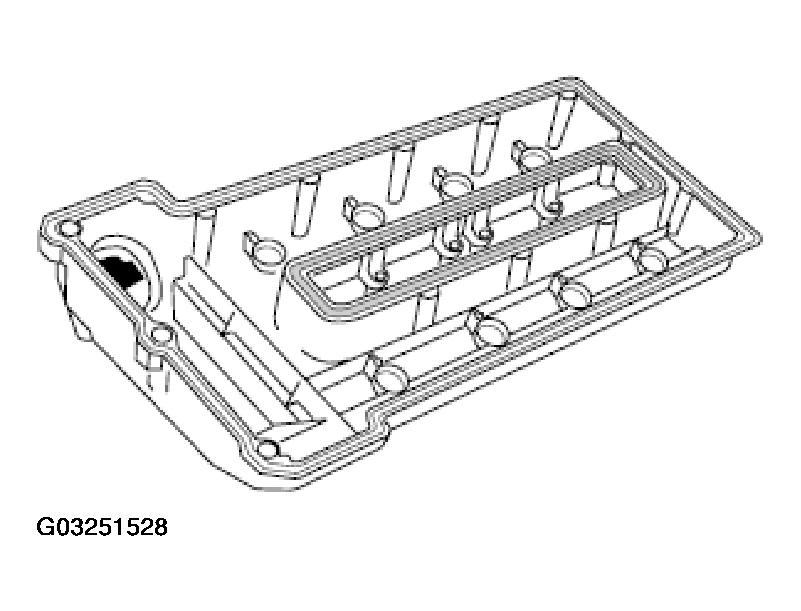

Fig 2: Installing Internal Gasket Into Groove In Cylinder Head Cover
G03251528Courtesy of BMW OF NORTH AMERICA, INC.

Align outer gasket loosely on groove in cover. Secure gasket in groove in cover, starting in the corner radii at the back (1) and locate without torsional stress in the groove.

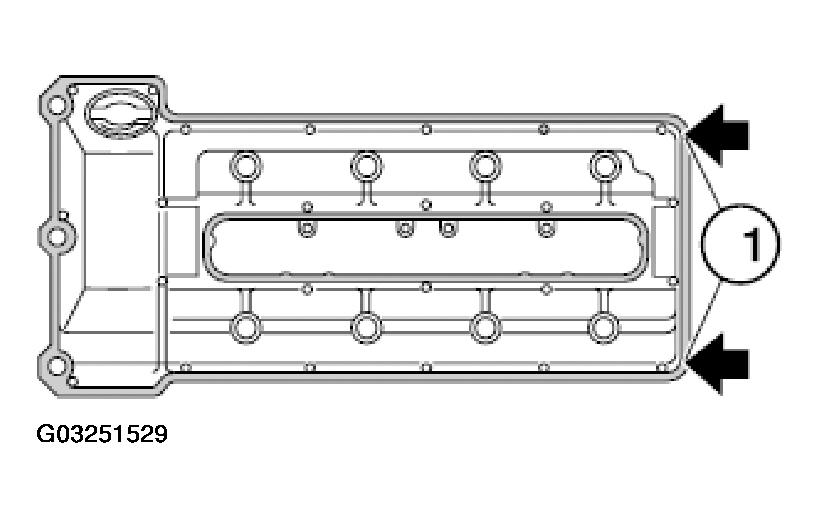

Fig 3: Identifying Corner Radii Starting Position
G03251529Courtesy of BMW OF NORTH AMERICA, INC.

Clean gasket residue from sealing surface.

Apply coat of Drei Bond 1209 to contact surfaces of joint.

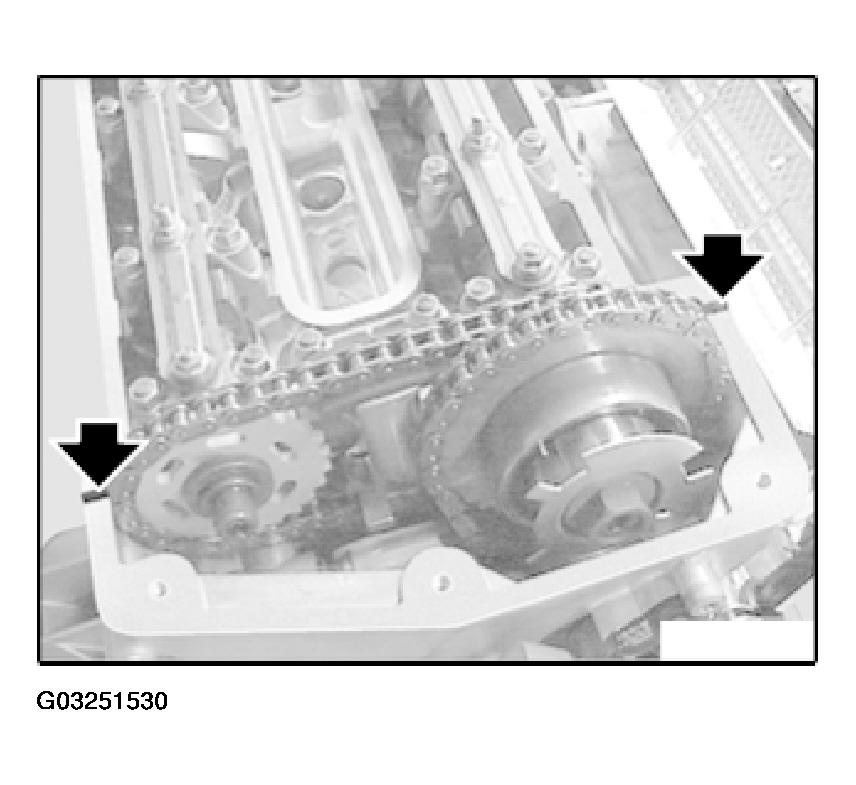

Fig 4: Identifying Contact Surfaces Of Joint
G03251530Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Illustration with engine removed.

Clean gasket residue from sealing surface.

Apply thin, uniform bead of Drei Bond 1209 to transmission area on half-moon sections.

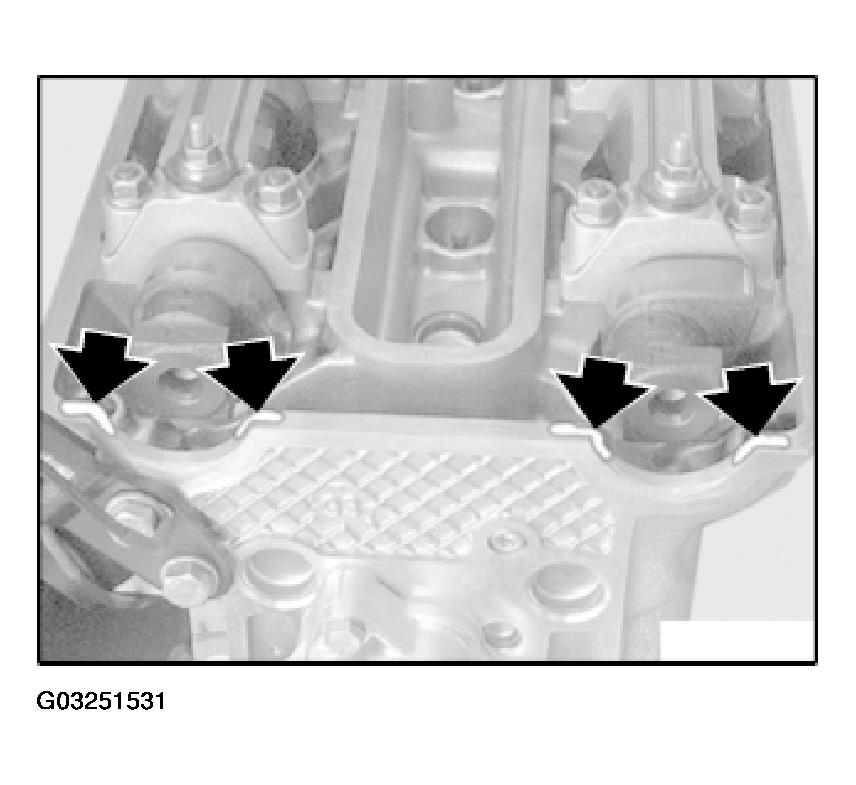

Fig 5: Identifying Transmission Area On Half-Moon Sections
G03251531Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Illustration with engine removed.

Check that side of gasket is correctly seated and check back of cylinder head.

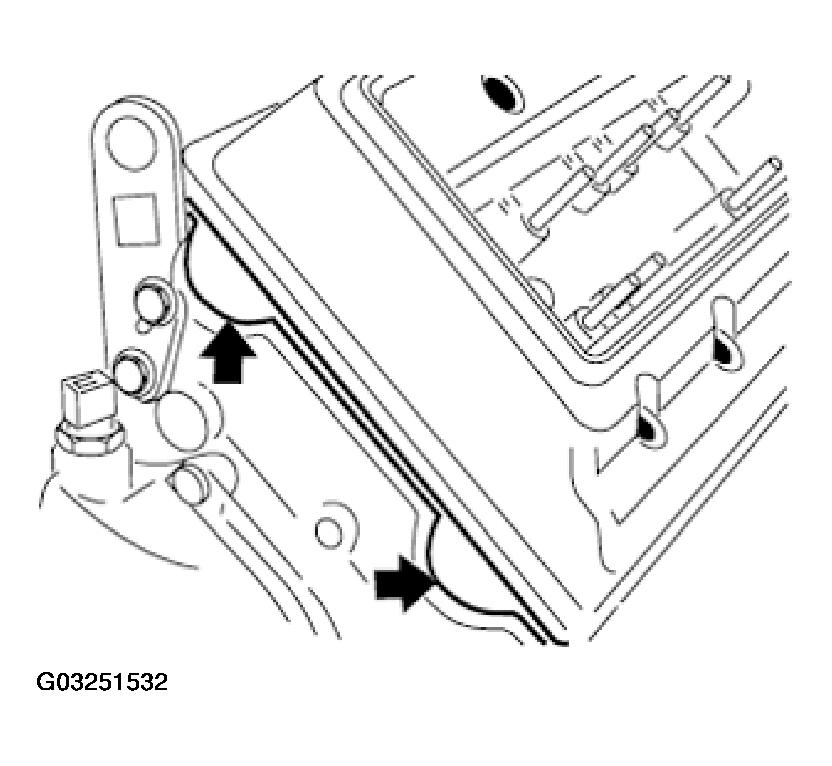

Fig 6: Checking Side Of Cylinder Head Gasket
G03251532Courtesy of BMW OF NORTH AMERICA, INC.

Screw two retaining elements to the locating points, without preload at this stage, and align the cover. Install all other retaining elements and tighten crosswise from inside to outside.

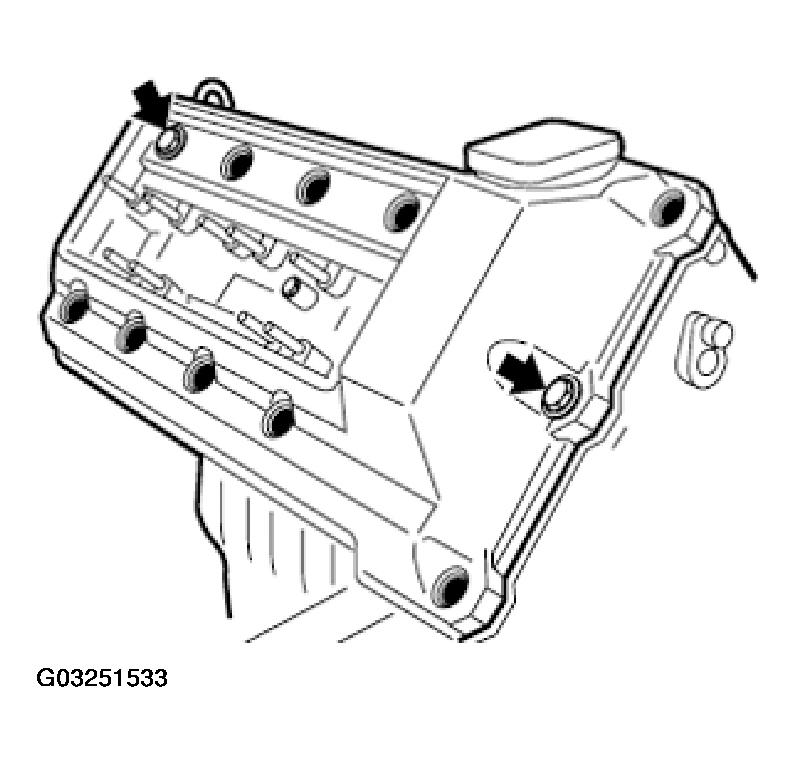

Fig 7: Identifying Points For Screwing Retaining Elements
G03251533Courtesy of BMW OF NORTH AMERICA, INC.
