Removal & Installation

WARNING: This page is about a different car, the 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Insert Plastic Wedge (00 9 323) on both sides of passenger-side air bag cover, release catches, lift cover up and place on instrument panel. See Fig 1. Disconnect Orange passenger-side air bag module harness connector. Remove air bag module retaining nuts and remove air bag module from instrument panel. Remove air bag cover and cover bracket.
  3. To install, reverse removal procedure. Be careful not to pinch wiring harness. Tighten passenger-side air bag module retaining nuts to specification. See TORQUE SPECIFICATIONS . Activate air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .

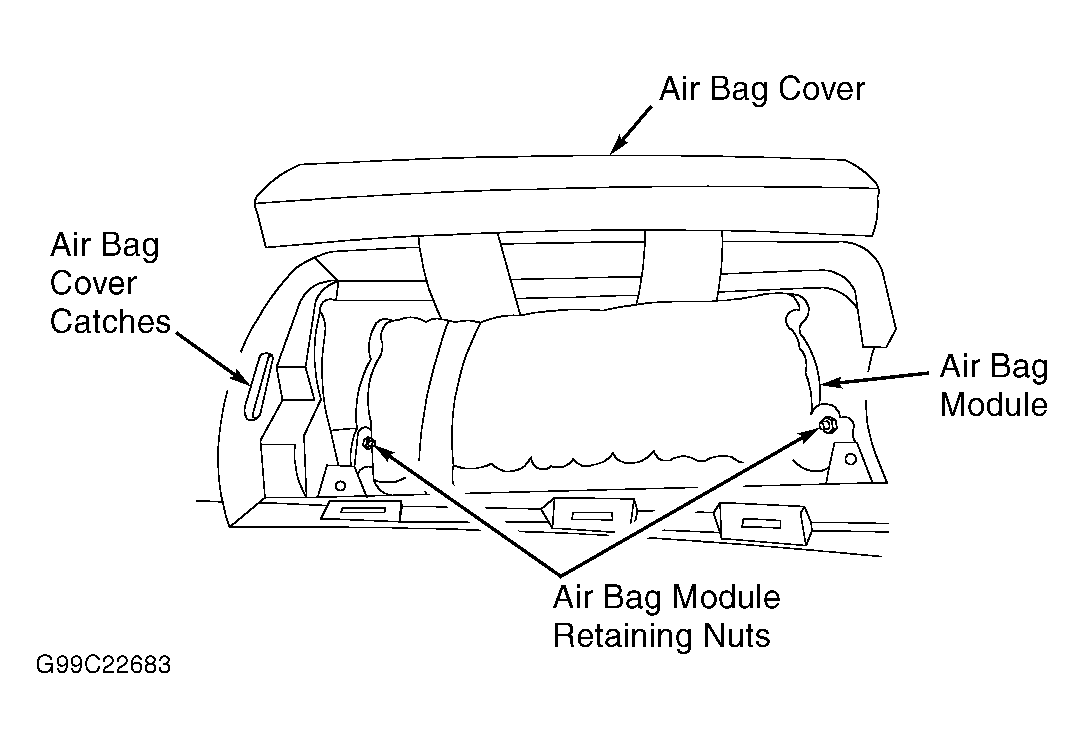

Fig 1: Removing Passenger Air Bag Module
G99C22683Courtesy of BMW OF NORTH AMERICA, INC.
