67 16 011 Removing and installing/replacing left headlight vertical aim adjuster (xenon headlight)

Necessary Preliminary Tasks:

Up To 10/2003:

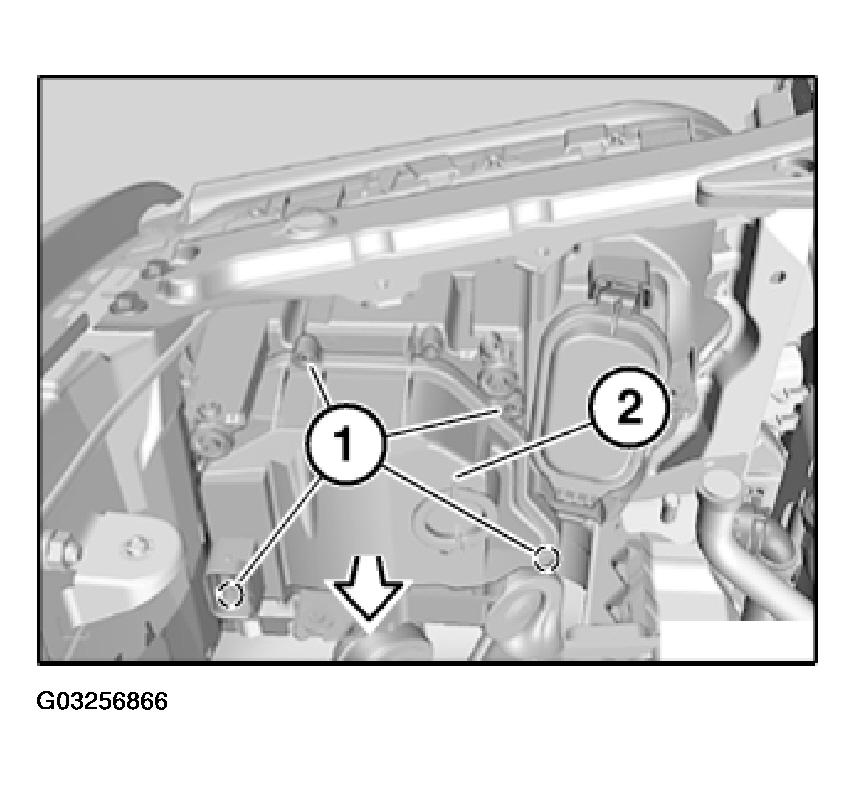

NOTE: For purposes of clarity, illustration shows component removed.

Release screws (1) and remove protective cap (2).

Installation:

If necessary, replace seal of protective cap (2).

Fig 1: Identifying Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

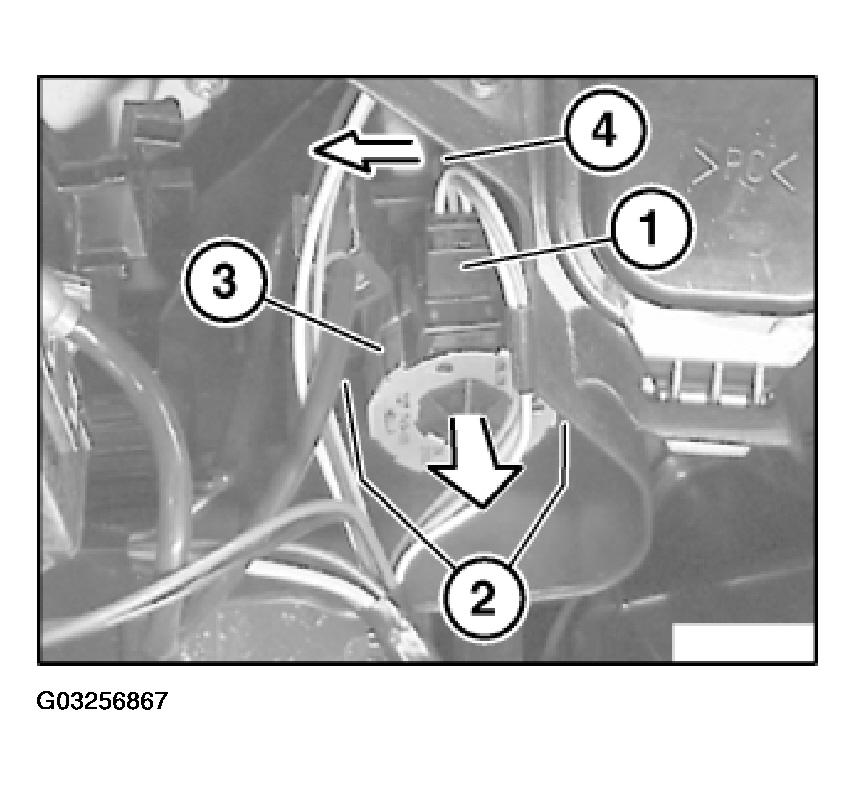

Disconnect plug connection (1).

Loosen screws (2).

Feed out headlight vertical aim adjuster (3) in direction of arrow and pull out.

Fig 2: Locating Headlight Vertical Aim Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

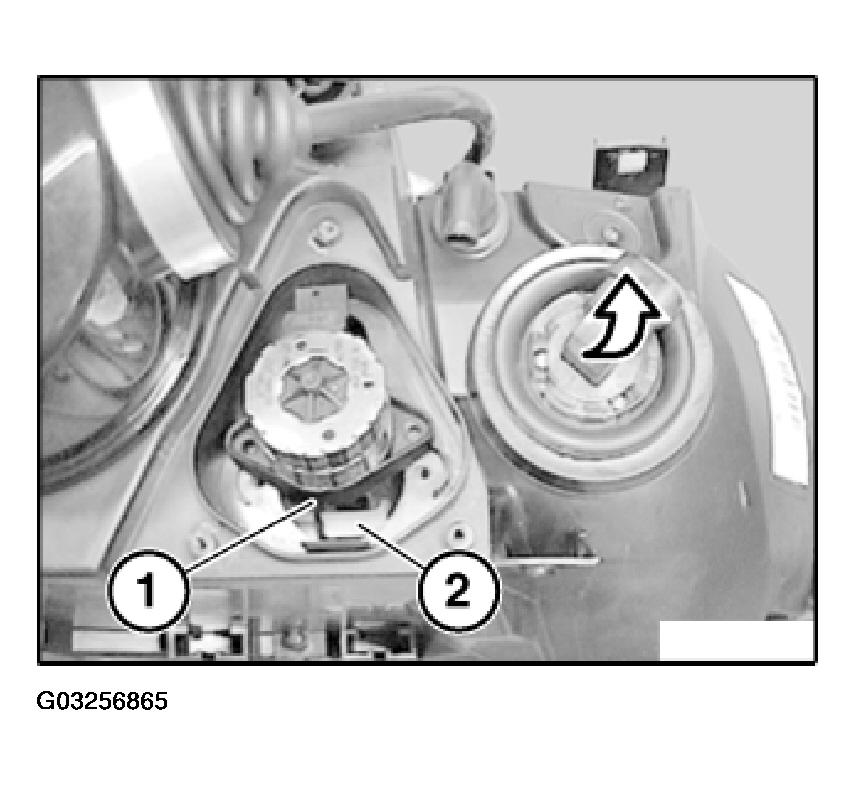

Pull out bulb holder of high-beam headlight.

Feed ball head (1) of headlight vertical aim adjuster into guide (2).

Fig 3: Removing High-Beam Headlight Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

From 10/2003:

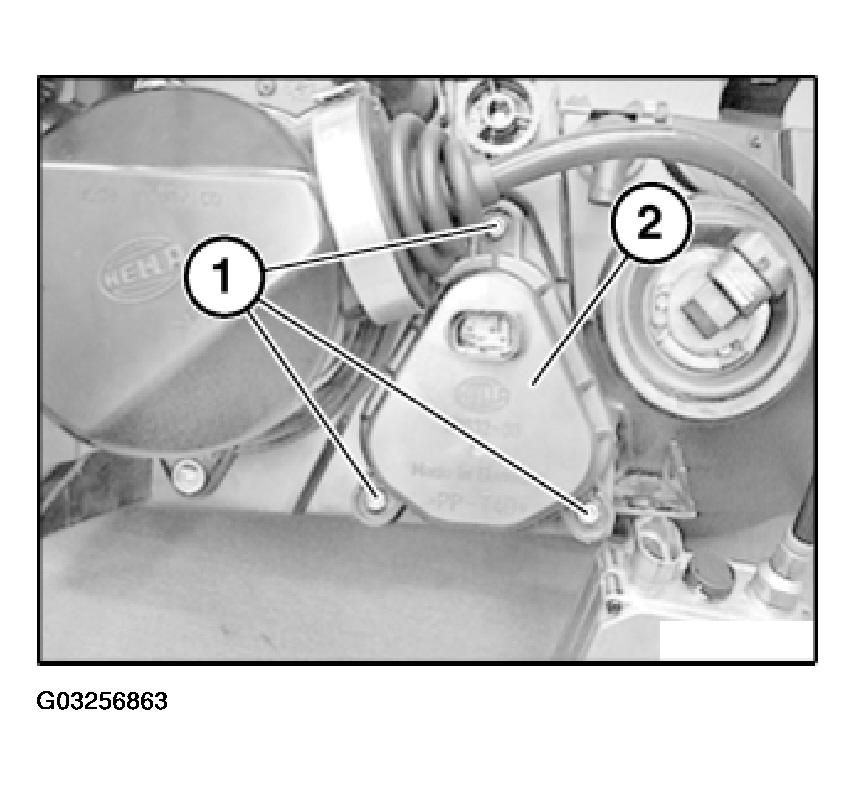

Release screws (1) and remove cover (2) in direction of arrow.

Installation:

Make sure seal of cover (2) is correctly seated.

Fig 4: Removing Cover And Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

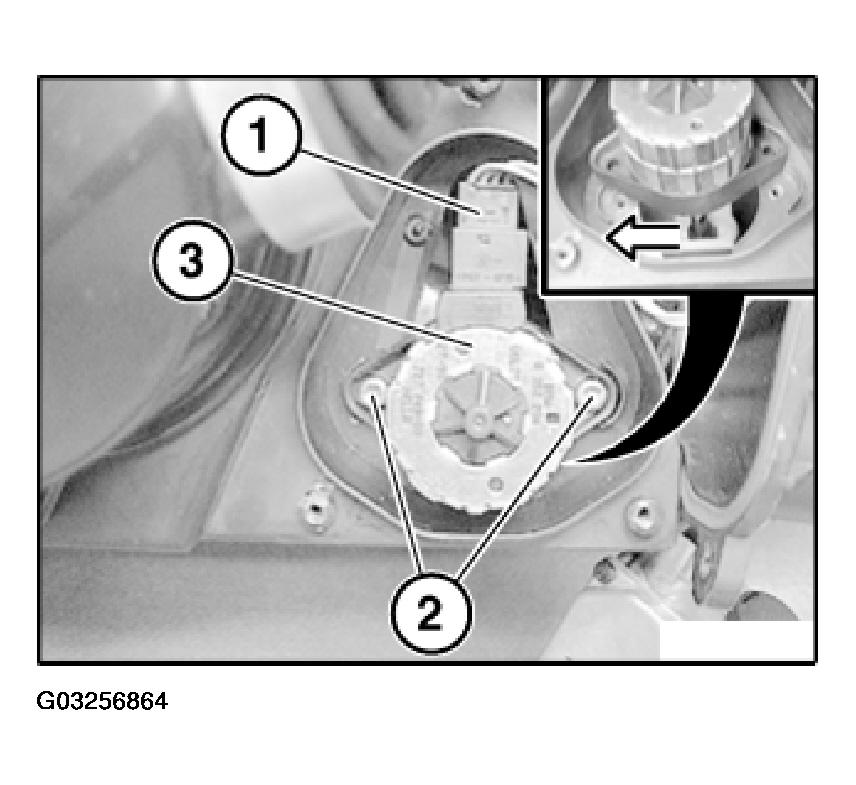

Disconnect plug connection (1).

Loosen screws (2).

Feed headlight vertical aim adjuster (3) with ball head (4) in direction of arrow out of associated fixture and pull out.

Installation:

Make sure ball head (4) is correctly seated in associated fixture.

Fig 5: Removing Headlight Vertical Aim Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.

All:

Installation:
