Minimum set: Measuring and testing equipment

NOTE: For measuring secondary voltage in breakerless ignition distribution system

Engine: M42, M43, M43TU, M44, M50, M52, M60, M62

Storage location: K 104

SI number: 2 06 92(548)

Order number: 12 7 040

Set of adapters

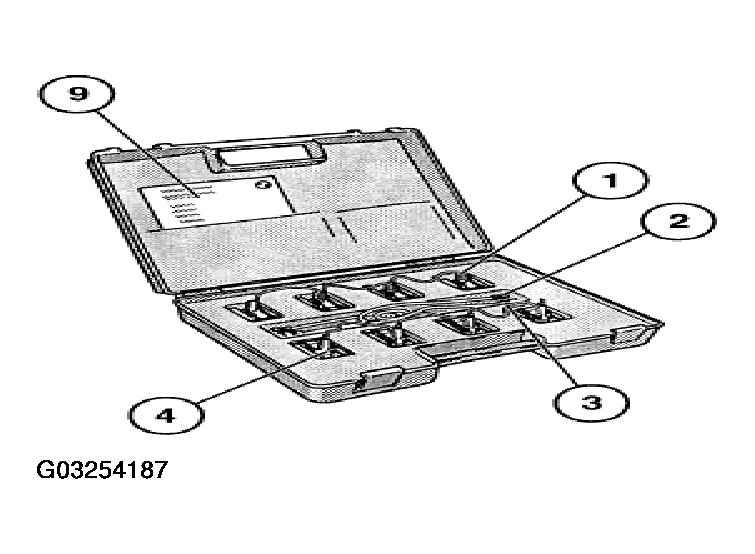

Fig 1: Identifying 12 7 040 Set Of Adapters

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

12 7 041 Single adapter (8 x)

12 7 042 Connection cable

NOTE: BMW SERVICE TESTER

12 7 043 Set of connecting leads

NOTE: Consisting of 7 individual leads

12 7 045 Set of clips (8 x)

NOTE: For compact ignition coils - Engine: M43, M44

12 7 049 Handbook

12 7 046 Adapter plate

NOTE: For recording secondary voltage on 4-cylinder engines with an ignition coil block
