12 72 520 Removing and installing/replacing pedal travel sensor (M62, M54)

Refer to 13 00 002 CHECKING FUNCTION OF DIGITAL ENGINE .

Switch off ignition.

Carefully press down locking lug (1) and pull out accelerator pedal module (2) at side.

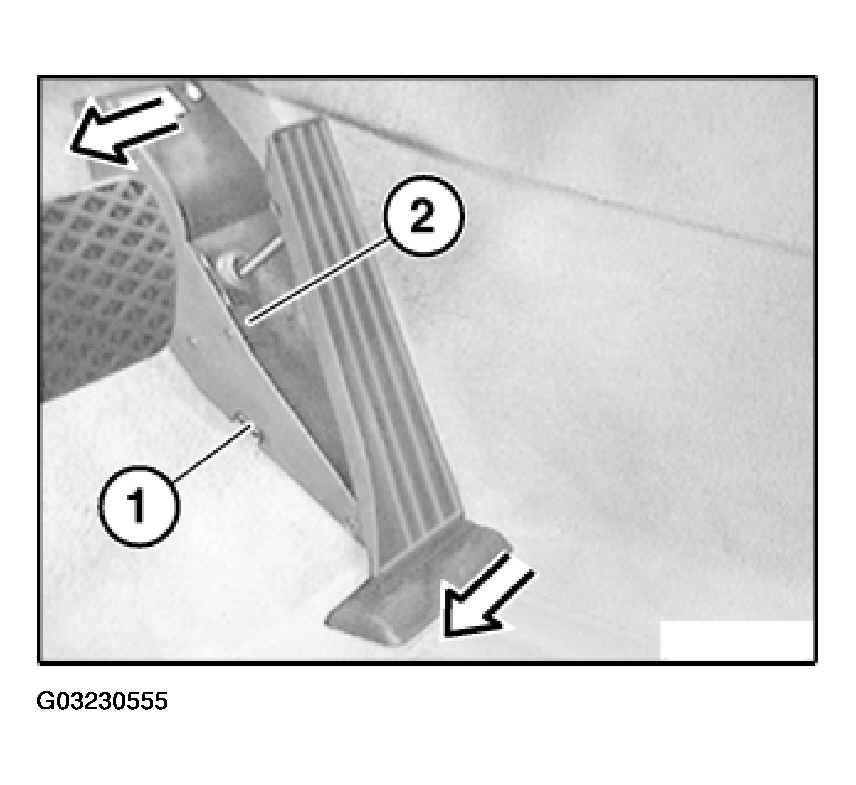

Fig 1: Locating Locking Lug

Courtesy of BMW OF NORTH AMERICA, INC.

Detach plug (1) from accelerator pedal module (2).

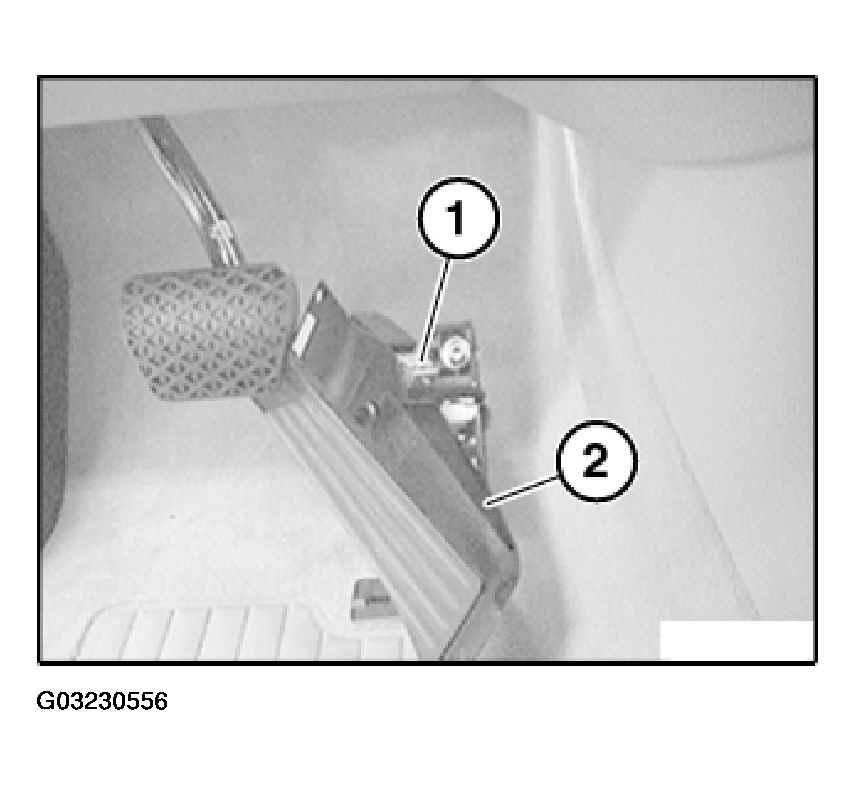

Fig 2: Detaching Plug From Accelerator Pedal Module

Courtesy of BMW OF NORTH AMERICA, INC.
