12 14 550 Replacing control unit (Digital Motor Electronics) (M62, M54)

Connect DIS Tester or MoDiC.

CAUTION: Follow instructions for removing and installing electronic control units. Refer to 12 00 ... INSTRUCTIONS FOR REMOVING AND INSTALLING ELECTRONIC CONTROL UNITS .

Read fault memory.

Switch off ignition.

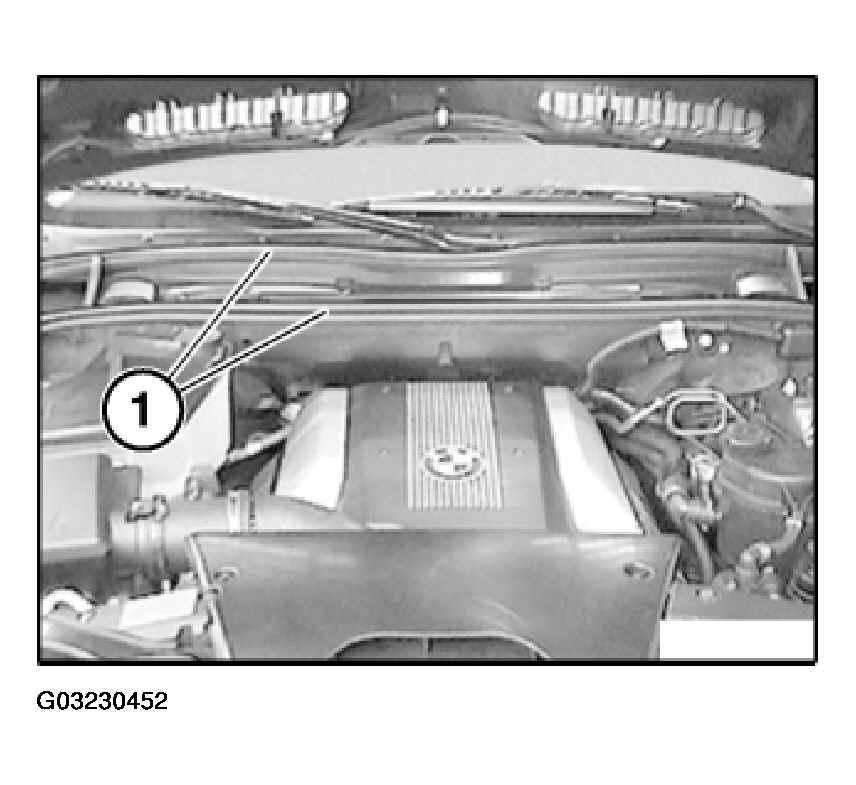

Detach sealing strips (1).

Fig 1: Detaching Sealing Strips

Courtesy of BMW OF NORTH AMERICA, INC.

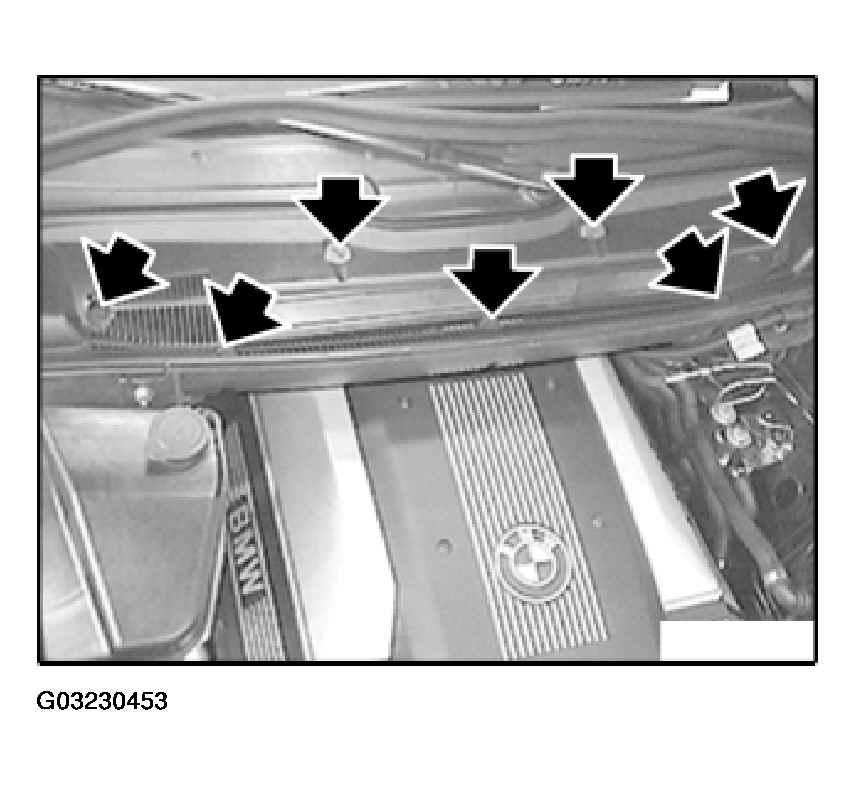

Turn tommy bar through approx. 90°.

Remove cover.

Fig 2: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

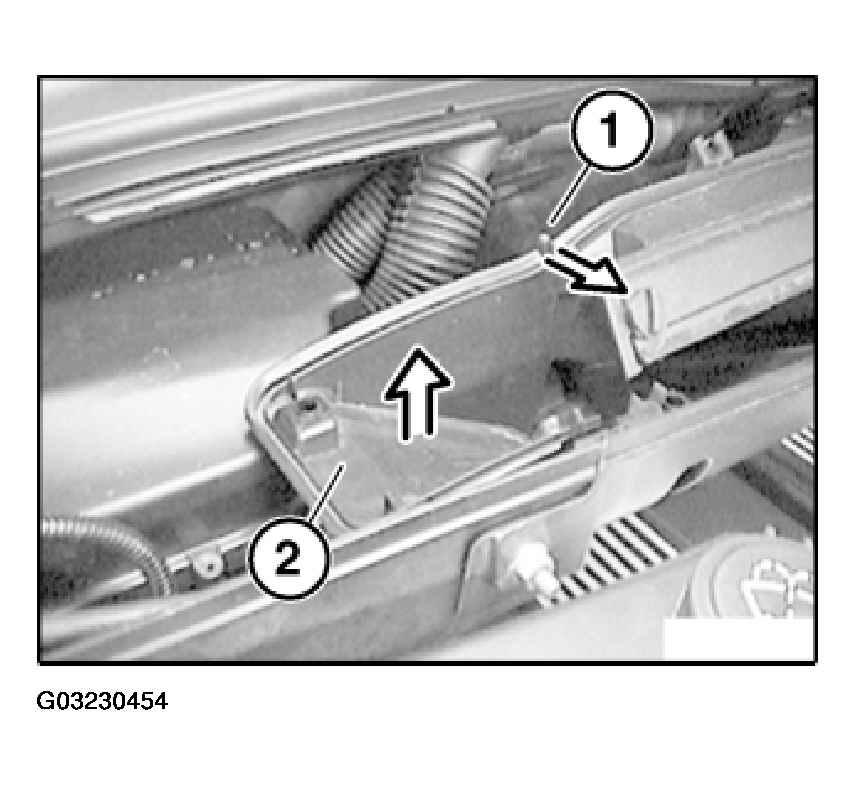

Release lock (1).

Remove air funnel (2) towards top.

Fig 3: Removing Air Funnel

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

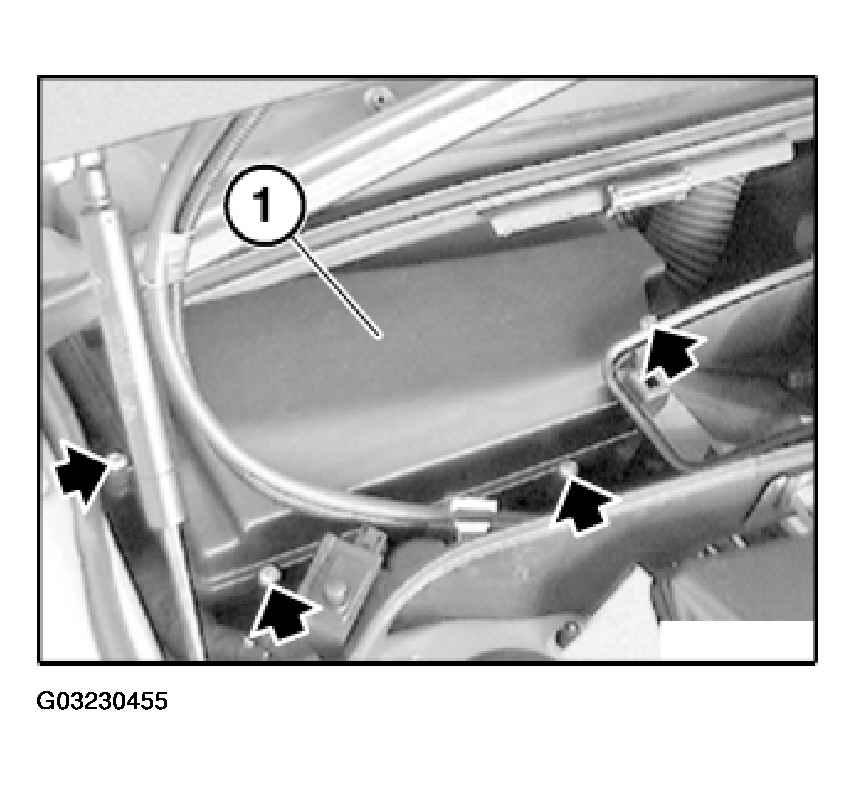

Remove cover (1) on control unit box.

Fig 4: Removing Control Unit Box Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

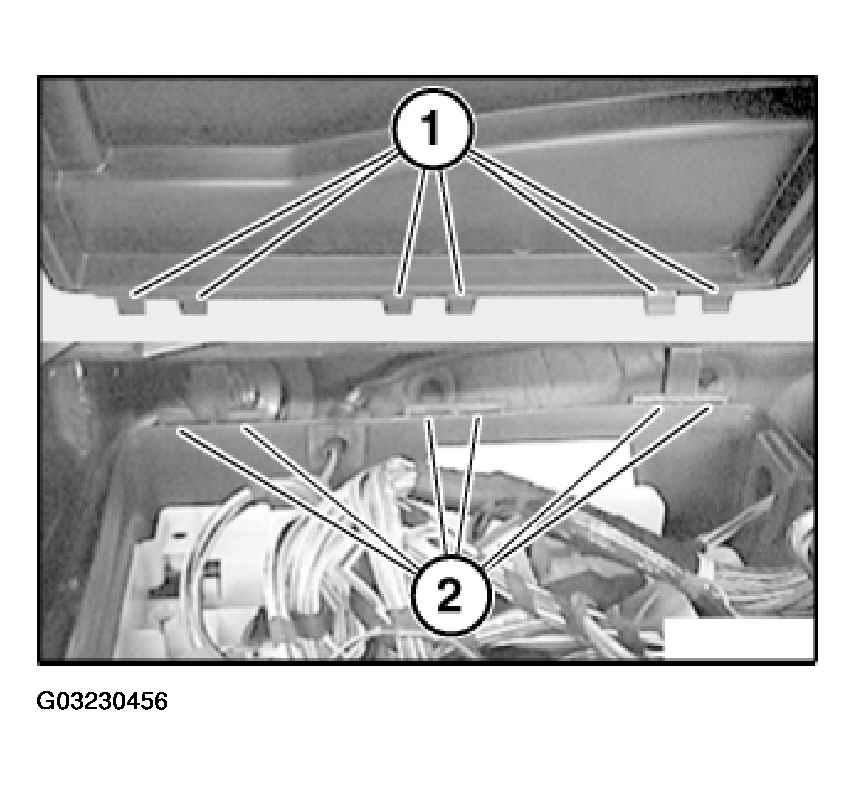

Insert fixtures (1) of cover for control unit box in openings (2).

Fig 5: Inserting Fixtures Of Cover For Control Unit Box In Openings

Courtesy of BMW OF NORTH AMERICA, INC.

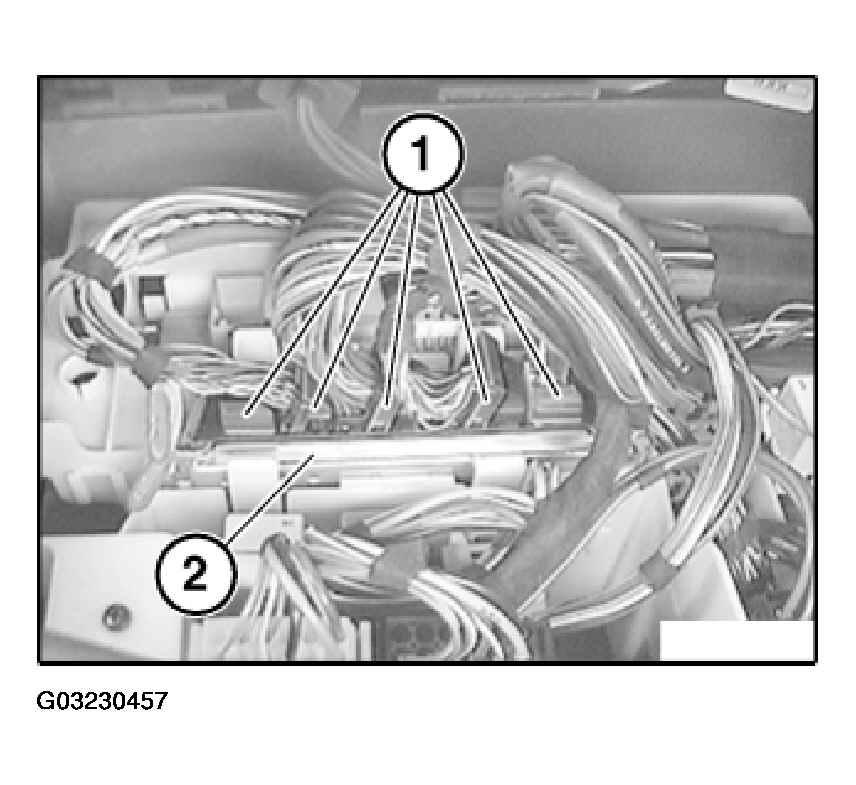

Disconnect plug connections (1).

Unlock DME control unit (2) and remove.

For subsequent procedure, follow instructions of DIS Tester.

Fig 6: Removing DME Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Interrogate fault memory of DME control module.

Check stored fault messages.

Rectify faults.

Then clear fault memory.
