51 21 090 Removing and installing/replacing door lock on left or right front door

NOTE: Close window on front door and open all other windows. Disconnect battery negative lead, refer to 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY . Remove door trim panel, refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL . Remove outside handle, refer to 51 21 170 REMOVING AND INSTALLING OR REPLACING OUTSIDE HANDLE FROM LEFT OR RIGHT FRONT DOOR .

Version with side airbag in front door:

CAUTION: Remove and install/replace airbag module on front left or right door:

For year model 1999 to 2000, refer to SIDE AIR BAG MODULE .
For year model 2001, refer to SIDE AIR BAG MODULE .
For year model 2002, refer to SIDE AIR BAG MODULE .
For year model 2003, refer to SIDE AIR BAG MODULE .

NOTE: To release or partially detach sound insulation, follow procedure in 51 48... REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN FRONT DOOR, LEFT OR RIGHT .

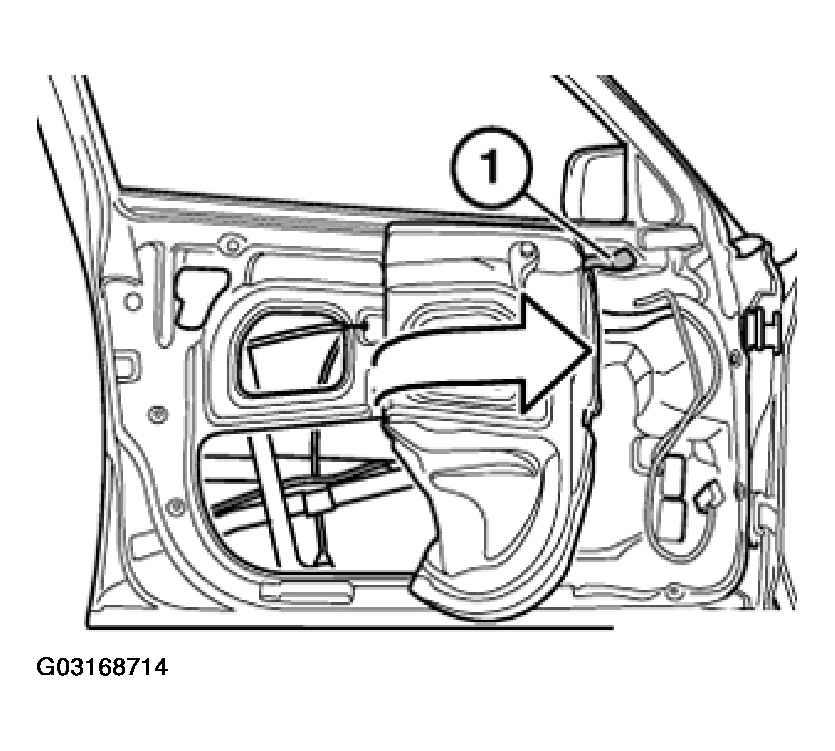

Partially detach sound insulation at rear and secure with adhesive tape (1).

Fig 1: Partially Detaching Sound Insulation At Rear

G03168714

Courtesy of BMW OF NORTH AMERICA, INC.

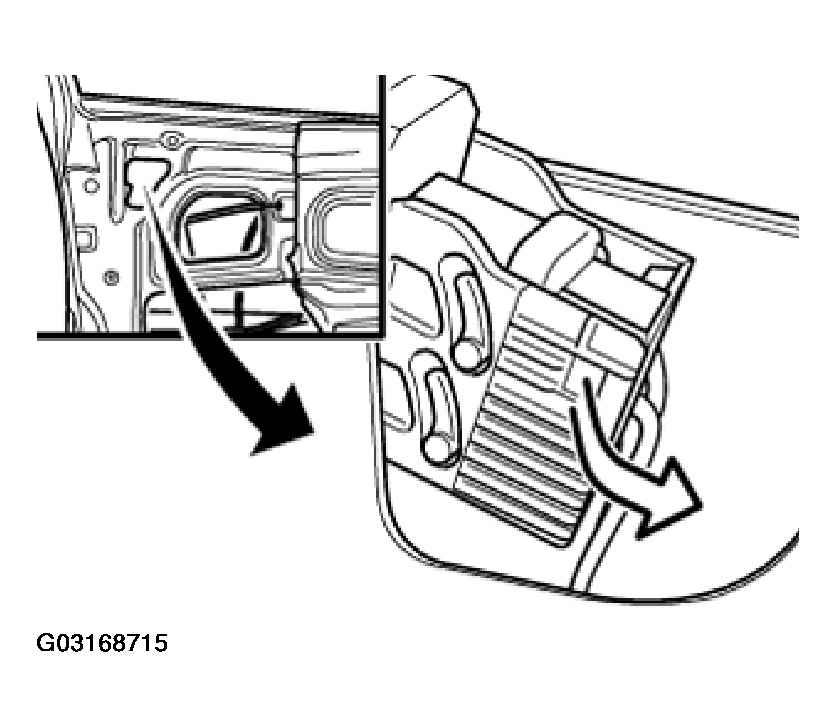

Remove connector (drive on door locking unit) by pulling downwards and backwards.

Fig 2: Removing Connector For Drive On Door Locking Unit

G03168715

Courtesy of BMW OF NORTH AMERICA, INC.

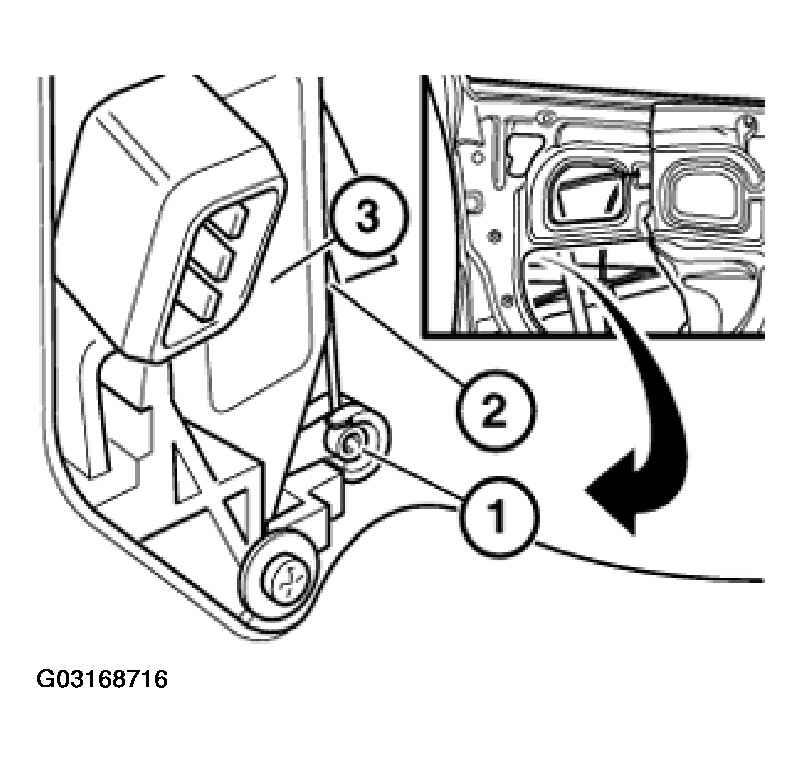

Disconnect Bowden cable nipple (1) and Bowden cable guide (2) from door lock (3).

Fig 3: Disconnecting Bowden Cable Nipple

G03168716

Courtesy of BMW OF NORTH AMERICA, INC.

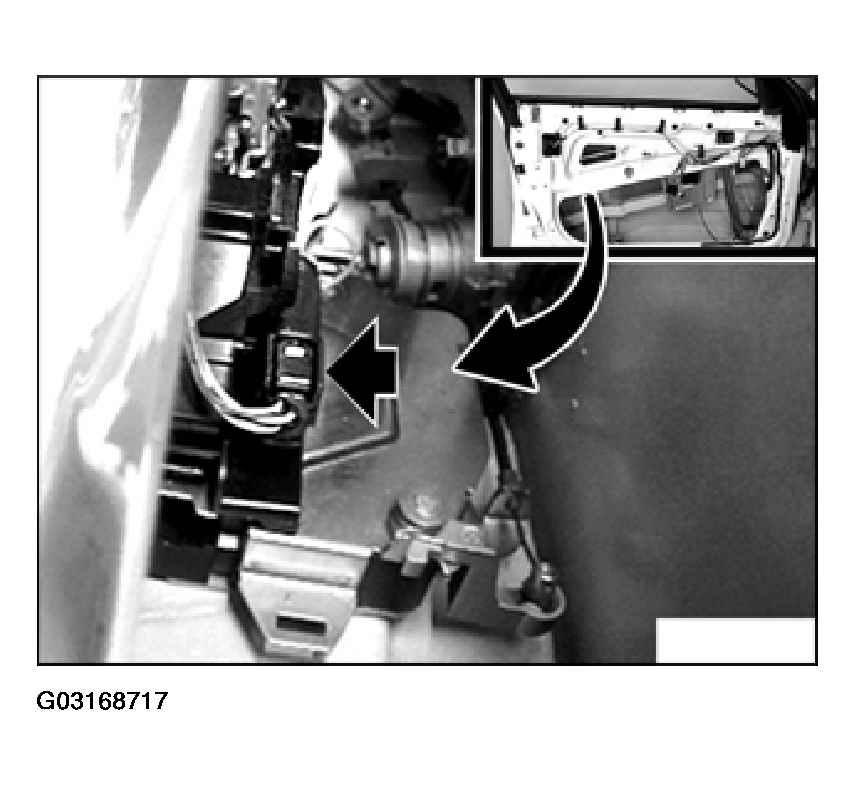

Unplug plug connection (micro-switch).

Fig 4: Unplugging Plug Connection (Micro-Switch)

G03168717

Courtesy of BMW OF NORTH AMERICA, INC.

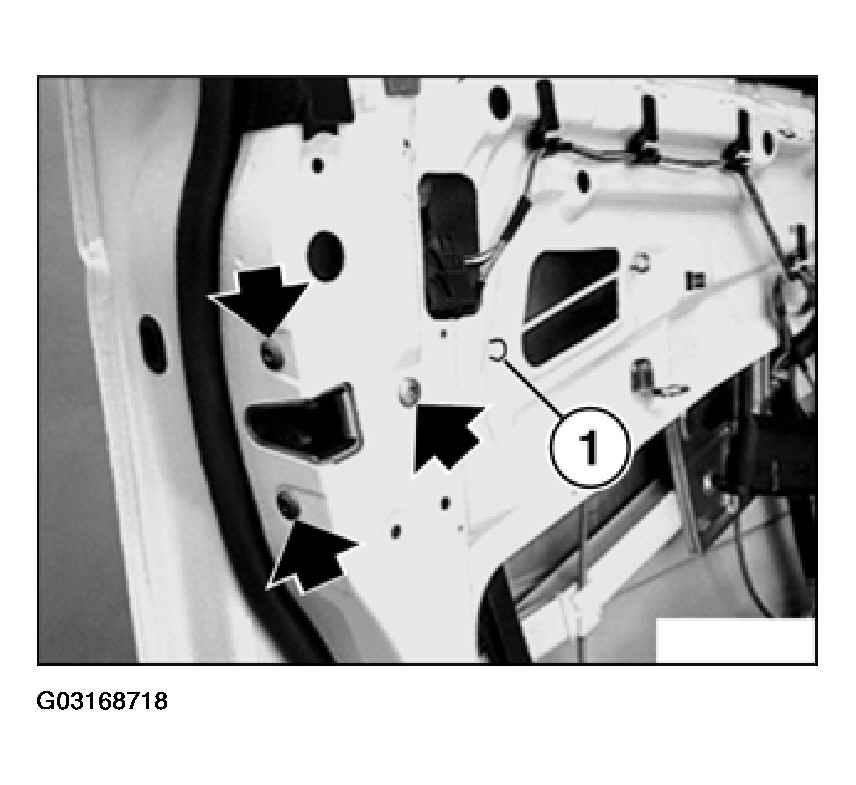

Unfasten clip (1) (Bowden cable on inside door handle).

Unfasten screws and pull door lock downwards to remove.

Fig 5: Unfastening Clip For Bowden Cable

G03168718

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

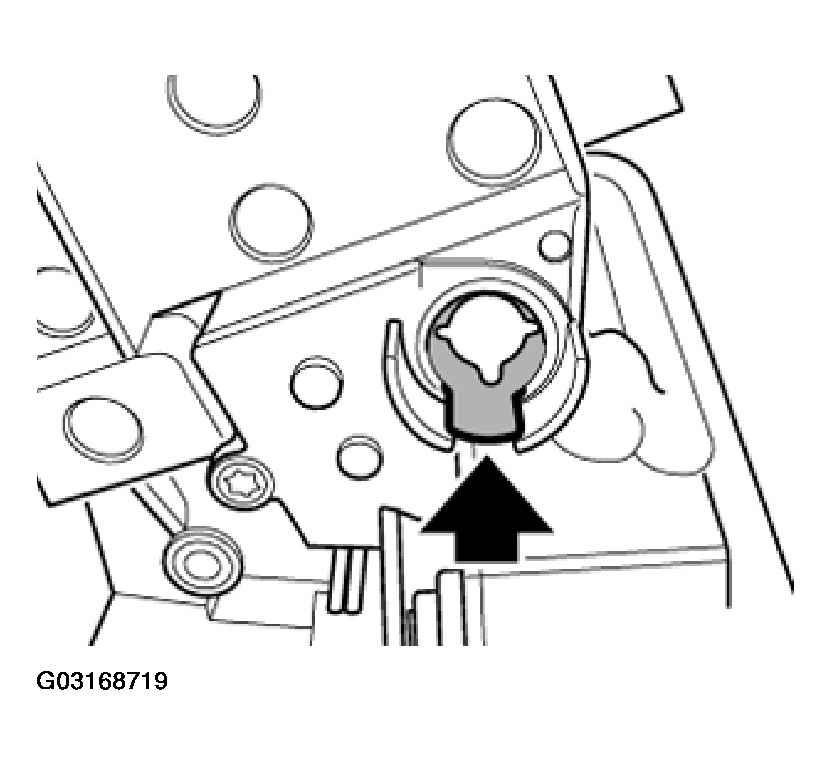

Lug on support (for paddle) must be located bottom center.

Fig 6: Aligning Lug On Support

G03168719

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

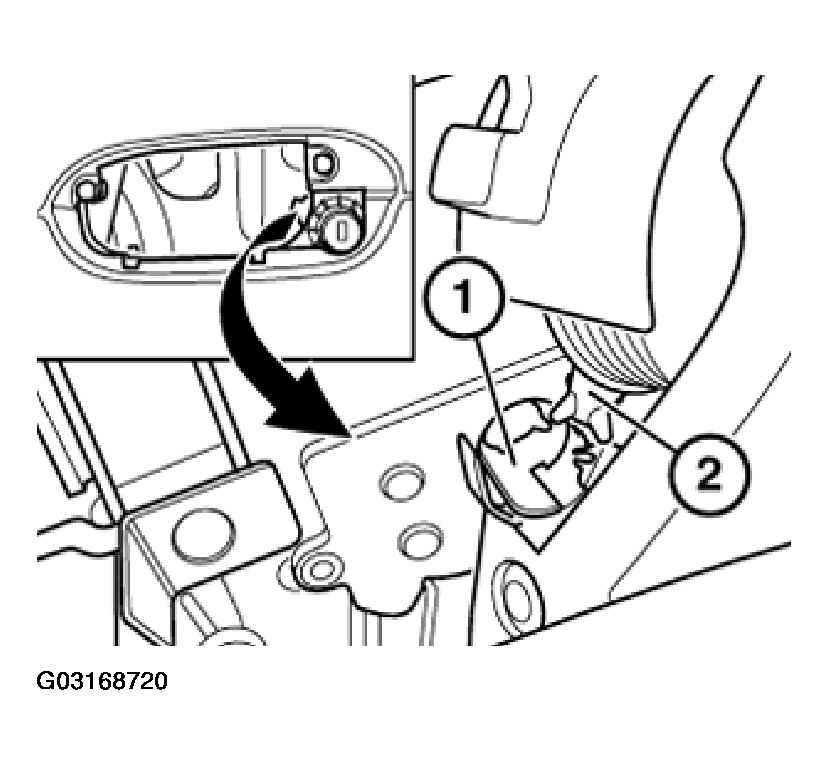

Carefully insert support (1) (for paddle) on door lock carefully upwards into paddle (2) (lock cylinder).

Fig 7: Inserting Support Into Paddle

G03168720

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

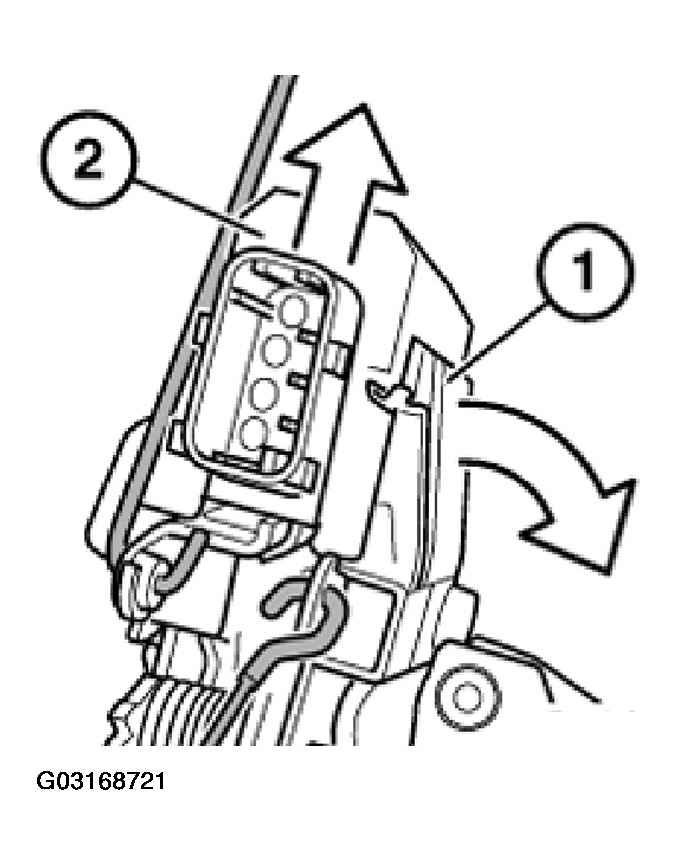

Lift out locking unit (1) and pull drive (2) (door locking unit) upwards from door lock.

Fig 8: Lifting Out Locking Unit

G03168721

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

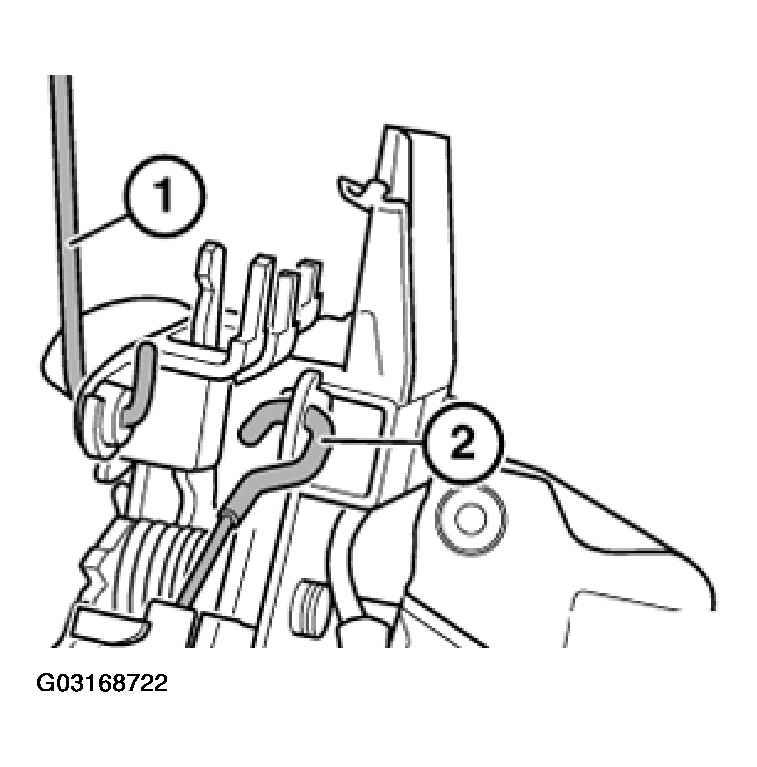

Disconnect rods (1) and (2).

Fig 9: Disconnecting Rods

G03168722

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

If necessary, unfasten screws.

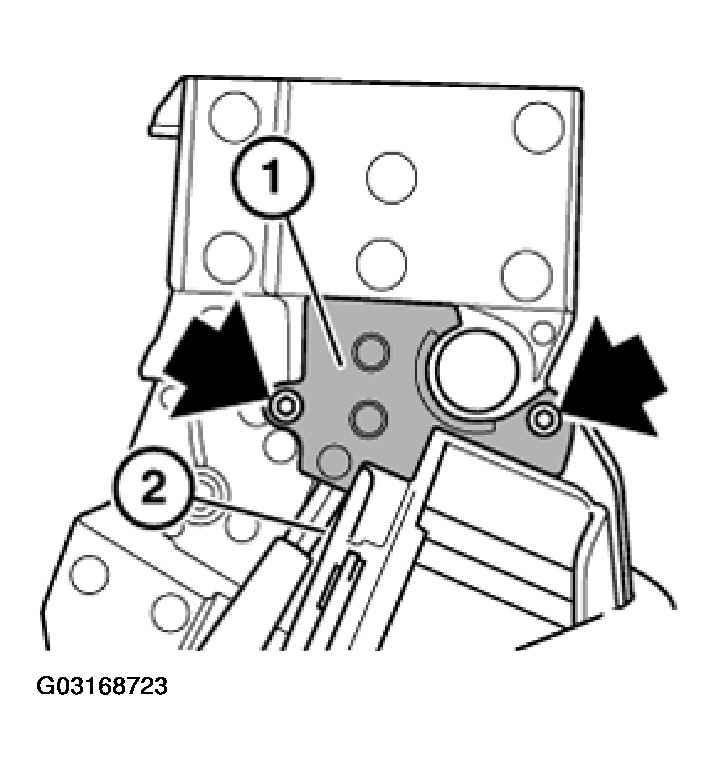

If necessary, remove retaining plate (1) and lift out micro-switch (2).

Fig 10: Removing Retaining Plate And Lifting Out Micro-Switch
