51 44 011 Removing and installing / replacing headliner (with slide/tilt sunroof)

Removing and installing all grab handles, refer to 51 16 480 REMOVING AND INSTALLING OR REPLACING FRONT GRAB HANDLE .

Removing and installing both trim sections for front roof pillar (A-pillar finishers), refer to 51 43 201 REMOVING AND INSTALLING OR REPLACING TRIM FOR FRONT LEFT OR RIGHT ROOF .

Remove both trim panels for door column (top) (B-column finishers) and suspend on belt, refer to 51 43 148 REMOVING AND INSTALLING OR REPLACING TRIM ON LEFT OR RIGHT DOOR COLUMN (TOP) .

Removing and installing both finishers for rear roof pillar (C-pillar finishers), refer to 51 43 251 REMOVING AND INSTALLING OR REPLACING TRIM FROM REAR LEFT OR RIGHT ROOF PILLAR .

Removing and installing rear seat, refer to 52 24 005 REMOVING AND INSTALLING / REPLACING REAR SEAT (NORMAL) .

Removing and installing slide/tilt sunroof cover, refer to 54 12 100 REMOVING AND INSTALLING SUN ROOF LID and/or 54 12 115 REMOVING AND INSTALLING GLASS SLIDING/TILTING SUNROOF LID .

Lift out both sun visors.

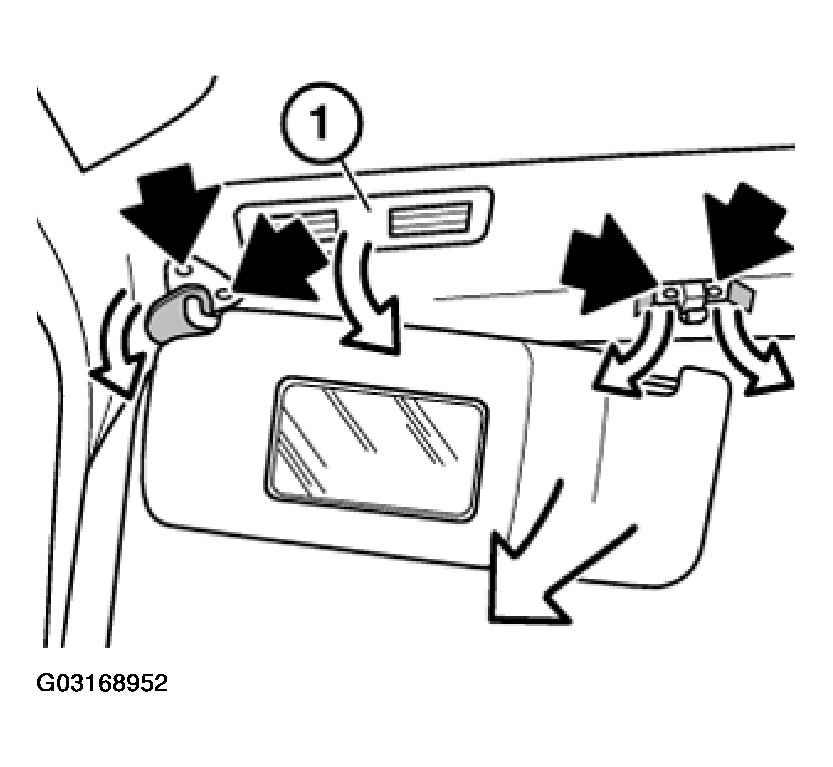

Lift out mirror lights (1) and pull off connector.

Fig 1: Lifting Out Mirror Lights And Pulling Off Connector
G03168952Courtesy of BMW OF NORTH AMERICA, INC.

Lift out finishers on counter support and joint and unfasten screws.

Pull out cable for mirror lighting somewhat and disconnect connector.

Installation:

Conduct function check of mirror lighting.

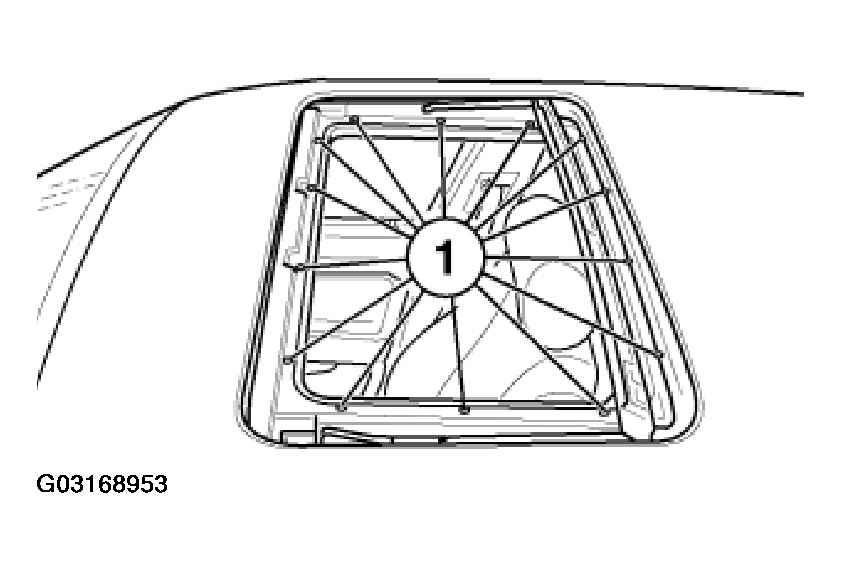

Unfasten screws (1) and remove cover frame.

Fig 2: Removing Cover Frame
G03168953Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

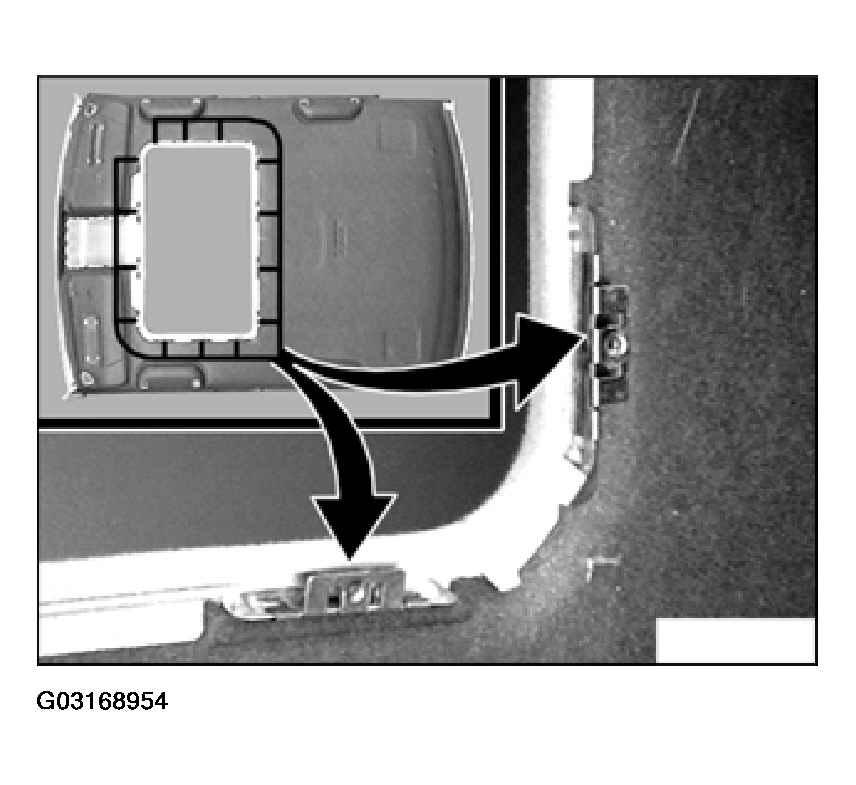

If necessary replace defective nuts.

Fig 3: Replacing Defective Nuts
G03168954Courtesy of BMW OF NORTH AMERICA, INC.

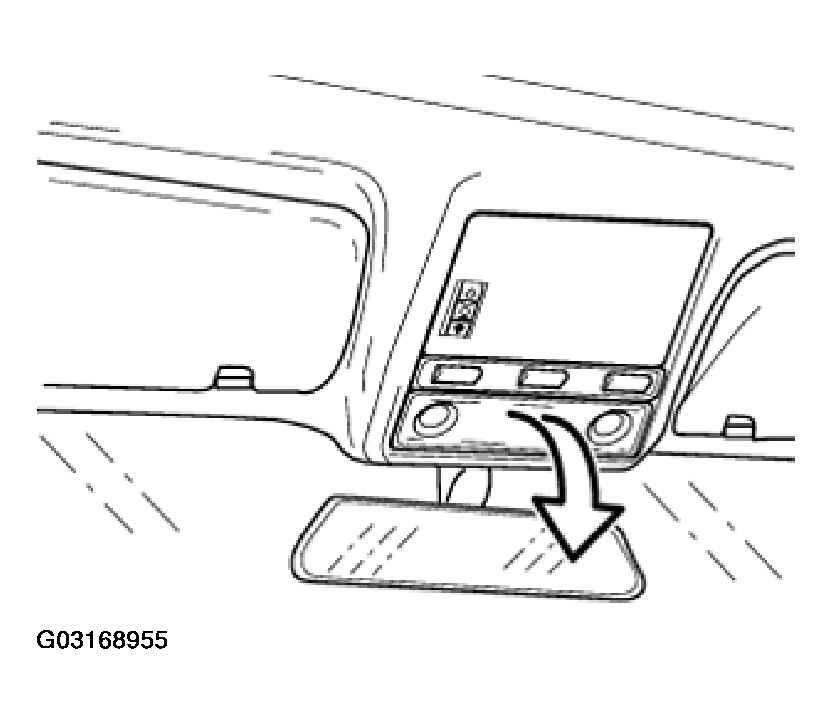

Lift out interior light and remove connector.

Fig 4: Lifting Out Interior Light And Removing Connector
G03168955Courtesy of BMW OF NORTH AMERICA, INC.

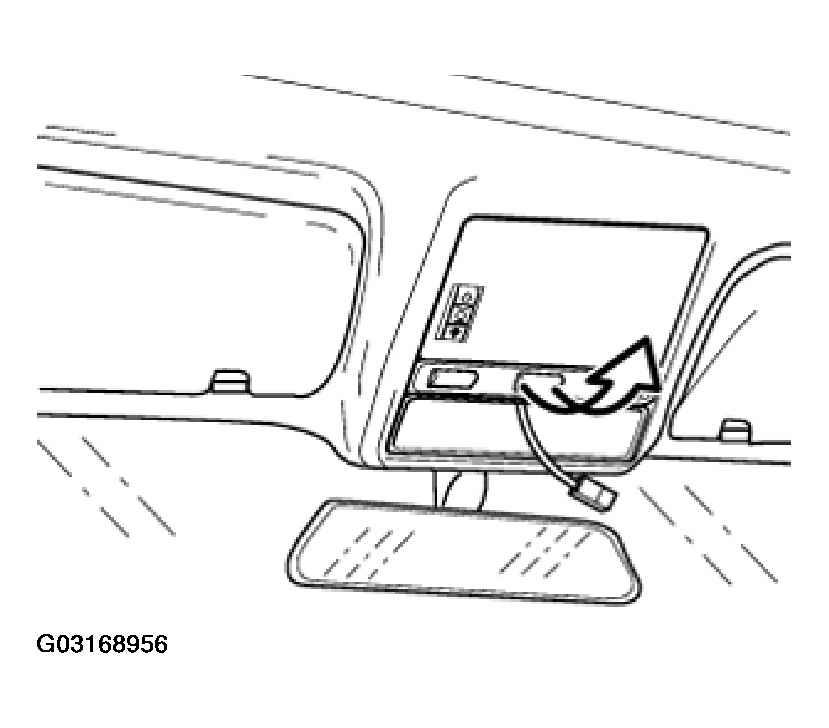

Lift out finisher and pull off connector.

Fig 5: Lifting Out Finisher And Pulling Off Connector
G03168956Courtesy of BMW OF NORTH AMERICA, INC.

Move both front seat backrests as far back as possible.

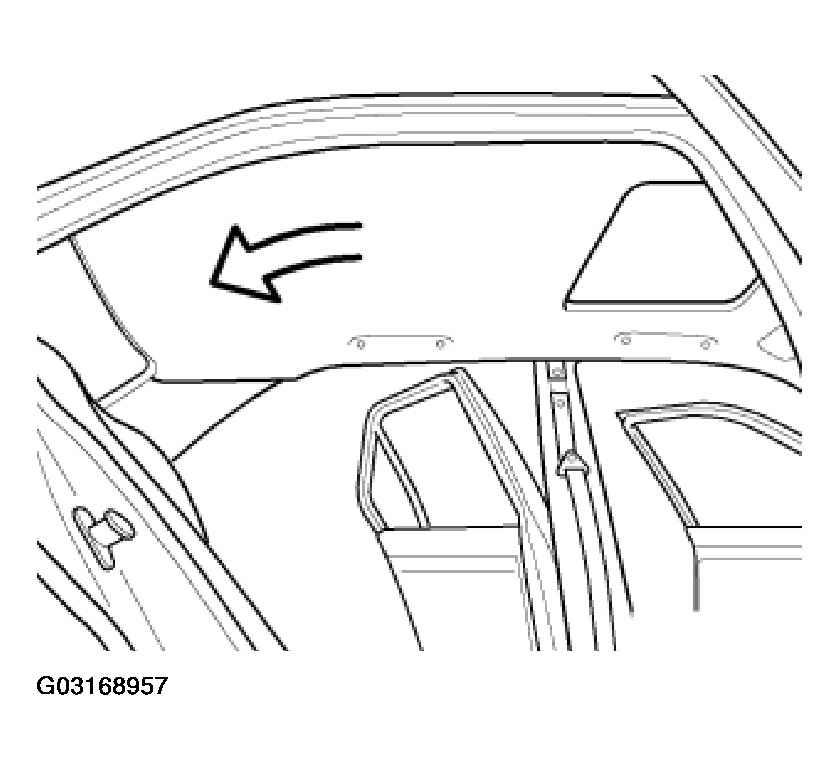

Pull headlining upwards out of sheet metal tabs and pull towards right rear door to remove.

Fig 6: Pulling Headlining Upwards Out Of Sheet Metal Tabs
G03168957Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

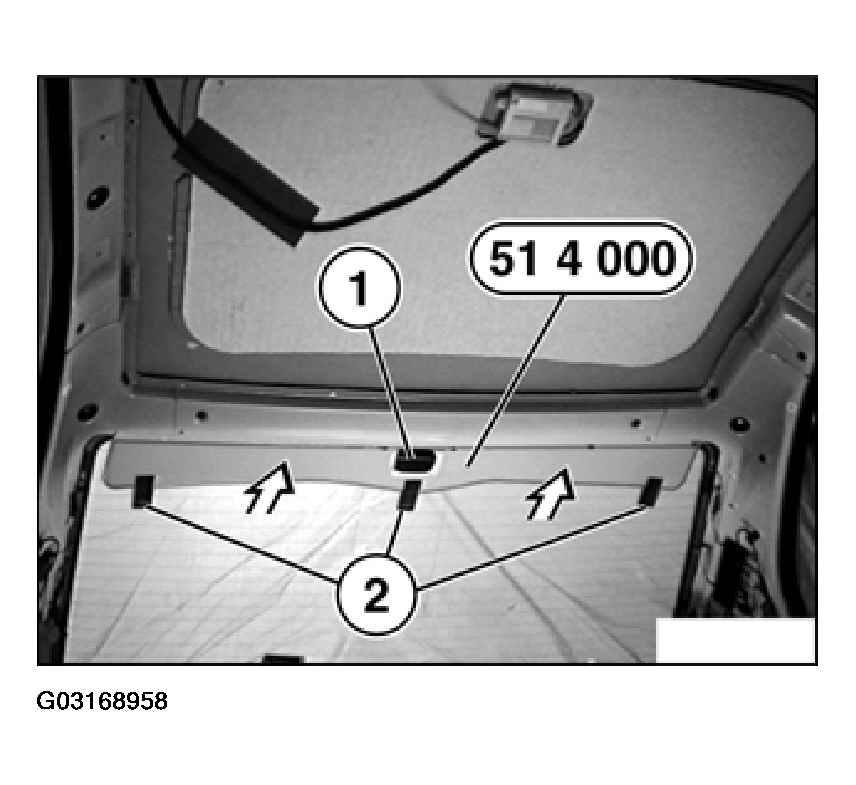

Insert special tool 51 4 000 in the support for headlining and secure with fabric adhesive tape (2).

Version with telephone connection unit:

If necessary, slide over telephone connection unit (1).

Fig 7: Inserting Special Tool 51 4 000 In Headlining Support
G03168958Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

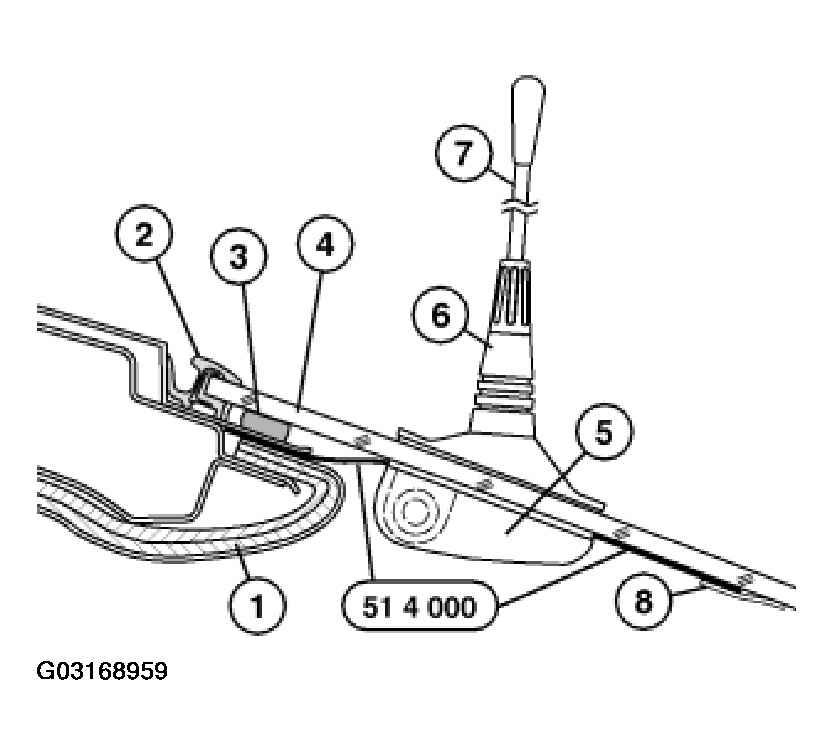

Press headlining (1) upwards against special tool 51 4 000. Press towards to limit position and secure.

Remove special tool 51 4 000 and clean rear window.

Fig 8: Pressing Headlining Upwards Using Special Tool 51 4 000
G03168959Courtesy of BMW OF NORTH AMERICA, INC.
  1. Roof liner.
  2. Seal.
  3. Cement bead.
  4. Rear window.
  5. Switch box.
  6. Antenna foot.
  7. Transmitter.
  8. Fabric adhesive tape.
