System Overview

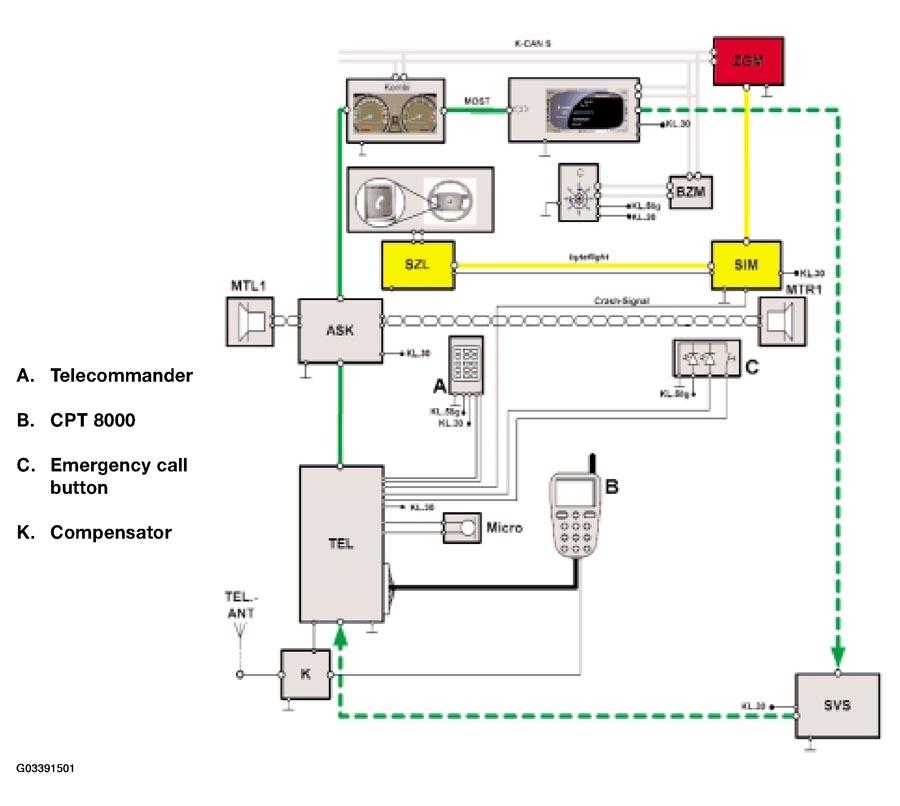

Fig 1: E65 Telephone System Overview

G03391501

Courtesy of BMW OF NORTH AMERICA, INC.
