Telephone - Overview - E65: Telephone: Components: Antenna

The telephone antenna always includes a multiple-band antenna for the telephone and a GPS antenna (Global Positioning System) for the navigation system.

In the U.S. models two telephone antennas are installed for ranges of 810 Mhz and 1990 Mhz as well as a GPS. The U.S. antenna is recognizable by its three plug connections.

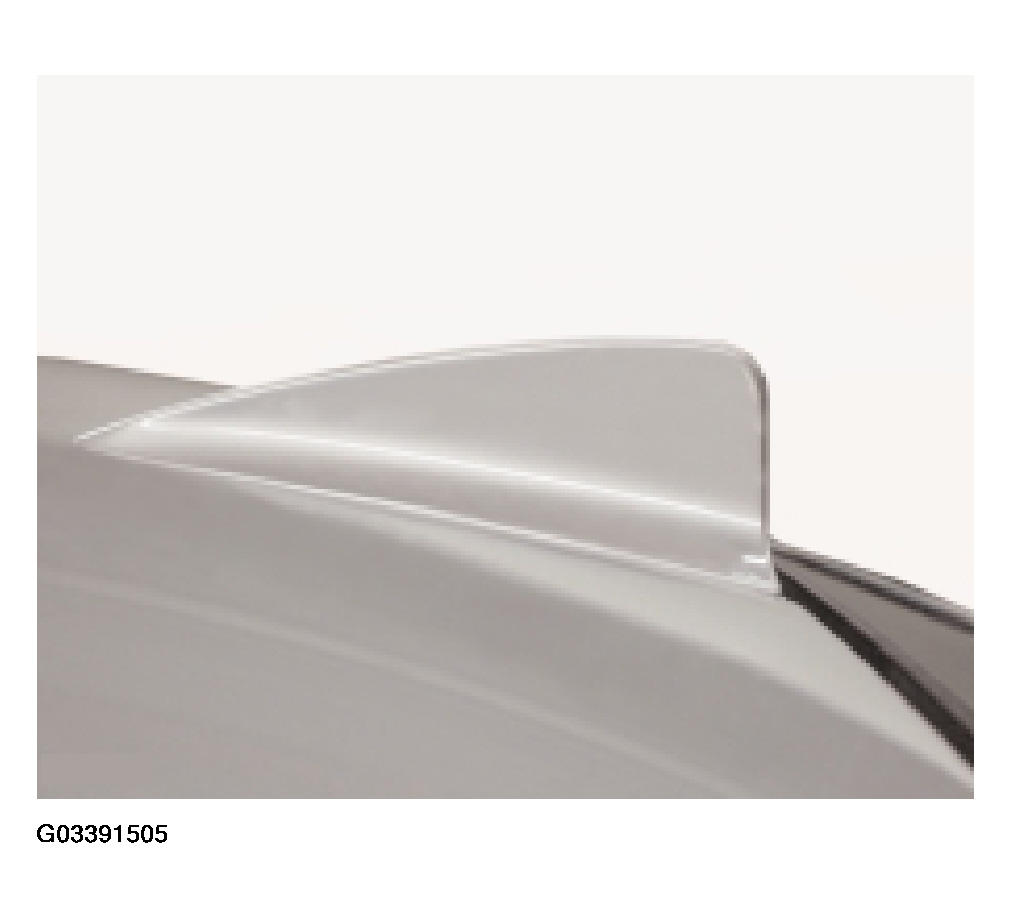

Fig 1: Identifying Antenna

Courtesy of BMW OF NORTH AMERICA, INC.
