On-Board Computer (BC): Limit
A speed limit can be entered in the On-Board Computer, and a warning is triggered when the limit is exceeded.
The range above this speed is displayed with a bright bar segment within the speedometer dial in the LCD area of the speedometer.

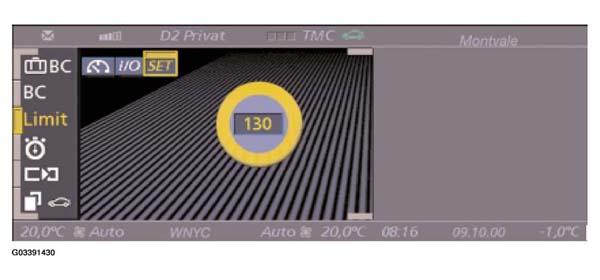

The limit can either be entered manually or the current driving speed can be adopted as the limit; both take place using the Controller and Control Display.
The function is ready for operation and input as of terminal R On, but the limit warning can only be triggered during driving (terminal 15 On and incoming speed signal telegram).
The instrument cluster saves the current speed limit and the corresponding activation state, even after terminal R Off. If the limit entered is exceeded, a gong sounds and a message appears in the Check Control.
The information on the limit and activation state is reported by the Control Display to the instrument cluster per MOST telegram and stored in the instrument cluster.
