Turn Signal Acoustic Feedback

The turn signal acoustic feedback is output through a loudspeaker integrated in the instrument cluster.

All other acoustic signals are generated by the Audio System Controller ASK and output through the vehicle loudspeakers.

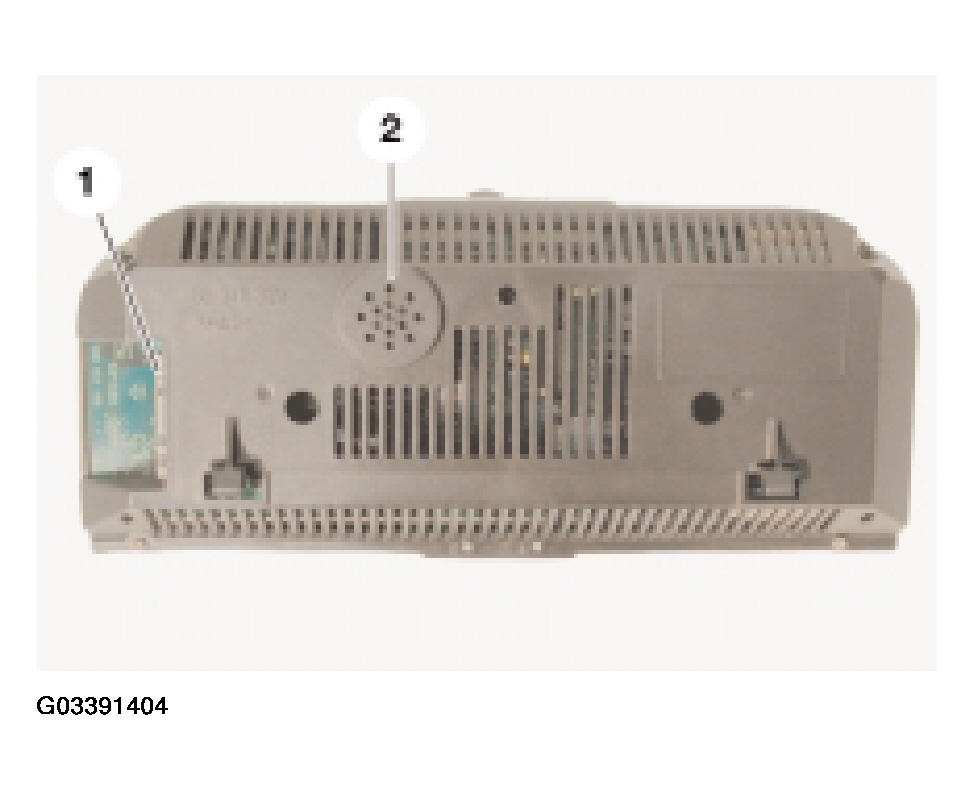

Fig 1: Rear View Of Instrument Cluster

Courtesy of BMW OF NORTH AMERICA, INC.
