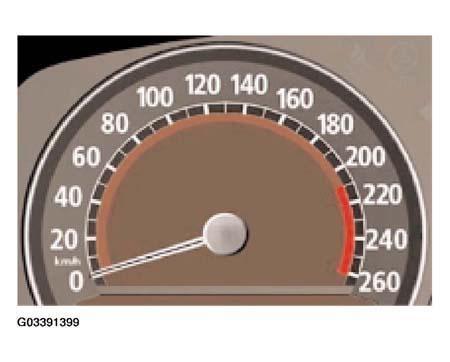

Pointer Instruments: Speedometer
The speedometer scale and the scale lettering are shown on the fixed-position dial. The pointer is moved by a stepper motor. The speed signal goes from the DSC control unit via the PT-CAN to the ZGM and from there via the K-CAN System to the instrument cluster.
The signal from the left-hand rear wheel sensor, as processed by the DSC control unit, is used here.
