Navigation Display

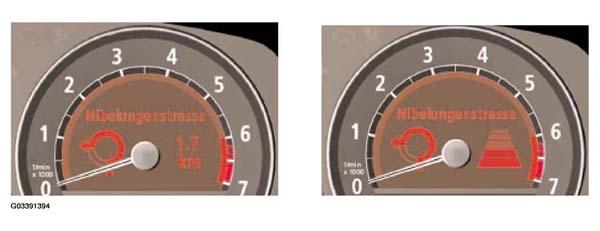

Guidance information (round arrow), the next junction and the distance to the next junction are displayed. Up to a point shortly before the turn-off, the distance to it is showed numerically. It is then displayed in a bar chart.
The bar decreases in size continuously until the turn-off is reached. Whether the distance to the next turn-off is displayed numerically or as a bar chart is determined by the navigation system. The data is transferred from the navigation system by MOST bus telegram to the instrument cluster.
