Display Locations

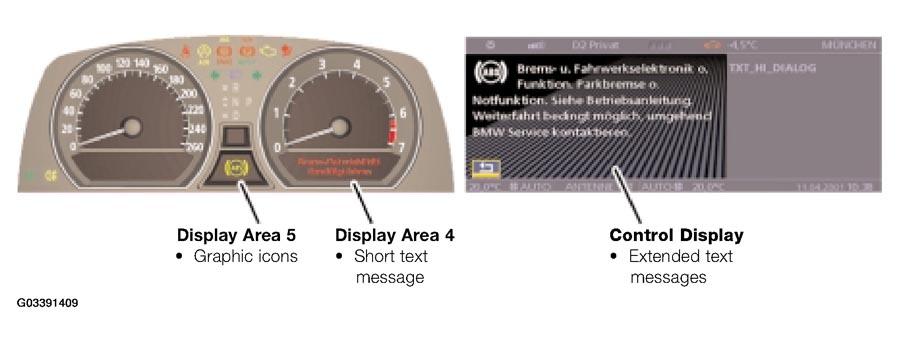

The messages of the Check Control are displayed in three locations.
The variable graphic icons are displayed in yellow or red in display area 5 below the gear display. Normally, the time and outside temperature are displayed in this area, these can be overwritten by the Check Control where required.
The text messages of the Check Control appear in display area 4 below the tachometer. If data from the On-Board computer is displayed here while a message is being issued, it is overwritten by the Check Control.
For most of the messages of the Check Control, there are also supplementary explanations and instructions. These can be opened on the Control Display via the On-Board Data menu. In the case of priority 1 messages, they appear automatically.
Check Control messages are most times announced by a gong.
