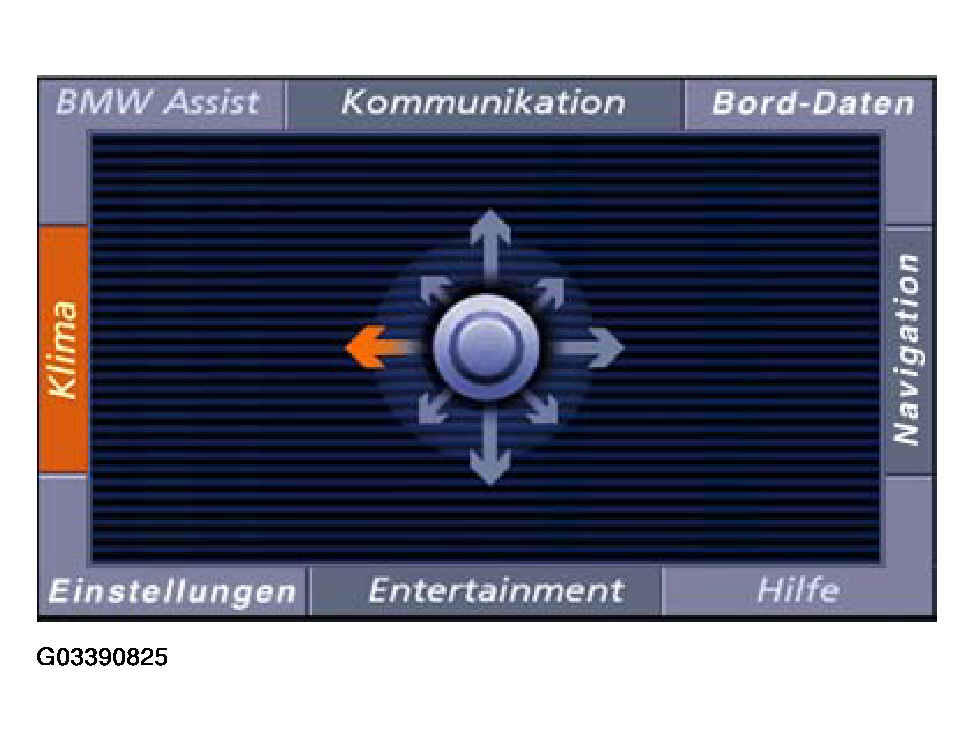

The Status Bars: Climate

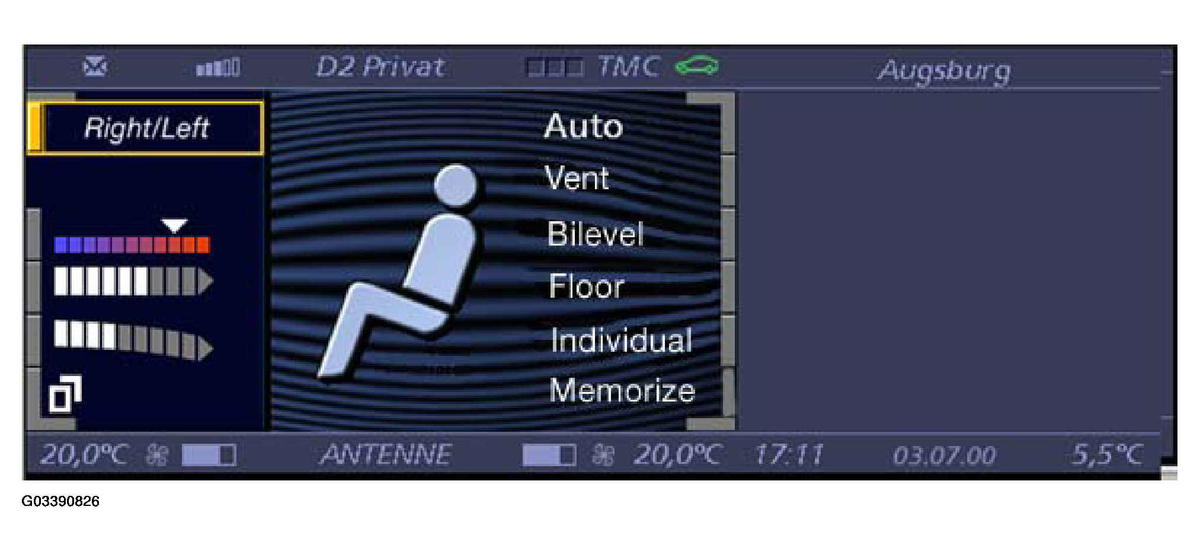

The various pages of the "Climate" menu contain the following functions:
- Vent position selection
- Center vent stratification
- Customization of air volume distribution
- Parked car ventilation settings
- Seat heating proportioning (seat bottom/seat back)
Certain selected climate control settings such as air volume are both available from the Control Display as well as the IHKA control panel.
If a menu has more than one page, this is indicated by a button in the bottom left corner. The button is selected rotating the Controller and the selection confirmed by depressing the Controller.
The next menu page then appears.
To return to the previous page select the button again.
