Comfort Area: Control Display and Controller: Introduction
Improved display systems and digital technology enable new control functions and display options. In addition, the number of vehicle functions is increasing. This growth is likely to be concentrated in the area of convenience and communication functions such as multimedia applications and information services.
In order to be able to make use this abundance of functions without having an unmanageable array of controls and displays, the following concept has been developed:
- Combination of user interfaces into a single multifunctional display in the form of the Control Display offering centralized screen-based control of functions.
- Screen-based control of functions performed by means of a central operating control in the form of the Controller.
The Control Display and the Controller set new standards in driver-vehicle interface design.
This is a logical progression from the On-Board Monitor first introduced on the E38.
The most important characteristics of the centralized control and display system are the following:
- Standardized layout for all functions
- Standardized control strategy for all functions
- High-quality visualization and ergonomics
- Possibility for easy modification of user interface by software update

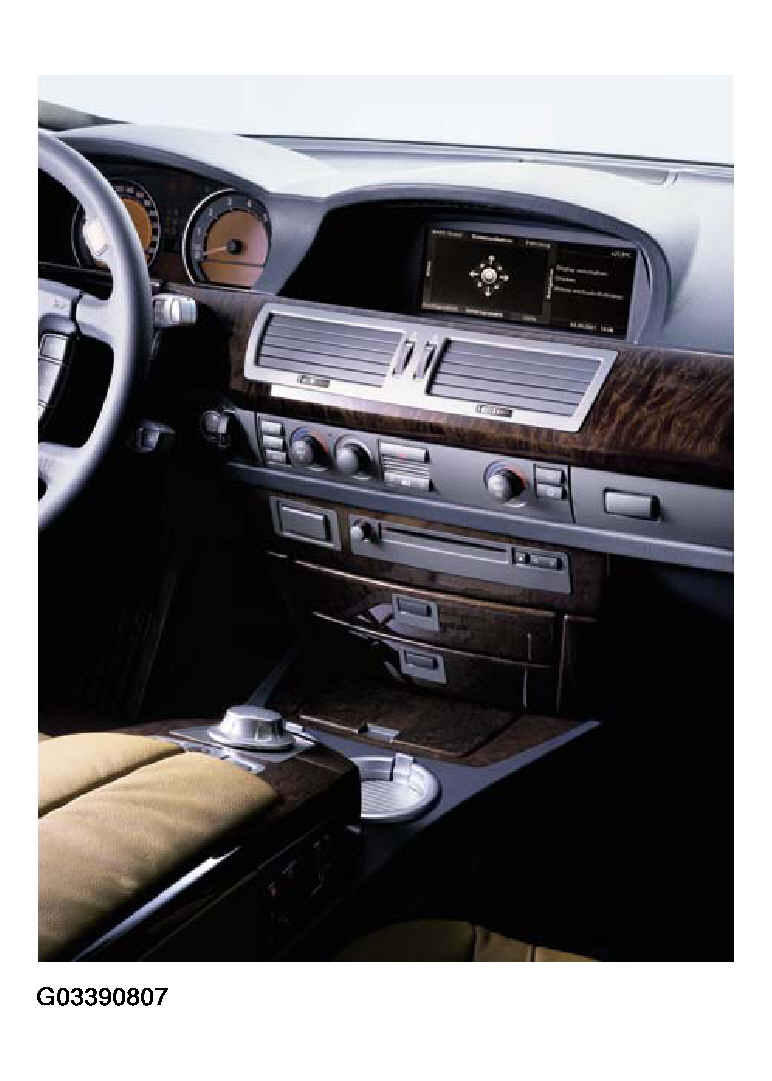

The fundamental component of the Comfort Area is the Control Display and its associated operating control, the Controller.
The Control Display is built into the center of the dashboard. The Controller is on the center console, positioned ergonomically in front of the center armrest.
All convenience functions are within easy reach of the driver and front passenger.

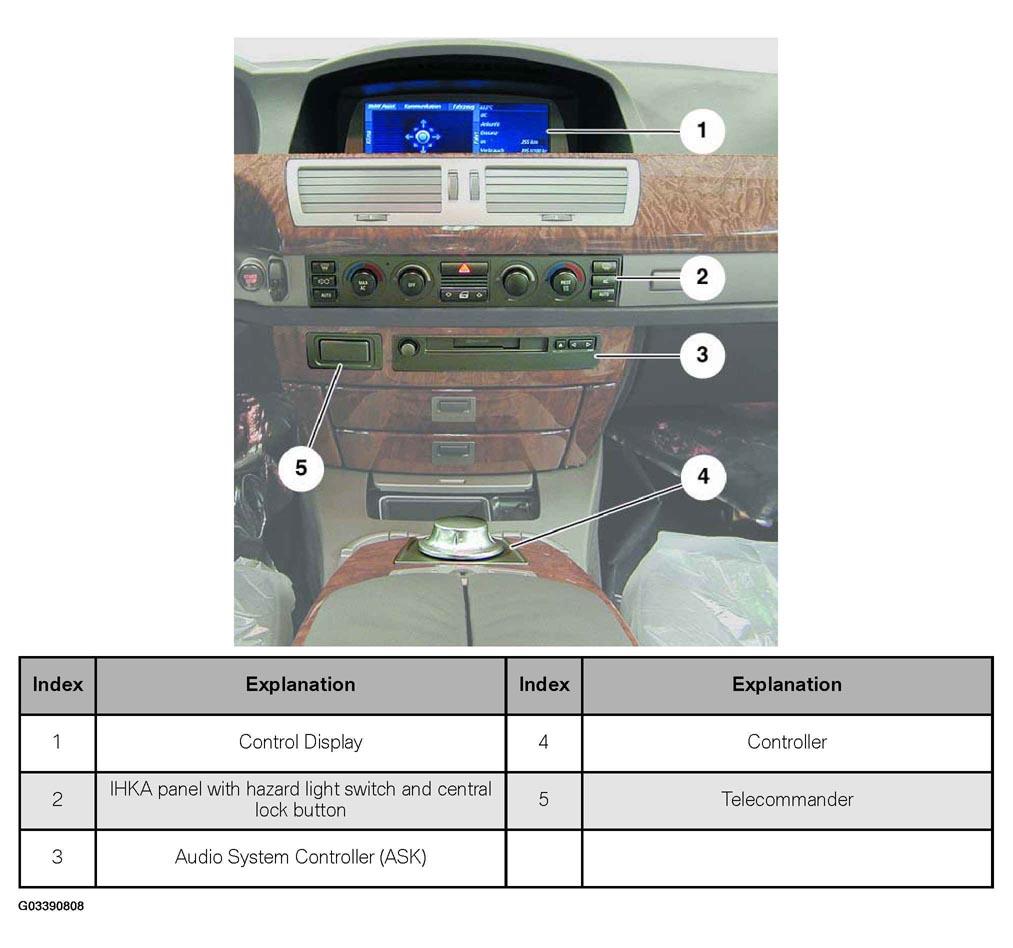

The following controls are in the Comfort Area:
- Control Display and Controller.
- Air conditioning control panel incorporating switches for hazard warning lights and central locking.
- Control panel for radio and compact disc (optional cassette) player.
- Telecommander (retractable telephone key pad).
