Terminal Selection: Notes

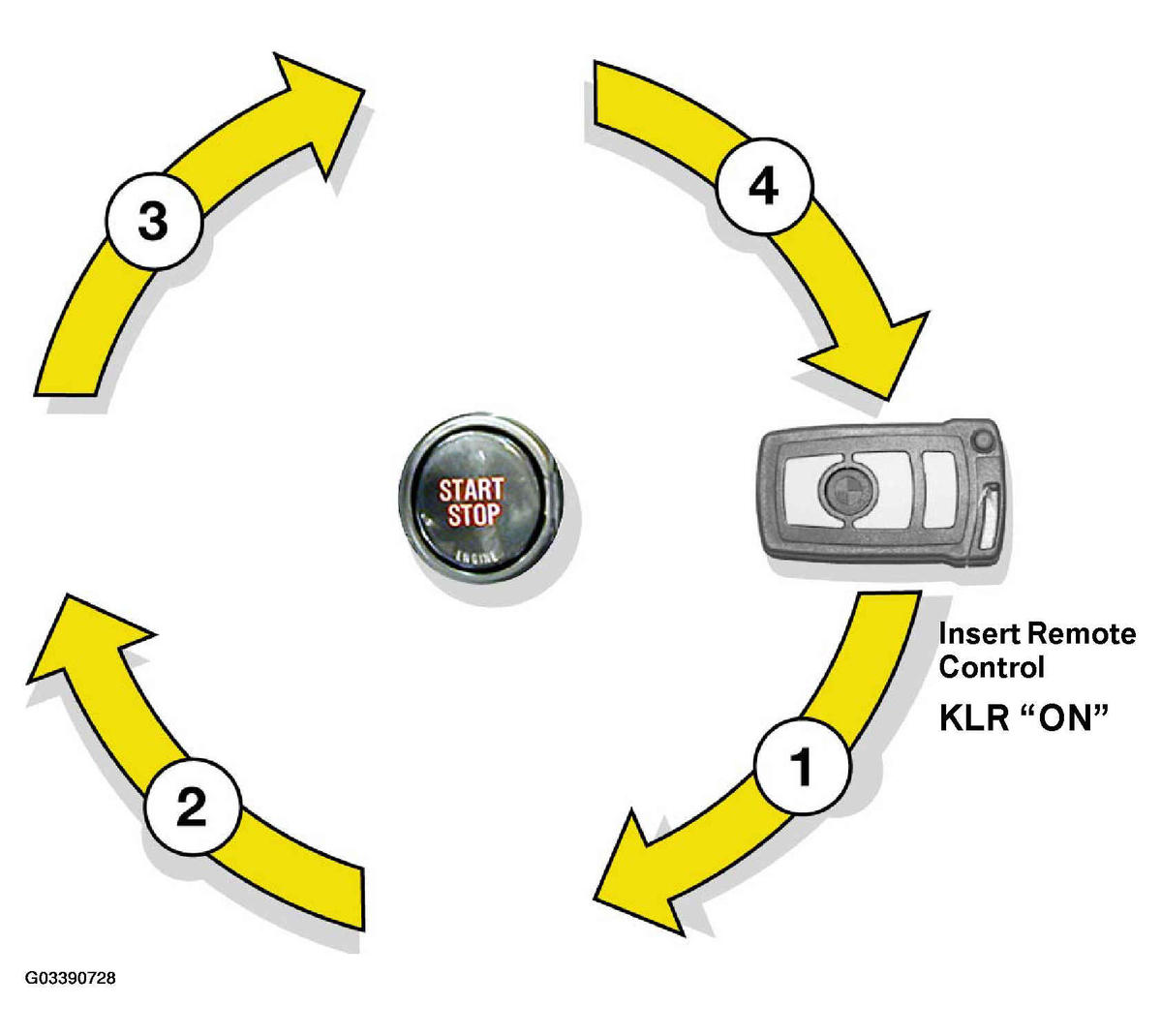

The terminal statuses are selected when the brakes are not actuated by touching the start/stop button. A valid key must be locked in place. The terminal statuses are run through as follows:
Ignition "off" (terminal 30) > terminal R > terminal 15 > terminal R > ignition "off"
