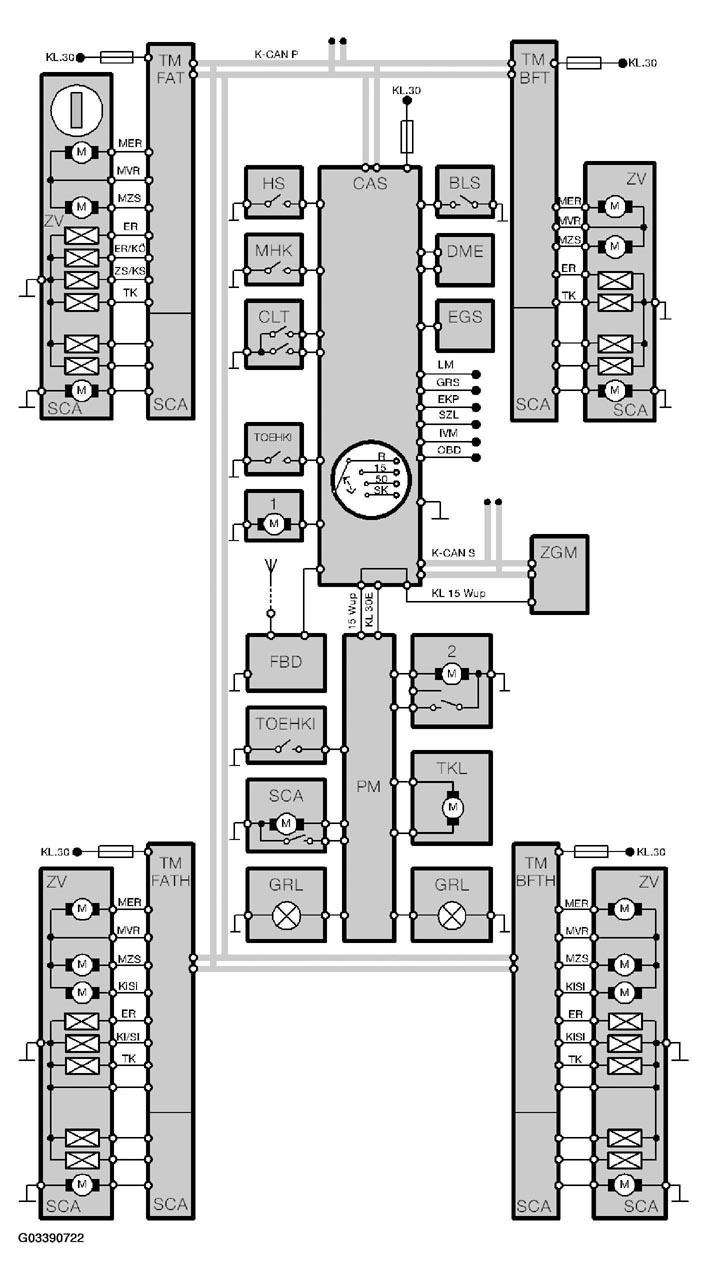

CAS System Overview
Legend For CAS Overview
LEGEND FOR CAS OVERVIEW
| Acronym | Description | Acronym | Description |
|---|---|---|---|
| M1 | Starter | LM | Lamp Module |
| KL15w | Terminal 15 Wake-up | MER | Unlock motor |
| KL30 | Terminal 30 | MHK | Hood contact |
| KL87 | Terminal 87 | MVR | Locking motor |
| BLS | Brake light switch | MZS | Central locking motor |
| CAS | Car Access System | OBD | On-board diagnosis |
| CLT | Central locking button | PM | Power Module |
| DME | Digital Motor Electronics | SCA | Soft close automatic |
| ER | Unlocking | SZL | Steering Column Switch Center |
| EGS | Electronic Transmission Control | TK | Door Contact |
| EKP | Electric Fuel Pump | TKL | Fuel Filler Door |
| FBD | Remote Control System | TMBFT | Door Module passenger side |
| GRL | Trunk Light | TMBFTH | Door Module passenger side rear |
| GRS | Rotation rate sensor | TMFAT | Door Module, driver's side |
| HS | Hotel Switch | TMFATH | Door Module, driver's side rear |
| IVM | Integrated Voltage Supply Module | TOEHK | Trunk release button, outside |
| K-CAN-P | K-CAN Periphery | TOEHKI | Trunk release button, inside |
| KiSi | Child Proof door lock | ZGM | Central Gateway Module |
| ZV | Central Locking System |
