11 12 106 Removing and installing right cylinder head (N62 from 9 / 03 and N62TU): Removal:

Removal of cylinder head is described separately from installation.

Slacken off chain tensioning piston (1) by approx. one turn.

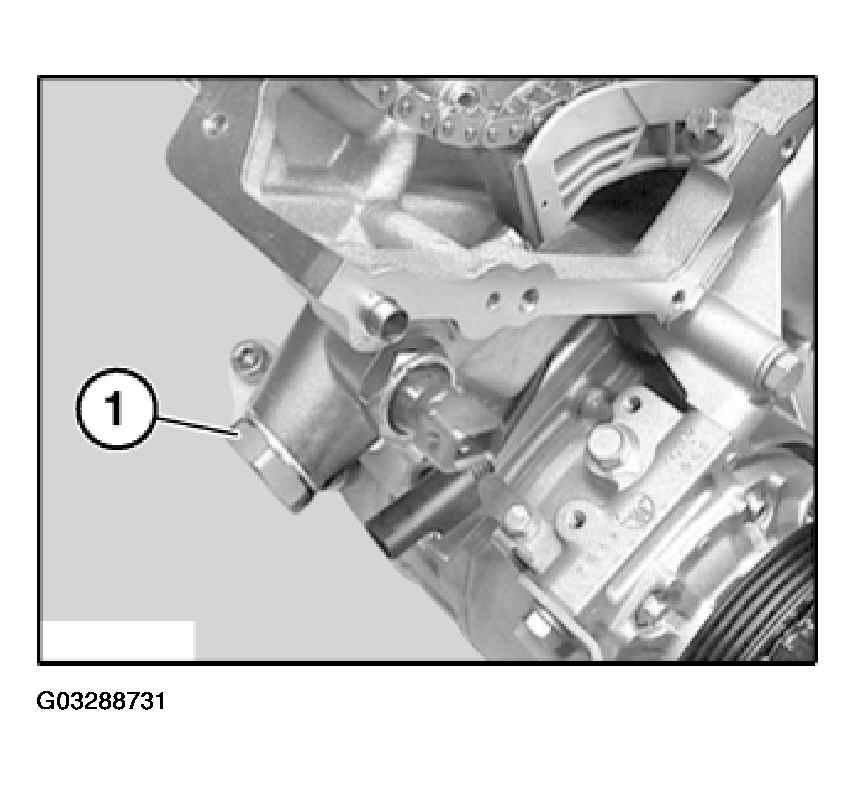

Fig 1: Locating Chain Tensioning Piston

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustration with engine removed.

Remove eccentric shaft sensor (2).

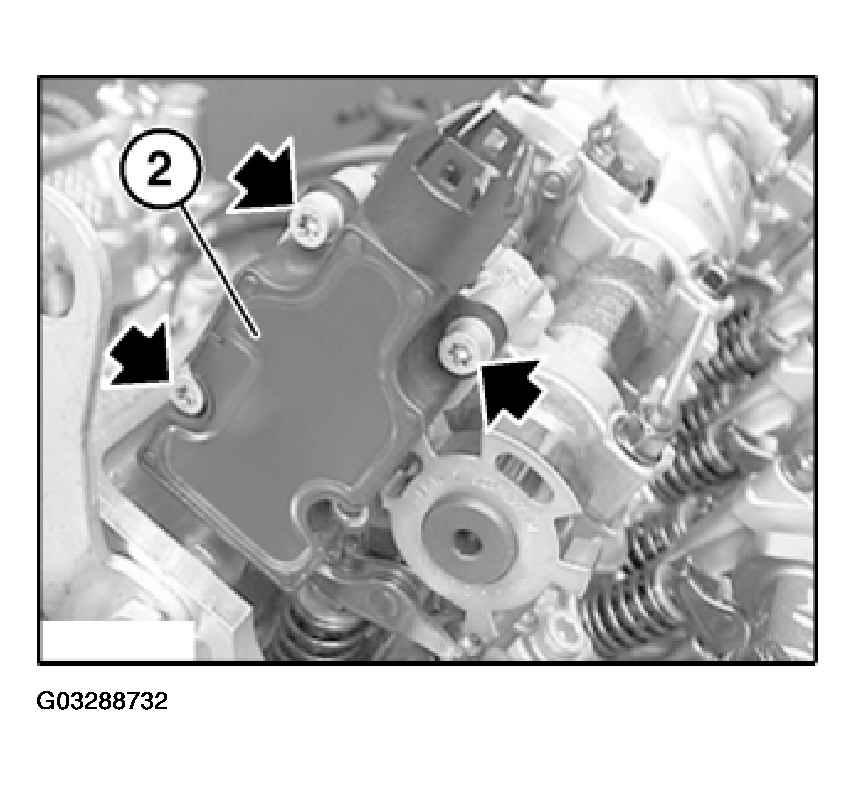

Fig 2: Removing Eccentric Shaft Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

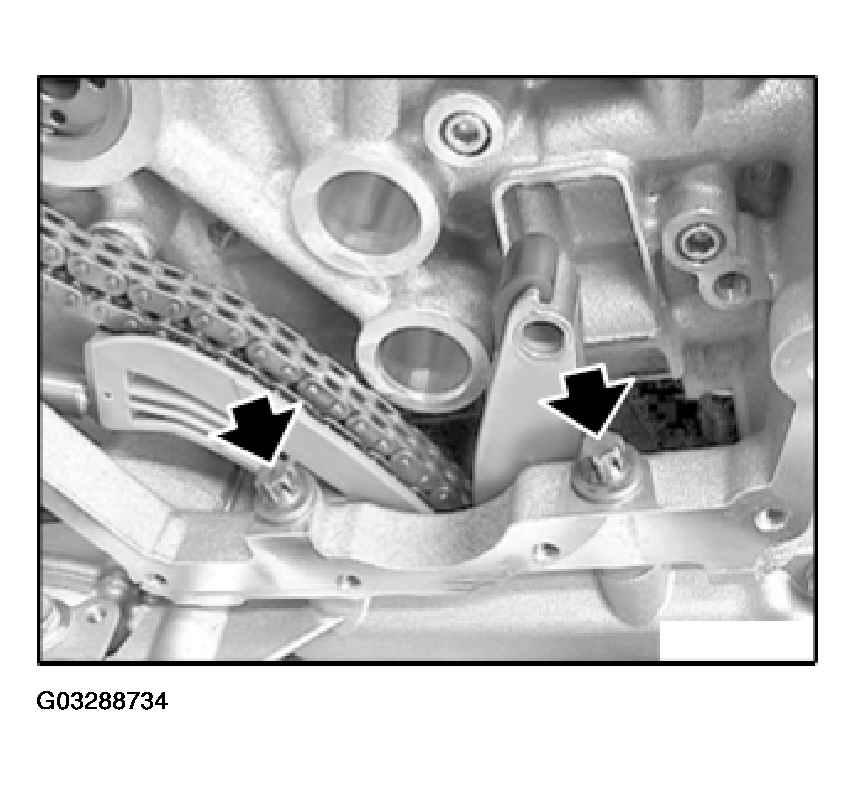

Detach guide rail from cylinder head.

Fig 3: Detaching Guide Rail From Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

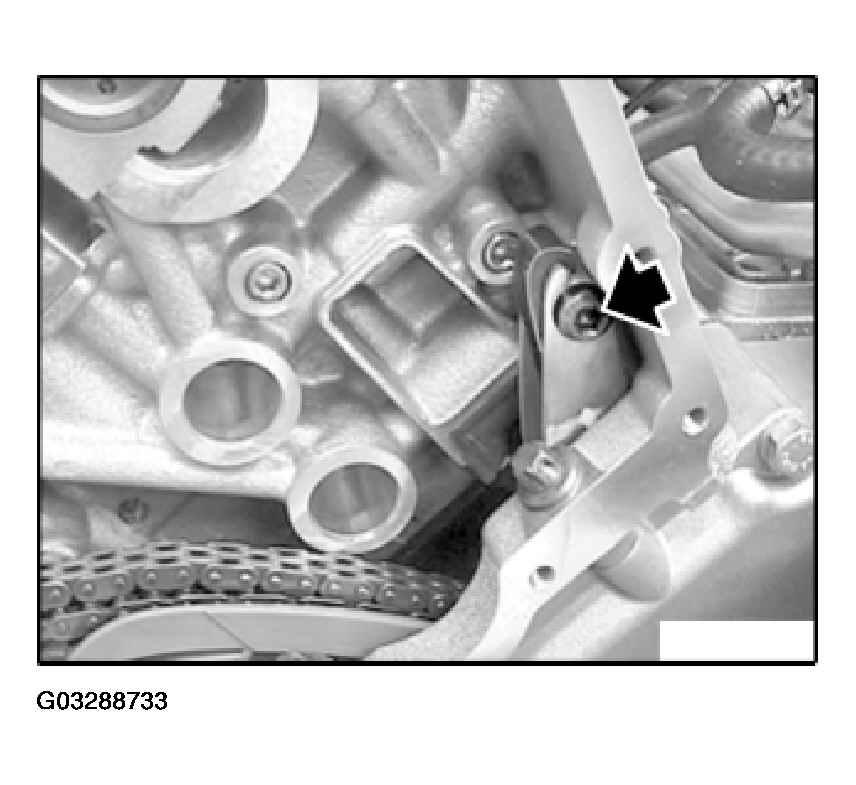

Release screws between cylinder head and timing case cover.

Fig 4: Releasing Screws Between Cylinder Head And Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: At narrow points, use a socket with 3/8" drive and a short extension.

Release cylinder-head bolts in sequence 10 ... 1.

Lift off cylinder head.

Lift off cylinder head gasket.

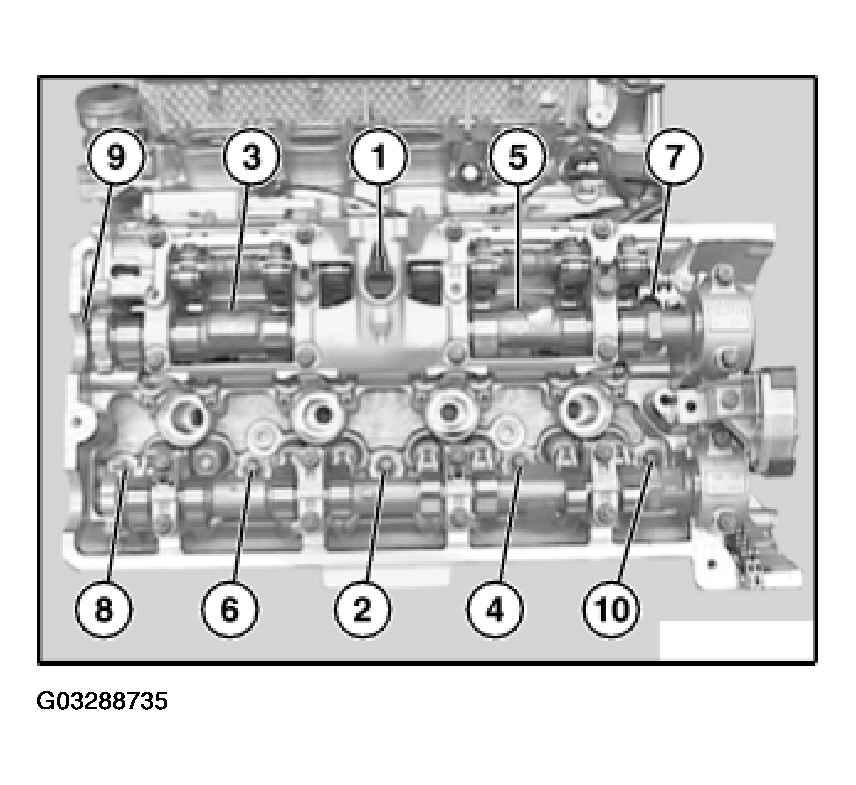

Fig 5: Releasing Cylinder-Head Bolts In Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Remove chain tensioning piston (1).

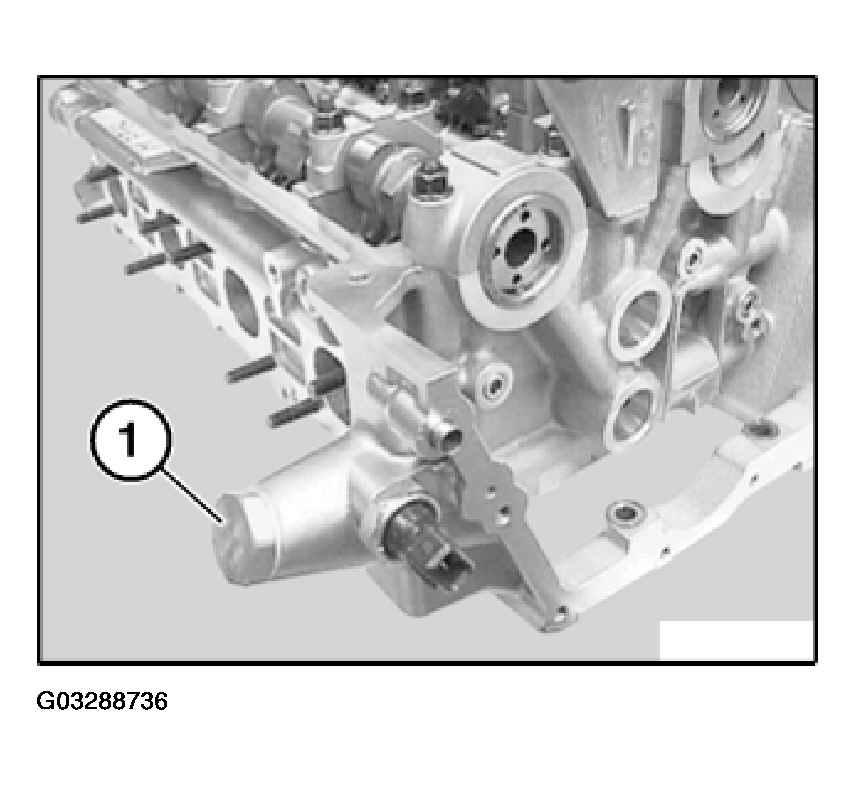

Fig 6: Removing Chain Tensioning Piston

Courtesy of BMW OF NORTH AMERICA, INC.

Place chain tensioning piston (1) on a level surface and compress slowly and carefully.

Repeat this procedure twice.

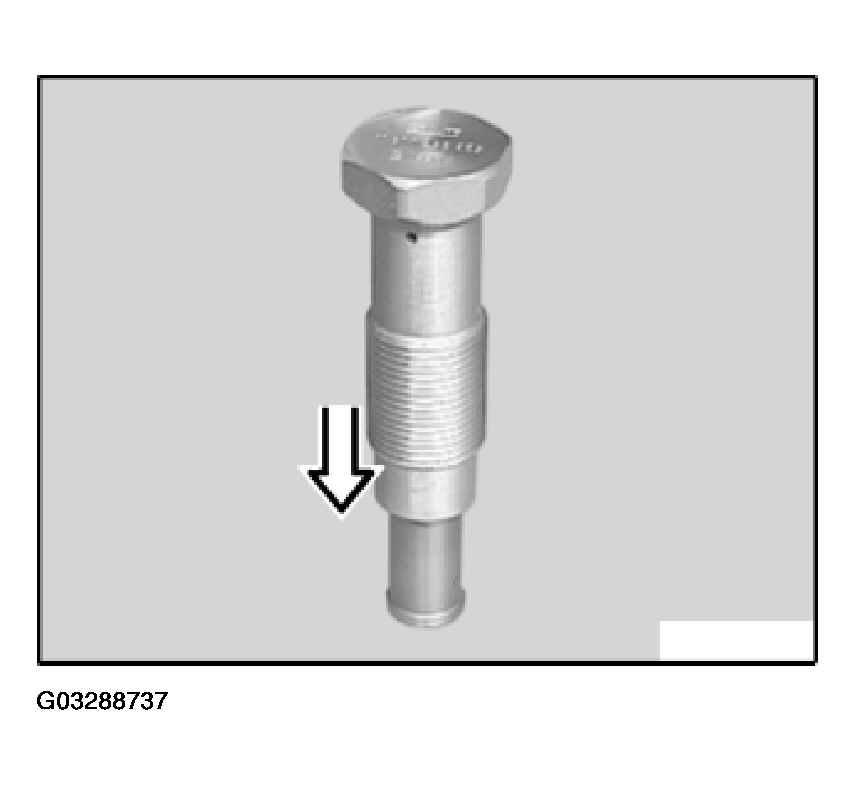

Fig 7: Compressing Chain Tensioning Piston

Courtesy of BMW OF NORTH AMERICA, INC.
