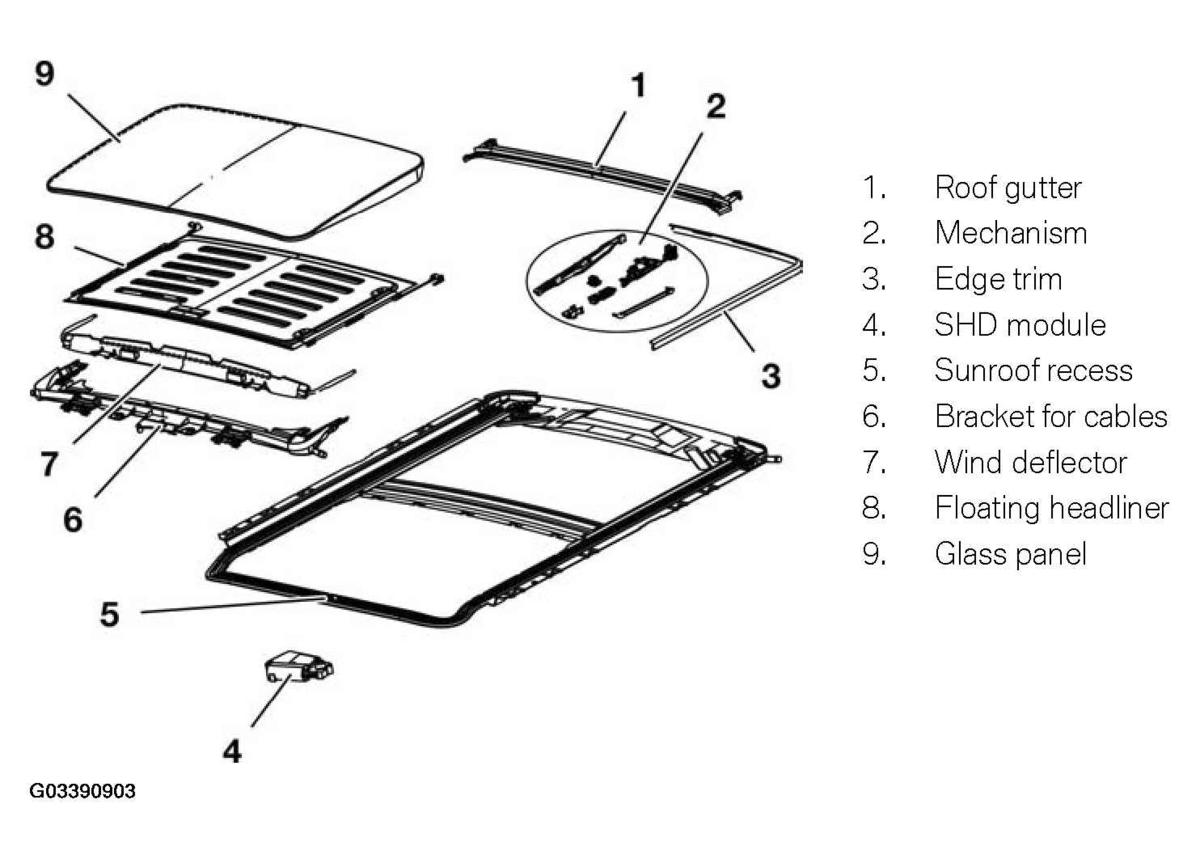

Sunroof Cassette
The structure of the sunroof cassette is similar to that of the E38/E39.
The parts that can be replaced with the cassette still installed in the vehicle are:
- Glass panel
- Floating headliner
- Wind deflector
- SHD module
- Roof gutter
The cables of the sunroof cassette cannot be serviced individually, if they are defective, the entire cassette must be replaced. If the sliding/tilt lever is damaged the cassette must also be replaced.
NOTE:
Be careful removing the rubber drain hoses from the cassette because they are bonded to the body and are not easily replaced.
