11 33 517 Removing and installing/replacing rocker arms on right inlet side (N62 to 9/03): Removal

Removal of rocker arms is described separately from installation.

Remove servomotor for right eccentric shaft. Refer to 11 37 024 Removing and installing/replacing servomotor for right eccentric shaft (N62) .

Remove ignition coils on cylinder bank 1 to 4.

Remove right cylinder head cover. Refer to 11 12 006 Removing and installing / sealing right cylinder head cover (N62 / N62TU) .

Remove spark plugs on cylinder bank 1 to 4.

Install inlet and exhaust adjustment unit on right side. Refer to 11 36 048 Removing and installing/replacing inlet and exhaust adjustment units on right side (N62) .

IMPORTANT: The inlet camshaft must first be rotated so that when the bearing bracket is removed the intermediate levers do not slip out and damage the camshaft.

Rotate inlet camshaft in direction of rotation until cam on 1st cylinder is positioned horizontally as shown in illustration.

Fig 1: Rotating Inlet Camshaft

G03289200

Courtesy of BMW OF NORTH AMERICA, INC.

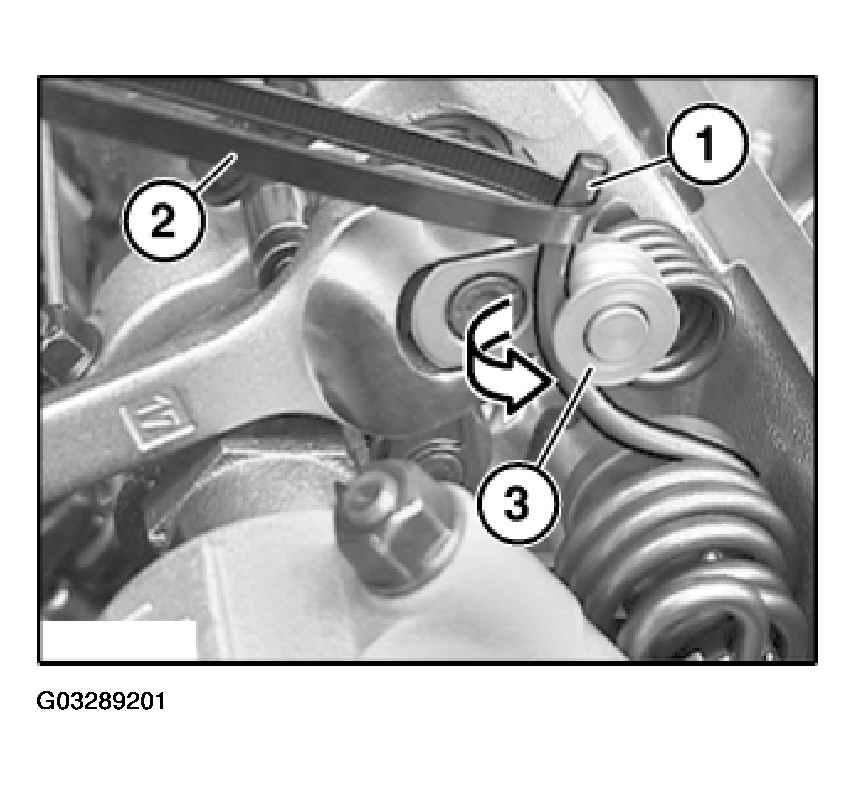

Rotate eccentric shaft at dihedral head as illustrated in order to reduce tension on torsion spring (1).

Fig 2: Rotating Eccentric Shaft At Dihedral Head

G03289201

Courtesy of BMW OF NORTH AMERICA, INC.

Pretension torsion spring (1) with a cable strap (2), feed out from roller (3) and carefully relieve tension.

Rotate eccentric shaft at dihedral head as shown in illustration back to minimum stroke position.

Fig 3: Rotating Eccentric Shaft Back To Minimum Stroke Position

G03289202

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not mix up the camshaft bearing covers of cylinders 1 to 4 and 5 to 8.

NOTE: Bearing caps of inlet camshaft are marked on cylinder bank 1 to 4 with L E1 to L E5 from inlet side.

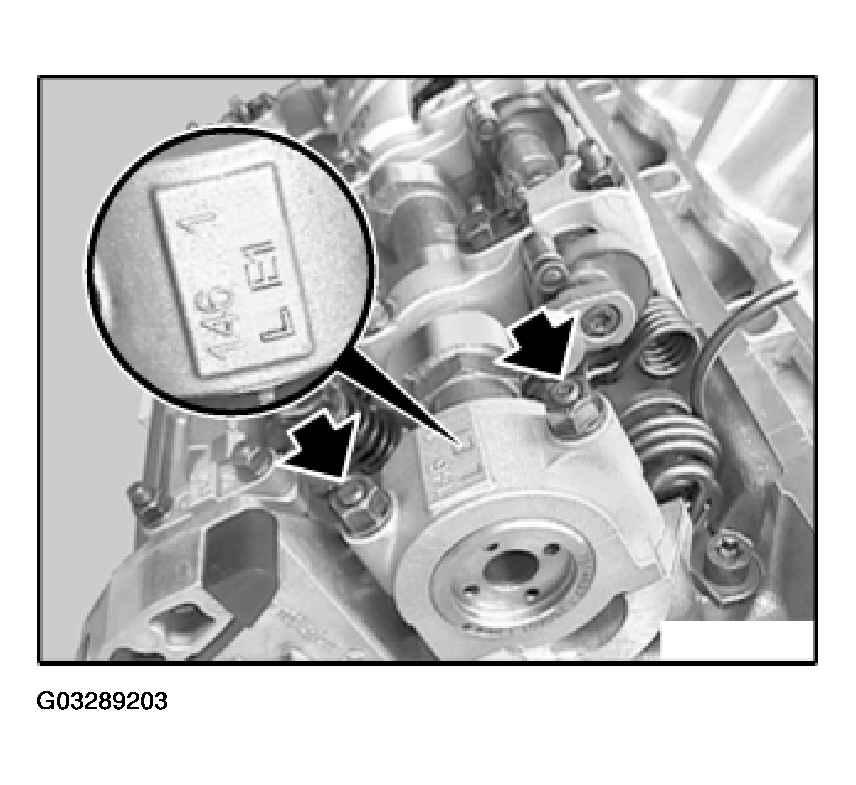

Fig 4: Removing Bearing Cap L E1

G03289203

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts and remove bearing cap L E1.

Release 8 nuts of bearing bracket (1) from outside to inside.

Fig 5: Releasing Bearing Bracket Nuts

G03289204

Courtesy of BMW OF NORTH AMERICA, INC.

Clamp special tool 11 9 470 as illustrated in a vise.

Fig 6: Clamping Special Tool In Vise

G03289205

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not tilt bearing bracket (1).

Carefully lift out bearing bracket (1).

Fig 7: Removing Bearing Bracket

G03289206

Courtesy of BMW OF NORTH AMERICA, INC.

Place bearing bracket (1) with inlet camshaft and eccentric shaft as illustrated on special tool 11 9 470.

Fig 8: Securing Bearing Bracket

G03289207

Courtesy of BMW OF NORTH AMERICA, INC.

Secure bearing bracket (1) with a nut (special tool 11 9 473).

IMPORTANT: The lower section of the bearing bracket (1) is machined with the cylinder head and must not be mixed up.

NOTE: Lower section of bearing bracket (1) remains on cylinder head.

Fig 9: Identifying Bearing Bracket Lower Section

G03289208

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Rockers arms (1) are divided into individual tolerance classes.

The tolerance classes are designated as illustrated with the numbers from 1 to 4.

Fig 10: Removing Rocker Arms

G03289209

Courtesy of BMW OF NORTH AMERICA, INC.

Used rocker arms (1) may only be reused in the same position.

When replacing rocker arms (1) on inlet side: install rocker arms of the same tolerance class in the same position.

Remove rocker arms (1) on inlet side and set aside in neat order.
