Cylinder bank 5 to 8

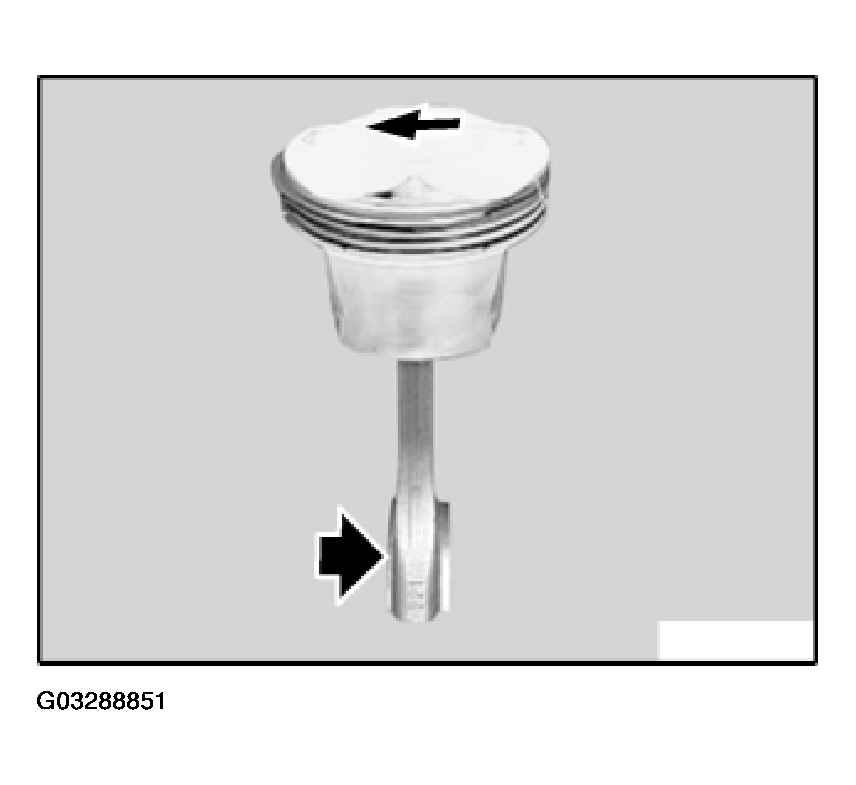

Fit conrod with piston pin to piston in such a way that arrow on piston points to front and flat end of conrod points to rear.

Fig 1: Fitting Conrod With Piston Pin To Piston

Courtesy of BMW OF NORTH AMERICA, INC.

Install conrod bearing. Refer to 11 24 571 Replacing all conrod bearings (N62) .

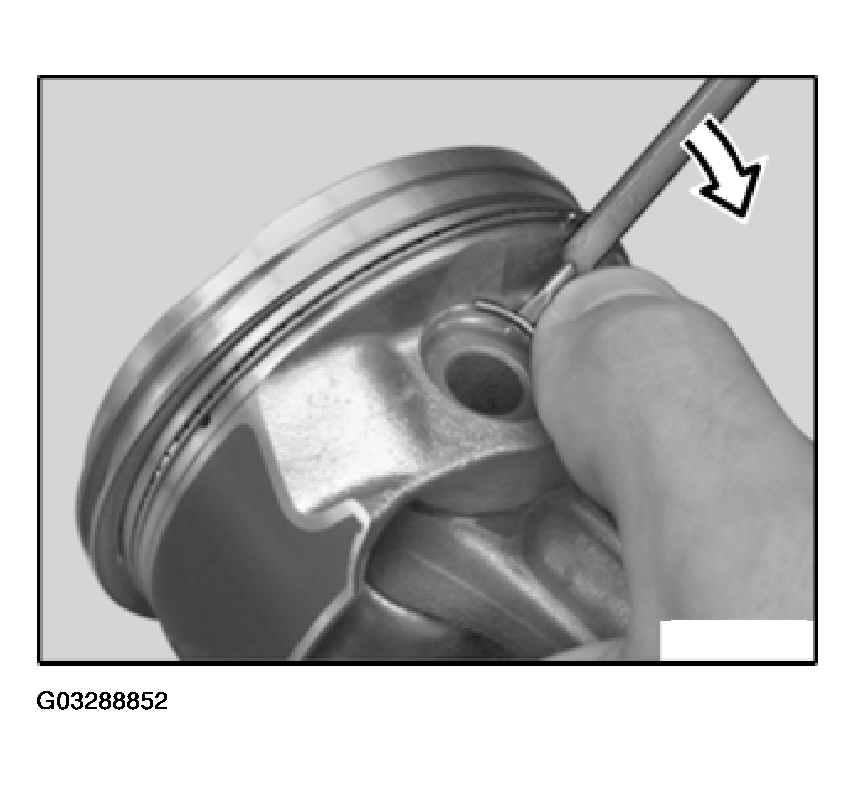

Install retaining ring.

Fig 2: Installing Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.

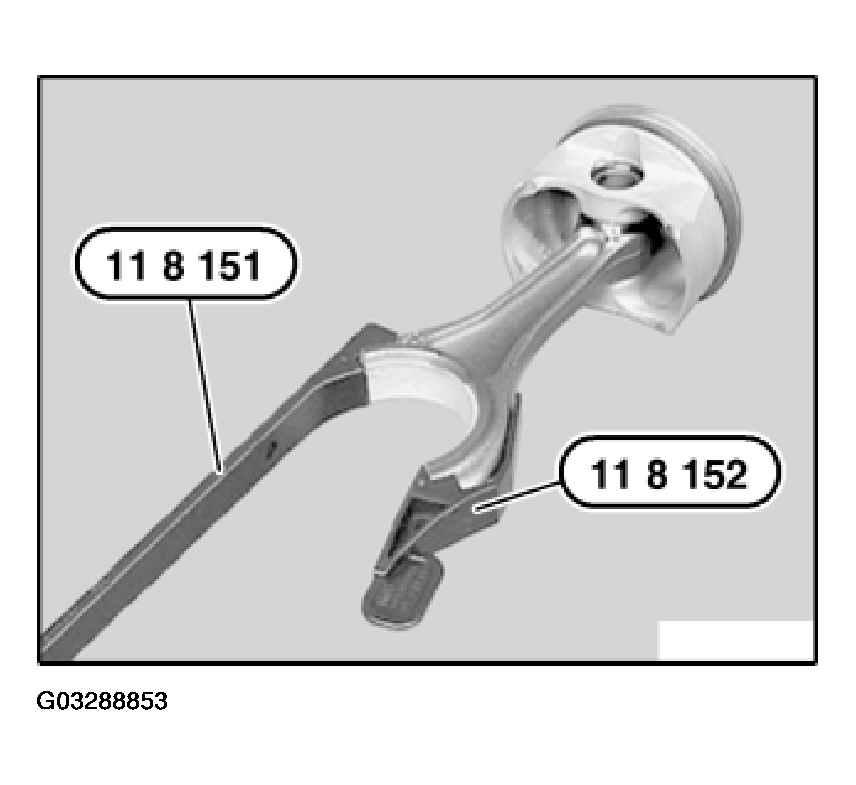

Insert special tools 11 8 151 and 11 8 152 in conrod.

Fig 3: Inserting Special Tools In Conrod

Courtesy of BMW OF NORTH AMERICA, INC.
