Cylinder bank 1 to 4

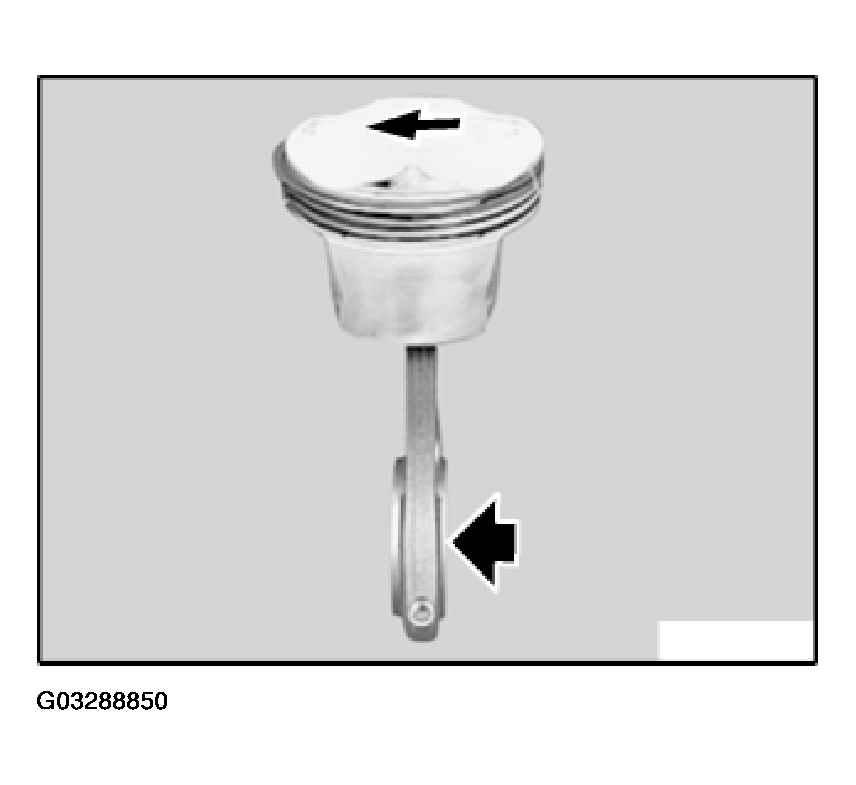

Fit conrod with piston pin to piston in such a way that arrow on piston points to front and flat end of conrod points to rear.

Fig 1: Fitting Conrod With Piston Pin To Piston
G03288850Courtesy of BMW OF NORTH AMERICA, INC.
