11 31 034 Removing and installing/replacing right inlet camshaft (N62 to 9/03): Removal

Removal of inlet camshaft is described separately from installation.

Remove servomotor for right eccentric shaft. Refer to 11 37 024 Removing and installing/replacing servomotor for right eccentric shaft (N62) .

Remove ignition coils on cylinder bank 1 to 4.

Remove right cylinder head cover. Refer to 11 12 006 Removing and installing / sealing right cylinder head cover (N62 / N62TU) .

Remove spark plugs on cylinder bank 1 to 4.

Remove inlet and exhaust adjustment unit on right side. Refer to 11 36 048 Removing and installing/replacing inlet and exhaust adjustment units on right side (N62) .

IMPORTANT: The inlet camshaft must first be rotated so that when the bearing bracket is removed the intermediate levers do not slip out and damage the camshaft.

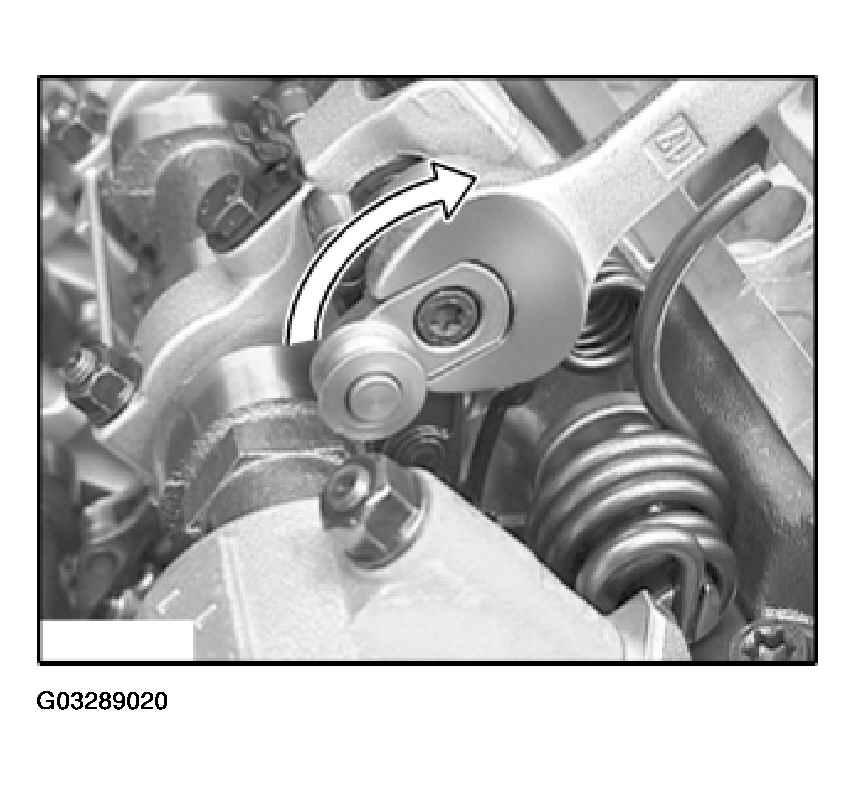

Rotate inlet camshaft in direction of rotation until cam on 1st cylinder is positioned horizontally as shown in illustration.

Fig 1: Rotating Inlet Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Rotate eccentric shaft at dihedral head as illustrated in order to reduce tension on torsion spring (1).

Fig 2: Rotating Eccentric Shaft At Dihedral Head

Courtesy of BMW OF NORTH AMERICA, INC.

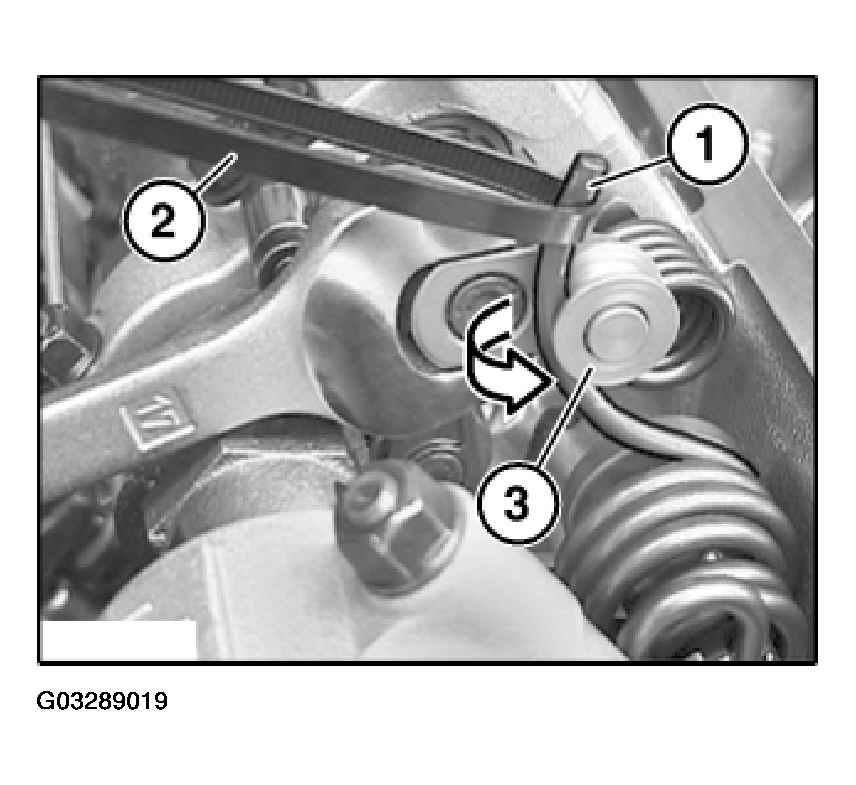

Pretension torsion spring (1) with a cable strap (2), feed out from roller (3) and carefully relieve tension.

Rotate eccentric shaft at dihedral head as shown in illustration back to minimum stroke position.

Fig 3: Rotating Eccentric Shaft Back To Minimum Stroke Position

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not mix up the camshaft bearing covers of cylinders 1 to 4 and 5 to 8.

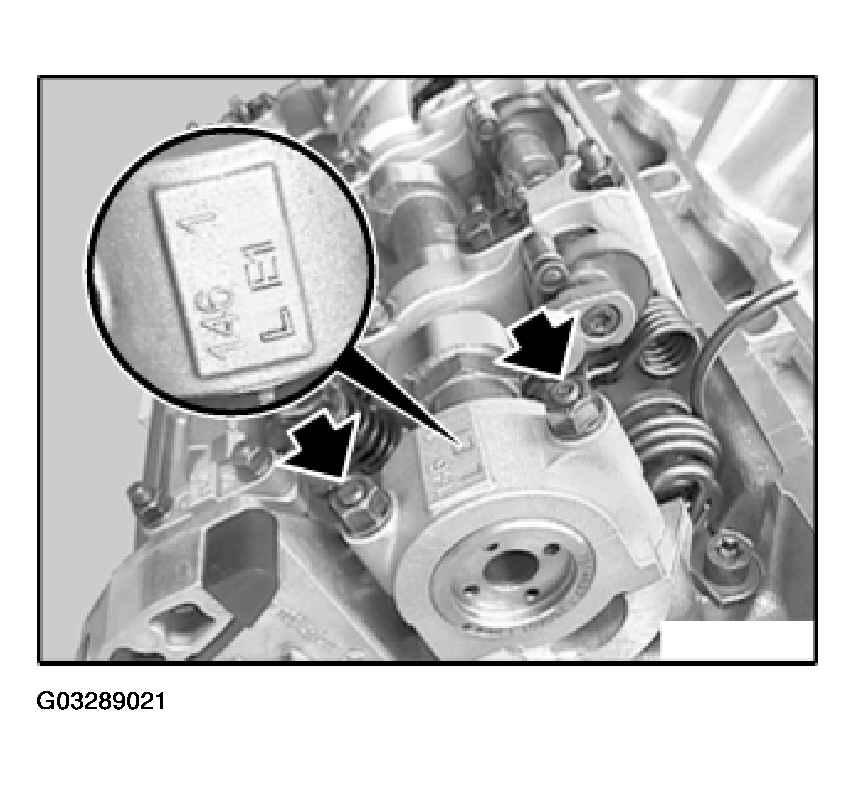

NOTE: Bearing caps of inlet camshaft are marked on cylinder bank 1 to 4 with L E1 to L E5 from inlet side.

Fig 4: Removing bearing cap L E1

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts and remove bearing cap L E1.

Release 8 nuts of bearing bracket (1) from outside to inside.

Fig 5: Releasing Nuts Of Bearing Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Rocker arms are freely accessible after bearing bracket has been removed.
Do "not" remove rocker arm (1) on inlet side.

Fig 6: Identifying Rocker Arm (1)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Rockers arms (1) are divided into individual tolerance classes.

The tolerance classes are designated as illustrated with the numbers from 1 to 4.

Used rocker arms (1) may only be reused in the same position.

When replacing rocker arms (1) on inlet side: install rocker arms of the same tolerance class in the same position.

Clamp special tool 11 9 470 as illustrated in a vise.

Fig 7: Clamping Special Tool In Vise

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not tilt bearing bracket (1).

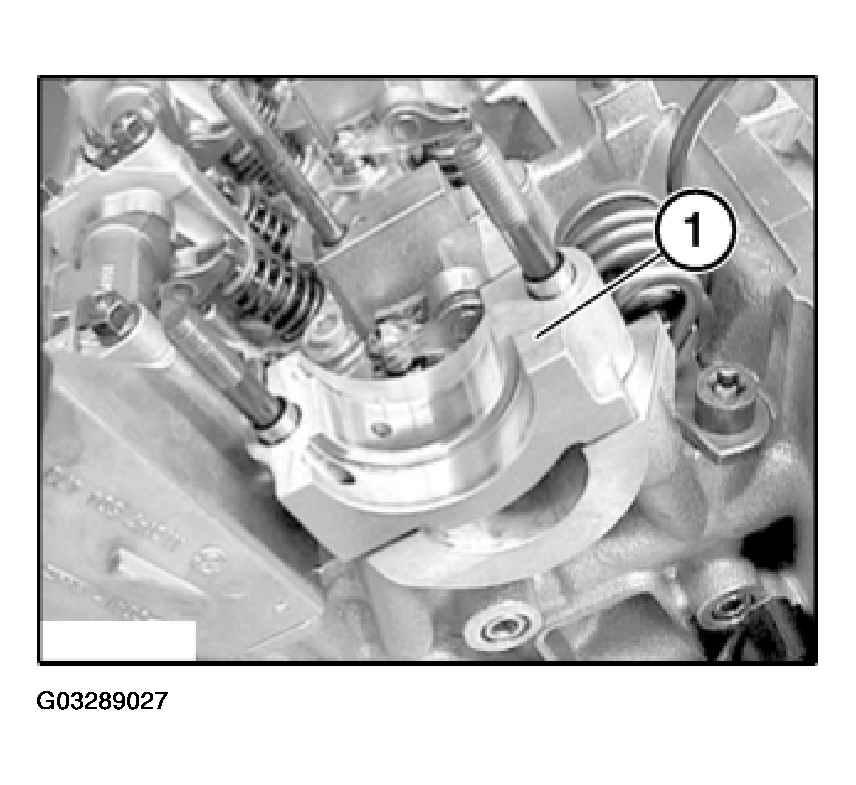

Carefully lift out bearing bracket (1).

Fig 8: Lifting Out Bearing Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

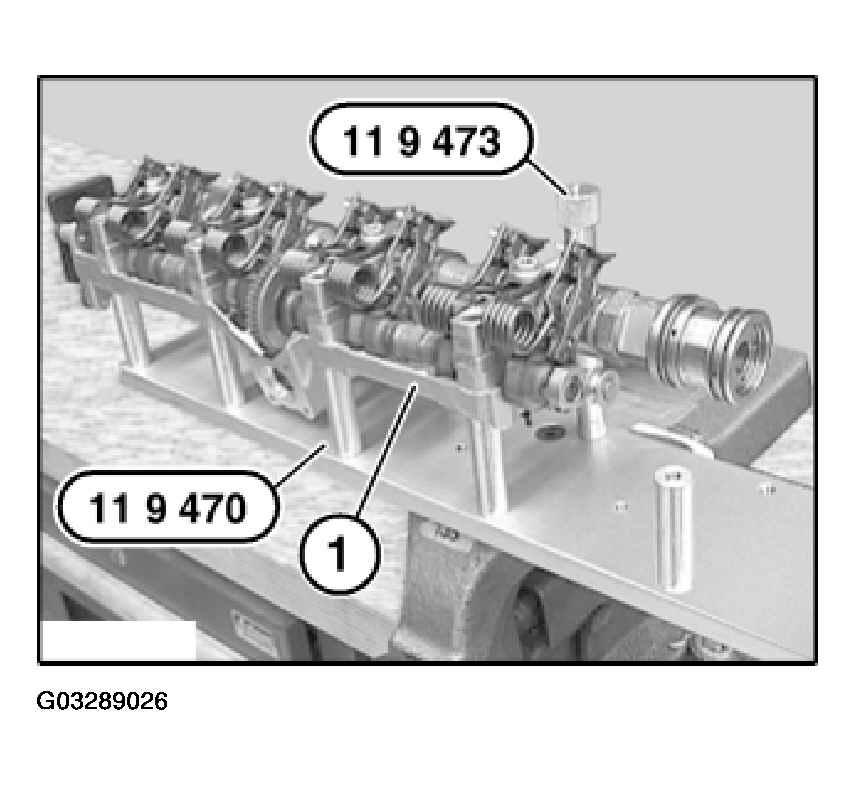

Place bearing bracket (1) with inlet camshaft and eccentric shaft as illustrated on special tool 11 9 470.

Fig 9: Securing Bearing Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

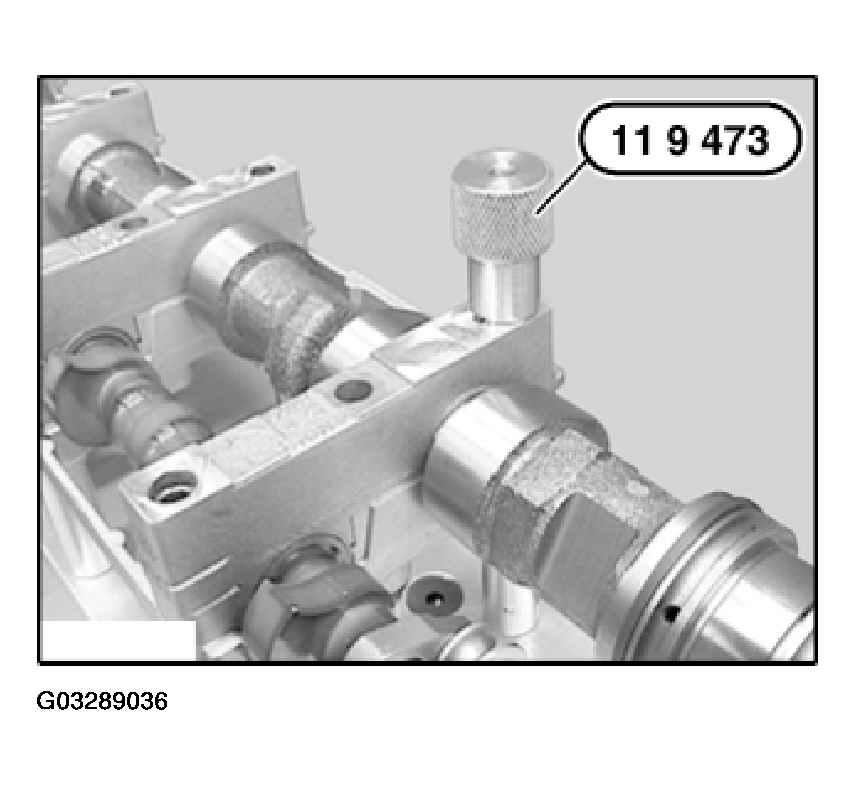

Secure bearing bracket (1) with a nut (special tool 11 9 473).

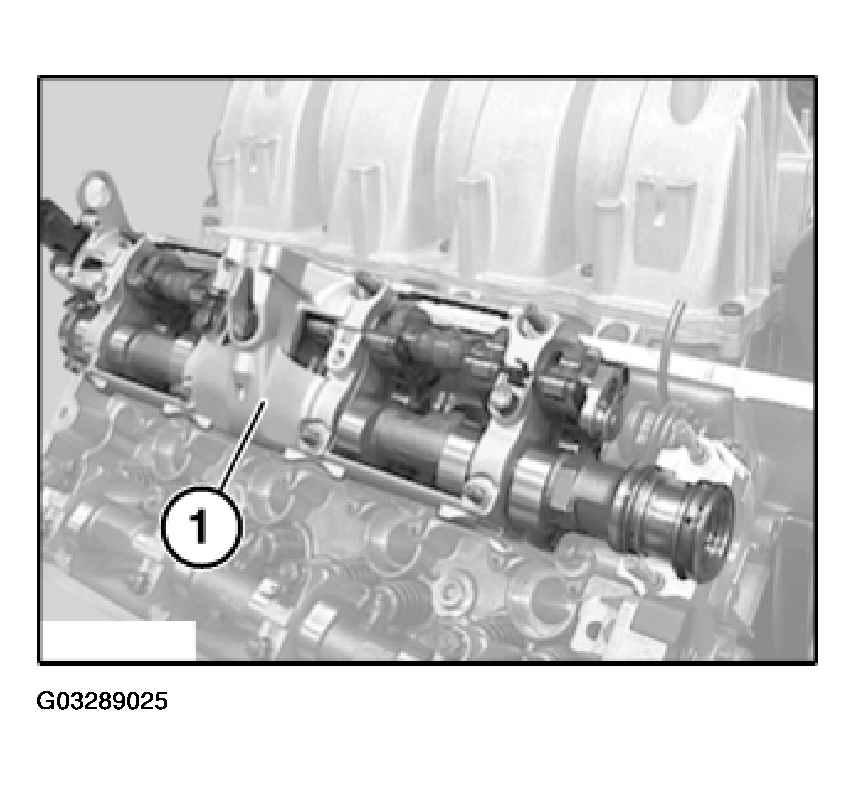

IMPORTANT: The lower section of the bearing bracket (1) is machined with the cylinder head and must not be mixed up.

NOTE: Lower section of bearing bracket (1) remains of cylinder head.

Fig 10: Identifying Lower Section Of Bearing Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: This work step will only be necessary if after the inlet camshaft has been removed the eccentric shaft is also to be removed.

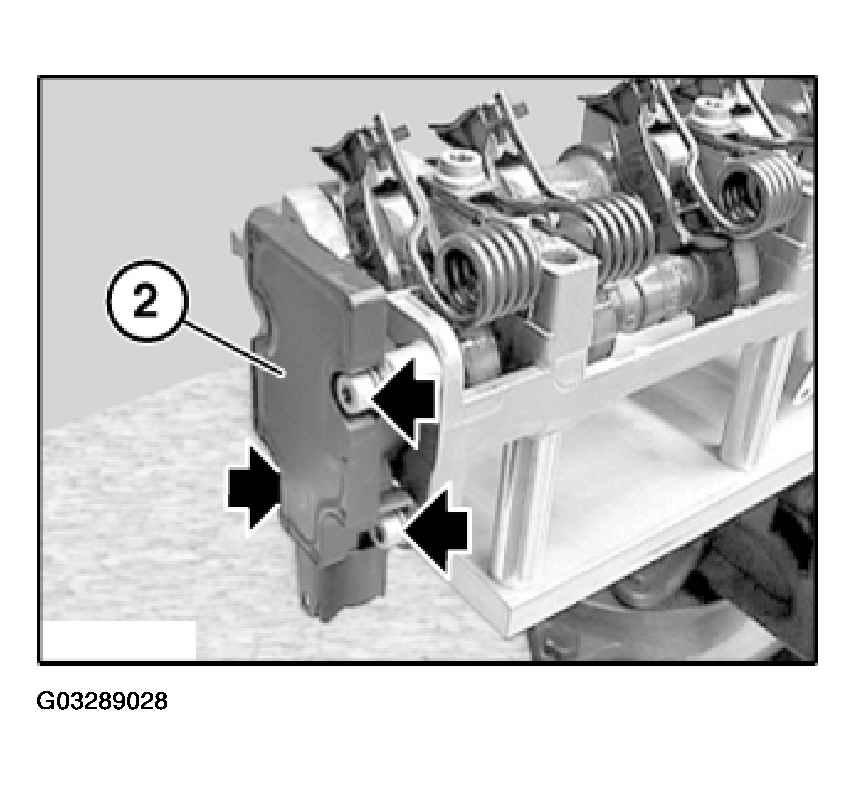

If necessary, remove eccentric shaft sensor (2).

Fig 11: Removing Eccentric Shaft Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Removal of the intermediate levers and torsion springs is described on the 4th cylinder. The same procedure is applicable to cylinders 1 to 3.

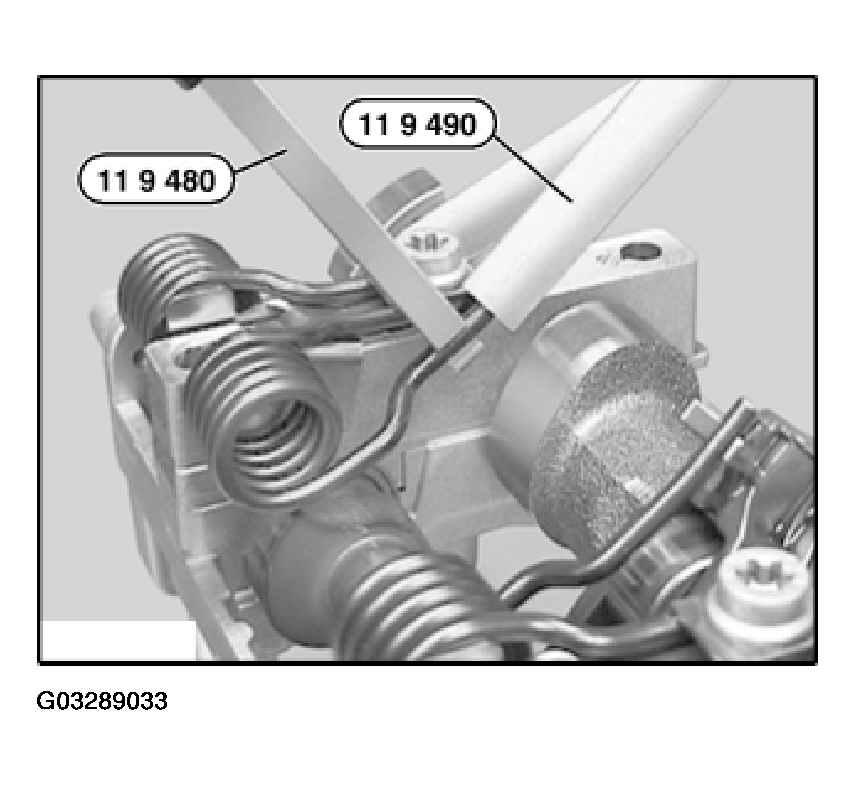

Raise one end of torsion spring (1) with special tool 11 9 480.

Fig 12: Removing Intermediate Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out intermediate lever (2) and set down in an orderly fashion.

IMPORTANT: Keep holding torsion spring (1) with special tool 11 9 480.

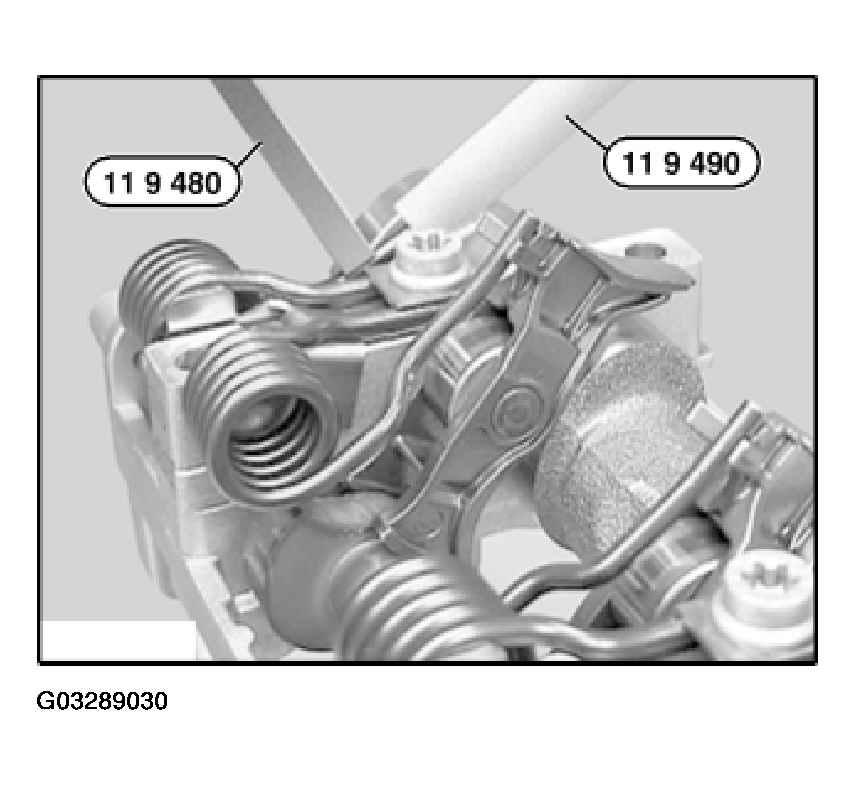

Attach special tool 11 9 490 to end of torsion spring.

Fig 13: Attaching Special Tool To End Of Torsion Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Support end of torsion spring protected with special tool 119 490 on inlet camshaft.

IMPORTANT: Intermediate levers (2) are divided into individual tolerance classes.

Fig 14: Identifying Intermediate Levers

Courtesy of BMW OF NORTH AMERICA, INC.

Only intermediate levers of the same tolerance class may be fitted in a single cylinder head.

The tolerance classes are designated as illustrated with the numbers from 1 to 5.

Used intermediate levers (2) may only be reused in the same position.

Raise second end of torsion spring (1) with special tool 11 9 480.

Fig 15: Raising Second End Of Torsion Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out intermediate lever (2) and set down in an orderly fashion.

IMPORTANT: Keep holding torsion spring (1) with special tool 11 9 480.

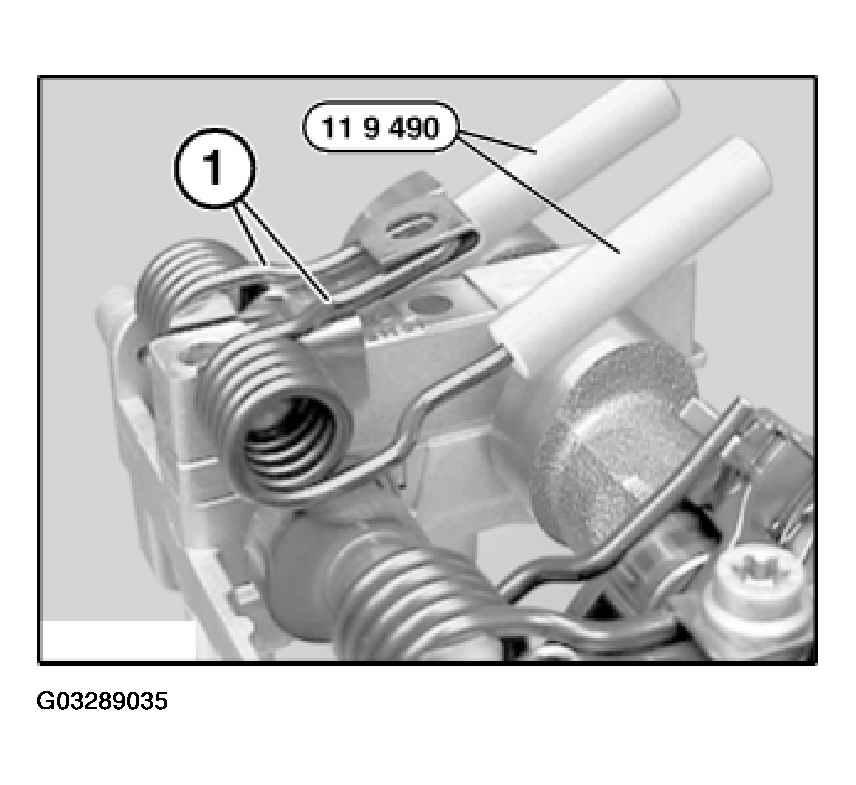

Attach special tool 11 9 490 to second end of torsion spring.

Fig 16: Attaching Special Tool To Second End Of Torsion Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Support end of torsion spring protected with special tool 11 9 490 on inlet camshaft.

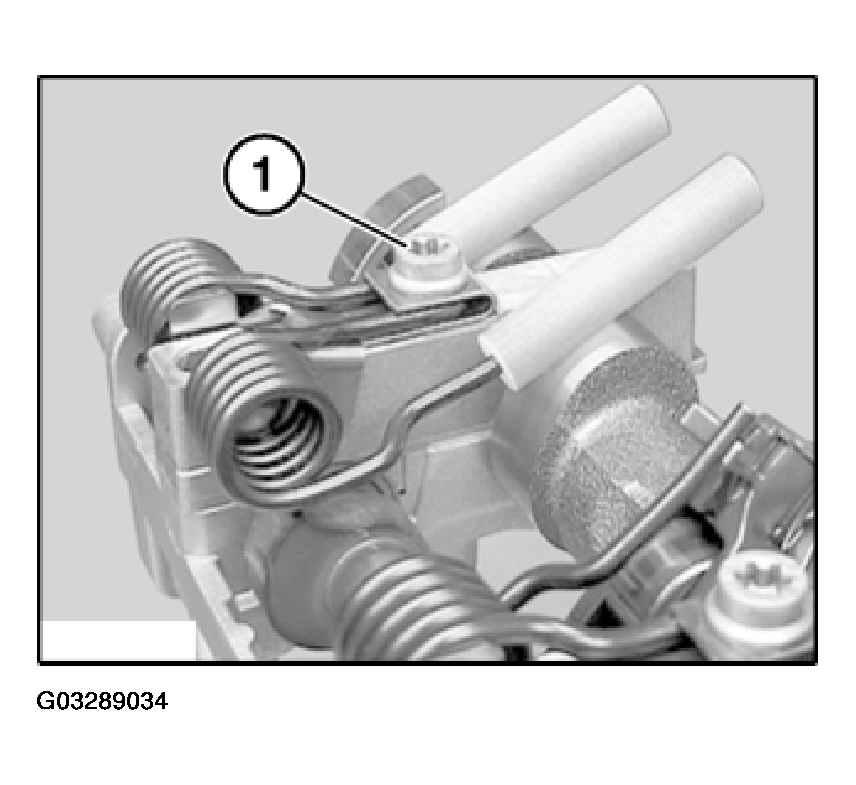

Release screw (1).

Fig 17: Releasing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Remove torsion spring (1) and special tool 119 490.

Fig 18: Removing Torsion Spring And Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the intermediate levers and torsion springs of cylinders 1 to 3 according to the same procedure and set down in an orderly fashion.

Unscrew nut (special tool 11 9 473).

Fig 19: Unscrewing Nut

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not mix up the camshaft bearing covers of cylinders 1 to 4 and 5 to 8.

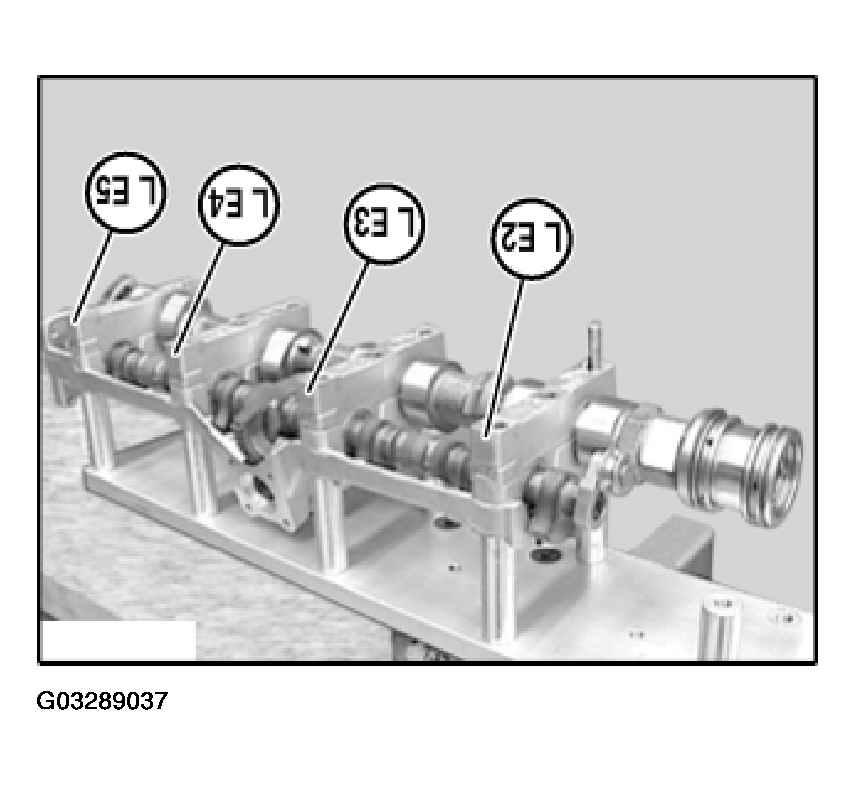

NOTE: Bearing caps are marked as illustrated with L E2 to L E5.

Fig 20: Identifying Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bearing caps L E2 to L E5 and place to one side in order.

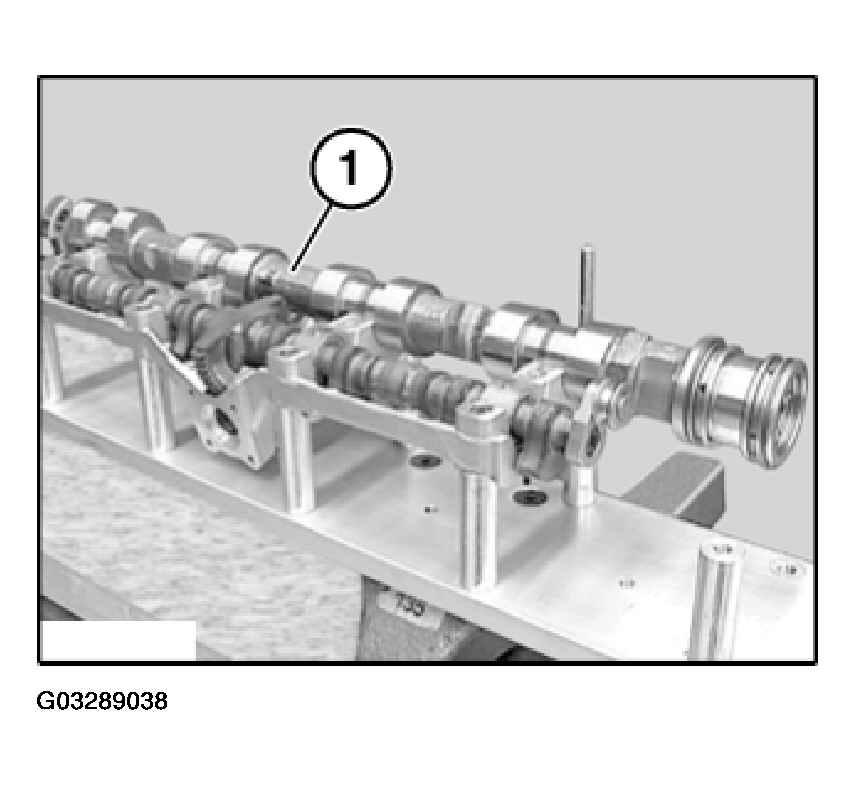

Lift out inlet camshaft (1).

Fig 21: Identifying Inlet Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Further tasks:
The section Removing and installing right eccentric shaft contains important installation instructions. Refer to 11 37 008 Removing and installing/replacing right eccentric shaft (N62 from 9/03) .

If necessary, replace plain compression rings (1).

Fig 22: Replacing Plain Compression Rings

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Plain compression rings (1) can easily break.

Plain compression rings (1) are engaged at joint.

Press compression ring (1) on one side into groove, pull up on other side and remove catch.

Carefully pull compression ring (1) apart and remove towards front.

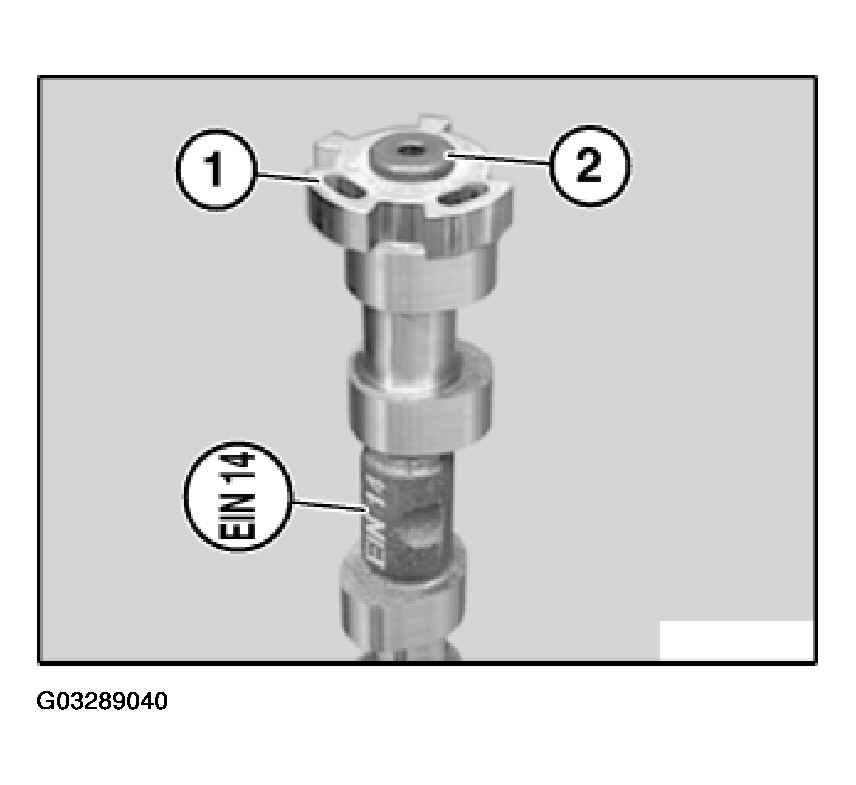

NOTE: Inlet camshaft of cylinder bank 1 to 4 is marked with "EIN 14".

Fig 23: Identifying Sensor Gear

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, replace sensor gear (1).

Release screw (2) and remove sensor gear (1).
