11 31 032 Removing and installing/replacing left inlet camshaft (N62 from 9/03): Removal

Removal of inlet camshaft is described separately from installation.

Remove servomotor for left eccentric shaft. Refer to 11 37 022 Removing and installing/replacing servomotor for left eccentric shaft (N62) .

Remove ignition coils on cylinder bank 5 to 8.

Remove left cylinder head cover. Refer to 11 12 005 Removing and installing / sealing left cylinder head cover (N62 / N62TU) .

Remove spark plugs on cylinder bank 5 to 8.

Remove inlet and exhaust adjustment unit on left side. Refer to 11 36 047 Removing and installing/replacing inlet and exhaust adjustment units on left side (N62) .

IMPORTANT: The inlet camshaft must first be rotated so that when the bearing bracket is removed the intermediate levers do not slip out and damage the camshaft.

Rotate inlet camshaft against direction of rotation until lettering (1) on 8th cylinder points upwards in cylinder axis and cam is horizontal.

Fig 1: Rotating Inlet Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not mix up the camshaft bearing covers of cylinders 1 to 4 and 5 to 8.

NOTE: Bearing caps of inlet camshaft are marked on cylinder bank 5 to 8 with R E1 to R E5 from inlet side.

Fig 2: Identifying Bearing Cap Marks

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts and remove bearing cap R E1.

Release 8 nuts of bearing bracket (1) from outside to inside.

Fig 3: Releasing Nuts Of Bearing Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Rocker arms are freely accessible after bearing bracket has been removed.

Do "not" remove rocker arm (1) on inlet side.

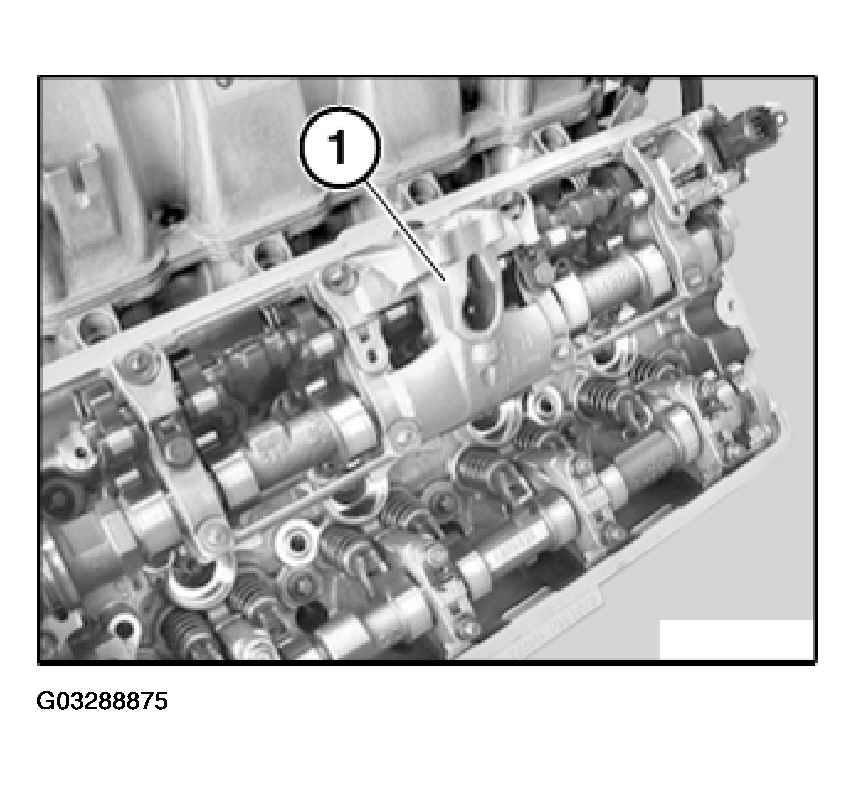

Fig 4: Locating Rocker Arms On Inlet Side

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Rockers arms (1) are divided into individual tolerance classes.

The tolerance classes are designated as illustrated with the numbers from 1 to 4.

Used rocker arms (1) may only be reused in the same position.

When replacing rocker arms (1) on inlet side: install rocker arms of the same tolerance class in the same position.

Clamp special tool 11 9 470 as illustrated in a vise.

Fig 5: Clamping Special Tool In Vise

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not tilt bearing bracket (1).

Carefully lift out bearing bracket (1).

Fig 6: Lifting Out Bearing Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Place bearing bracket (1) with inlet camshaft and eccentric shaft as illustrated on special tool 11 9 470.

Secure bearing bracket (1) with a nut (special tool 11 9 473).

Fig 7: Placing Bearing Bracket On Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The lower section of the bearing bracket (1) is machined with the cylinder head and must not be mixed up.

NOTE: Lower section of bearing bracket (1) remains on cylinder head.

Fig 8: Locating Lower Section Of Bearing Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: This work step will only be necessary if after the inlet camshaft has been removed the eccentric shaft is also to be removed.

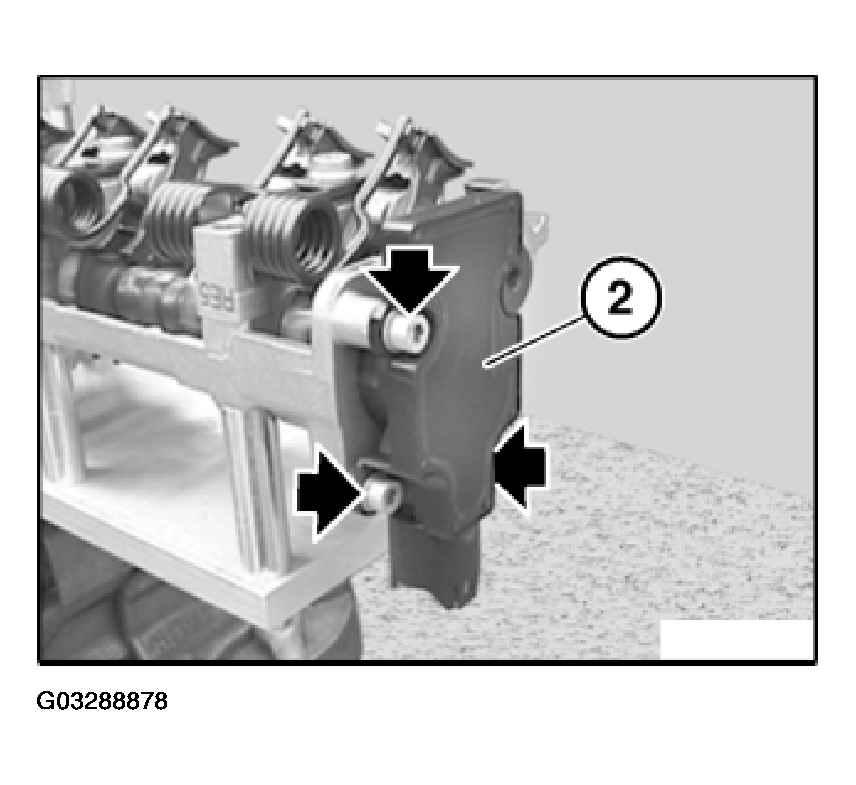

If necessary, remove eccentric shaft sensor (2).

Fig 9: Removing Eccentric Shaft Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Removal of the intermediate levers and torsion springs is described on the 8th cylinder. The same procedure is applicable to cylinders 5 to 7.

Raise one end of torsion spring (1) with special tool 11 9 480.

Fig 10: Lifting Out Intermediate Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out intermediate lever (2) and set down in an orderly fashion.

IMPORTANT: Keep holding torsion spring (1) with special tool 11 9 480.

Attach special tool 11 9 490 to end of torsion spring.

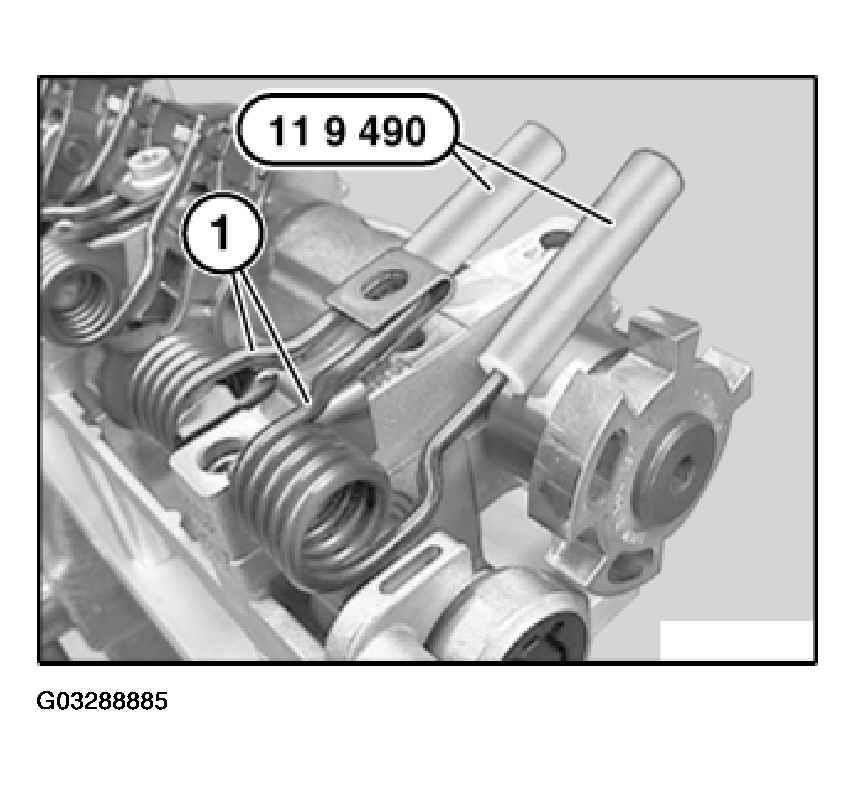

Fig 11: Supporting End Of Torsion Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Support end of torsion spring protected with special tool 11 9 490 on inlet camshaft.

IMPORTANT: Intermediate levers (2) are divided into individual tolerance classes.

Fig 12: Identifying Intermediate Levers

Courtesy of BMW OF NORTH AMERICA, INC.

Only intermediate levers of the same tolerance class may be fitted in a single cylinder head.

The tolerance classes are designated as illustrated with the numbers from 1 to 5.

Used intermediate levers (2) may only be reused in the same position.

Raise second end of torsion spring (1) with special tool 11 9 480.

Fig 13: Lifting Out Intermediate Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out intermediate lever (2) and set down in an orderly fashion.

IMPORTANT: Keep holding torsion spring (1) with special tool 11 9 480.

Attach special tool 11 9 490 to second end of torsion spring.

Fig 14: Supporting End Of Torsion Spring With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Support end of torsion spring protected with special tool 11 9 490 on inlet camshaft.

Release screw (1).

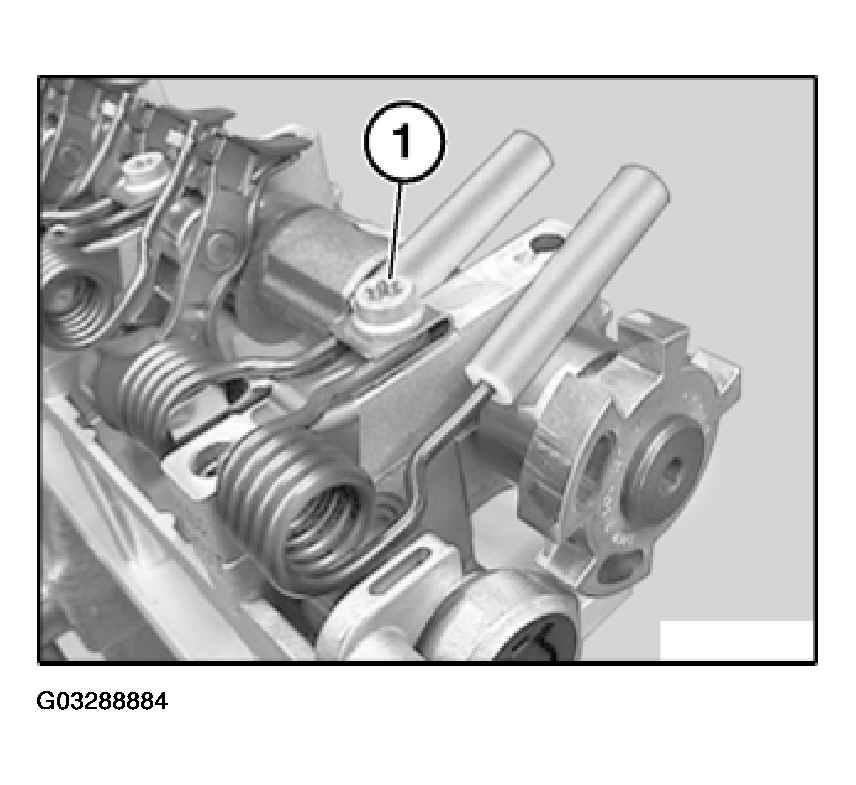

Fig 15: Removing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Remove torsion spring (1) and special tool 11 9 490.

Fig 16: Removing Torsion Spring And Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the intermediate levers and torsion springs of cylinders 5 to 7 according to the same procedure and set down in an orderly fashion.

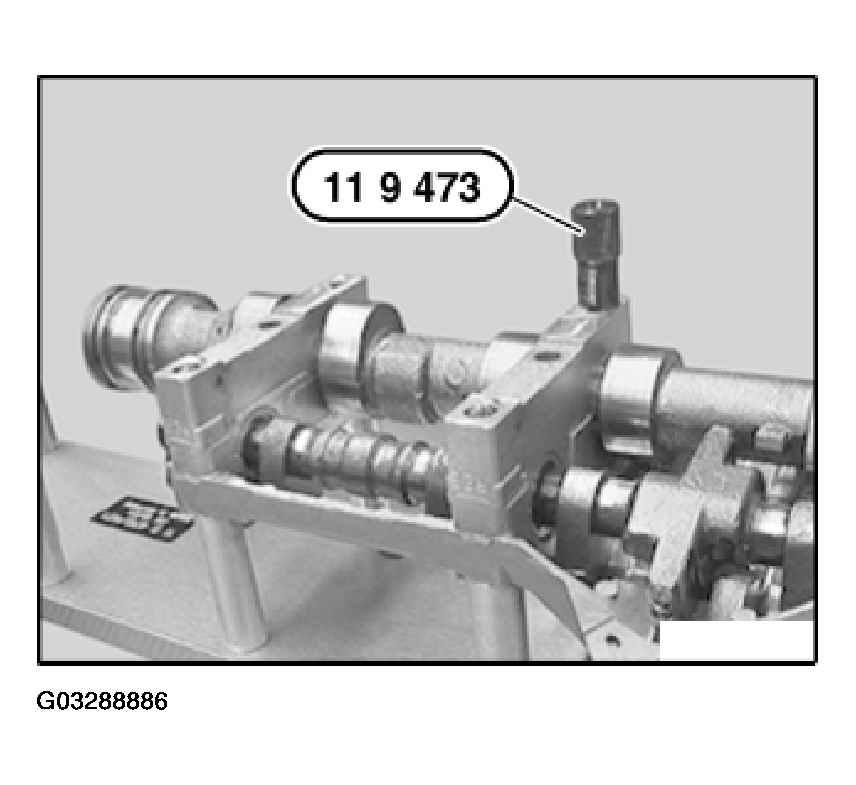

Unscrew nut (special tool 11 9 473).

Fig 17: Removing Nut

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not mix up the camshaft bearing covers of cylinders 1 to 4 and 5 to 8.

NOTE: Bearing caps are marked as illustrated with R E2 to R E5.

Fig 18: Identifying Bearing Cap Marks

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bearing caps R E2 to R E5 and place to one side in order.

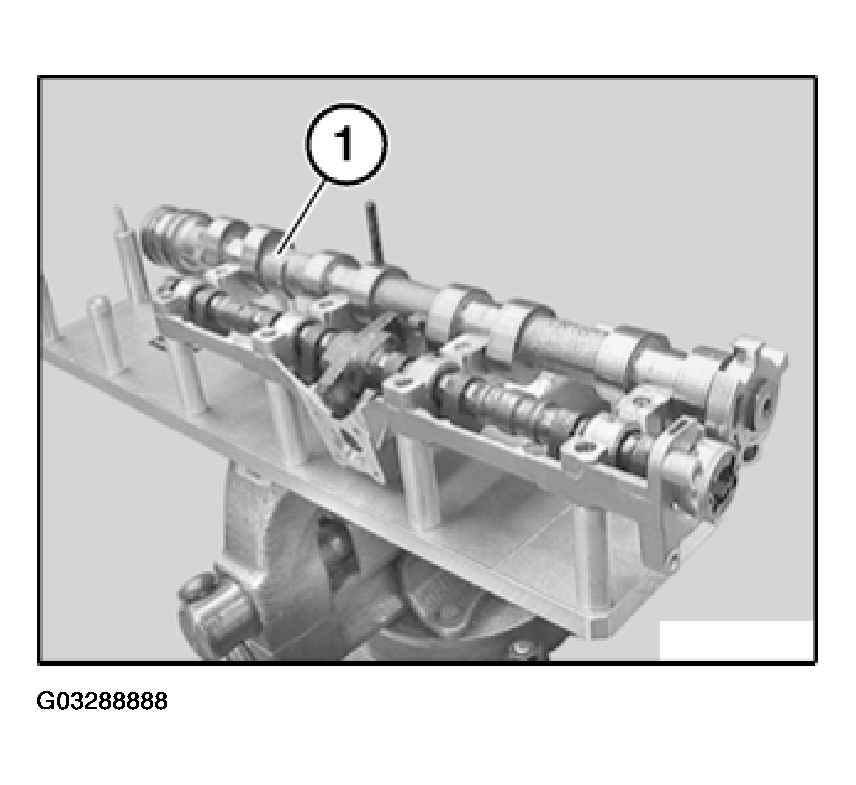

Lift out inlet camshaft (1).

Fig 19: Lifting Out Inlet Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Further tasks:
The section Removing and installing left eccentric shaft contains important installation instructions. Refer to 11 37 006 Removing and installing/replacing left eccentric shaft (N62 from 9/03) .

If necessary, replace plain compression rings (1).

Fig 20: Locating Compression Rings

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Plain compression rings (1) can easily break.

Plain compression rings (1) are engaged at joint.

Press compression ring (1) on one side into groove, pull up on other side and remove catch.

Carefully pull compression ring (1) apart and remove towards front.

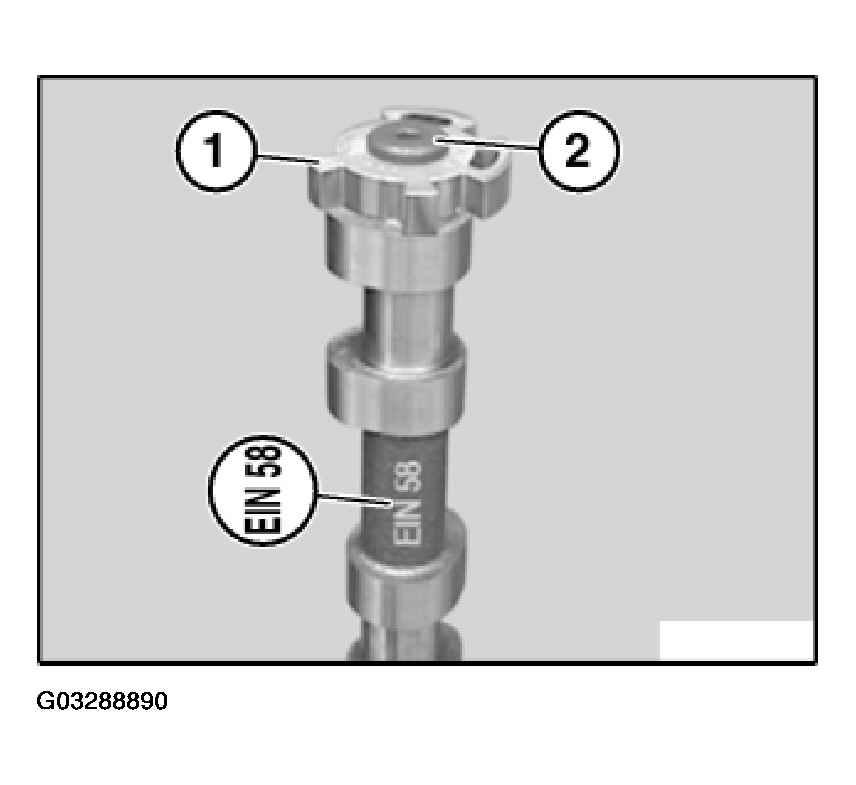

NOTE: Inlet camshaft of cylinder bank 5 to 8 is marked with "EIN 58".

Fig 21: Removing Sensor Gear

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, replace sensor gear (1).

Release screw (2) and remove sensor gear (1).
