62 1 230 Set of test leads
SET OF TEST LEADS SPECIFICATION
| In conjunction with: | 61 1 459, 61 1 473, 61 1 475 and 62 1 270 (for triggering) |
| Note: | For airbag for testing, troubleshooting and triggering - model year: up to 94 |
| Series: | E36, E38, E65, E66, RR1 |
| Storage location: | O 201, O 202, O 203 |
| SI number: | 2 02 94(807) |
| Order number: | 62 1 230 |

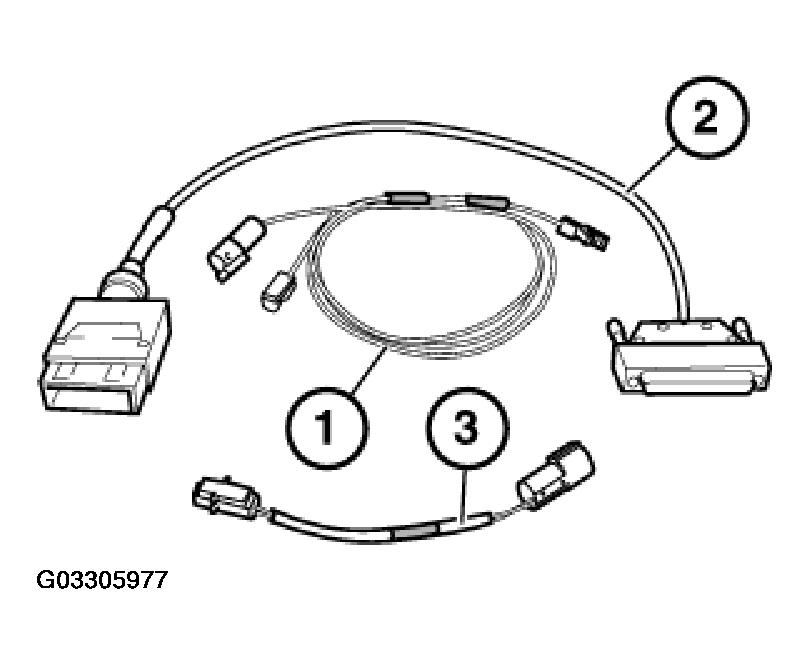

| Set of test leads | |
| Consisting of: | |
| 1 = 62 1 231 | V-adapter lead |
| Note: | For coil spring & airbag unit" for RR only this lead |
| In conjunction with: 61 1 473, 61 1 475 | |
| 2 = 62 1 232 | Test cable |
| Note: | For BAE/ZAE - basic trigger unit/ central trigger unit |
| In conjunction with: | 61 1 459 |
| 3 = 62 1 233 | Adapter lead |
| Note: | For firing device - driver's airbag up to model year 94 |
| In conjunction with: 62 1 270 | |
| 9 = 62 1 239 | Operating instructions |
