33 3 440 Drift

Minimum set: Mechanical tools

SPECIAL TOOL DESCRIPTION

In conjunction with: 00 5 500
Note: For fitting rotary shaft seal (with axial sealing lip) on input flange
Series: E30, E31, E32, E34, E36, E38, E39, E46, E52, E53, E60, E61, E63, E64, E65, E66, E67, E87
Transmission: Diff. 220kom, diff. 225kom, diff. type G
Storage location: A31
SI number: 1 05 94(789)
Order number: 33 3 440
  Drift

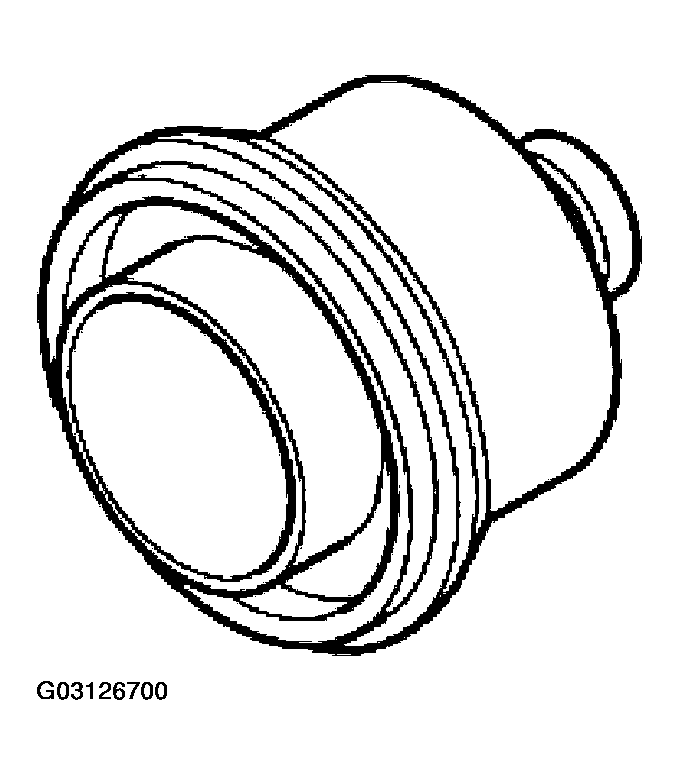

Fig 1: Identifying Drift (33 3 440)
G03126700Courtesy of BMW OF NORTH AMERICA, INC.
