12 41 020 Removing and installing/replacing starter motor (M54)

Follow instructions for disconnecting and connecting battery, refer to 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

Disconnect battery negative lead from battery.

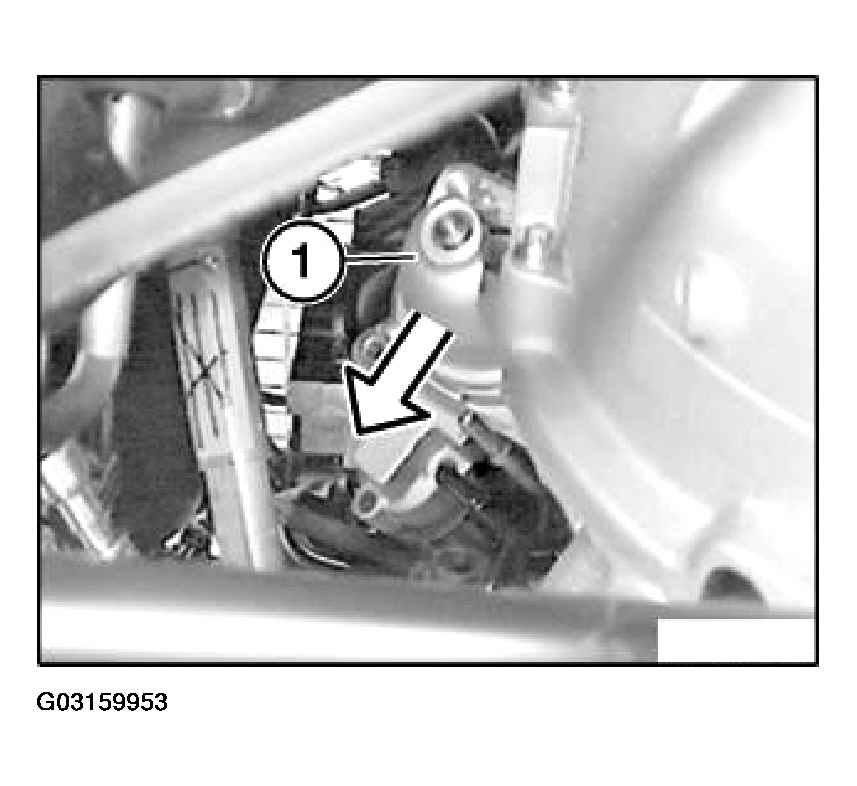

Unlock plug (1) from pulse generator for crankshaft and detach.

Fig 1: Disconnecting Plug From Crankshaft Pulse Generator

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For a better overview, this work step is shown on an engine that has been removed.

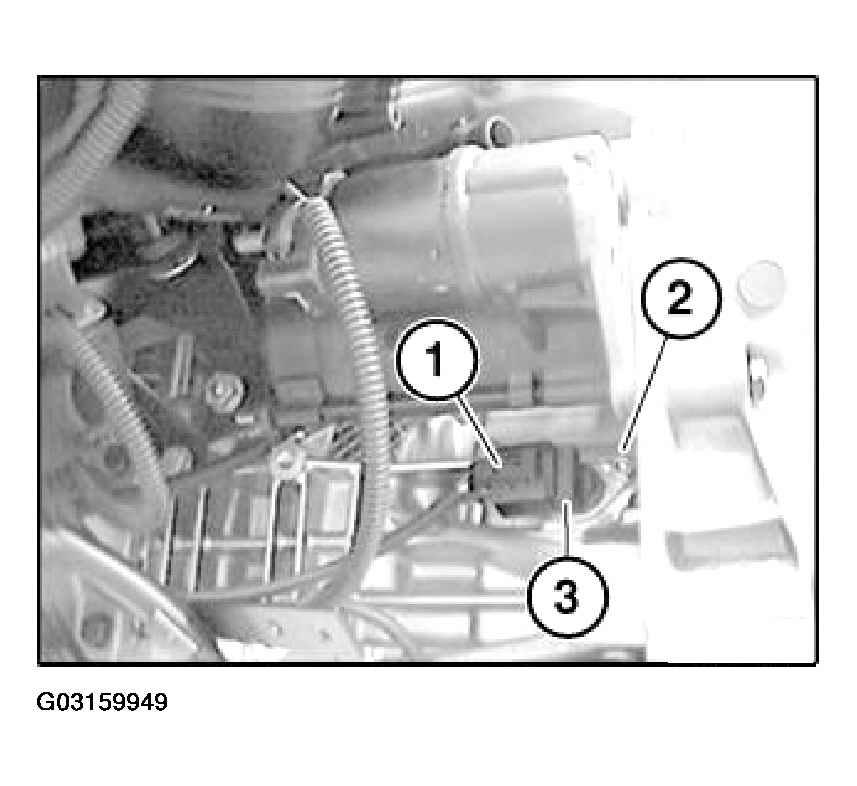

Release nut (1) and disconnect battery positive leads from starter motor.

Fig 2: Disconnecting Battery Positive Leads From Starter Motor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

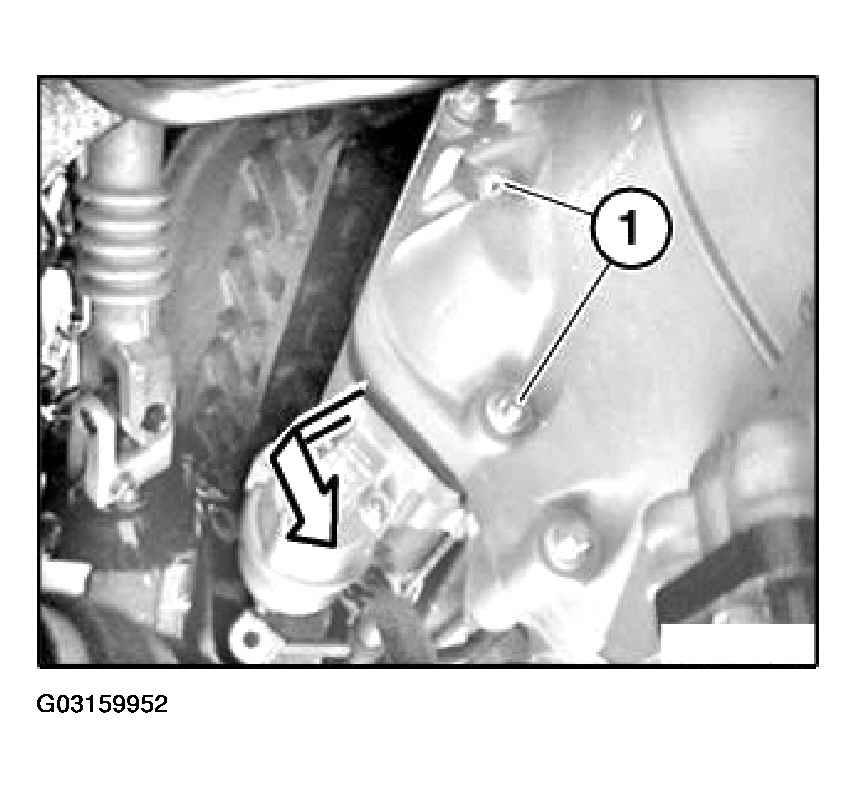

Release nuts (1).

Fig 3: Removing Starter Motor Lead Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Detach leads (2) from starter motor.

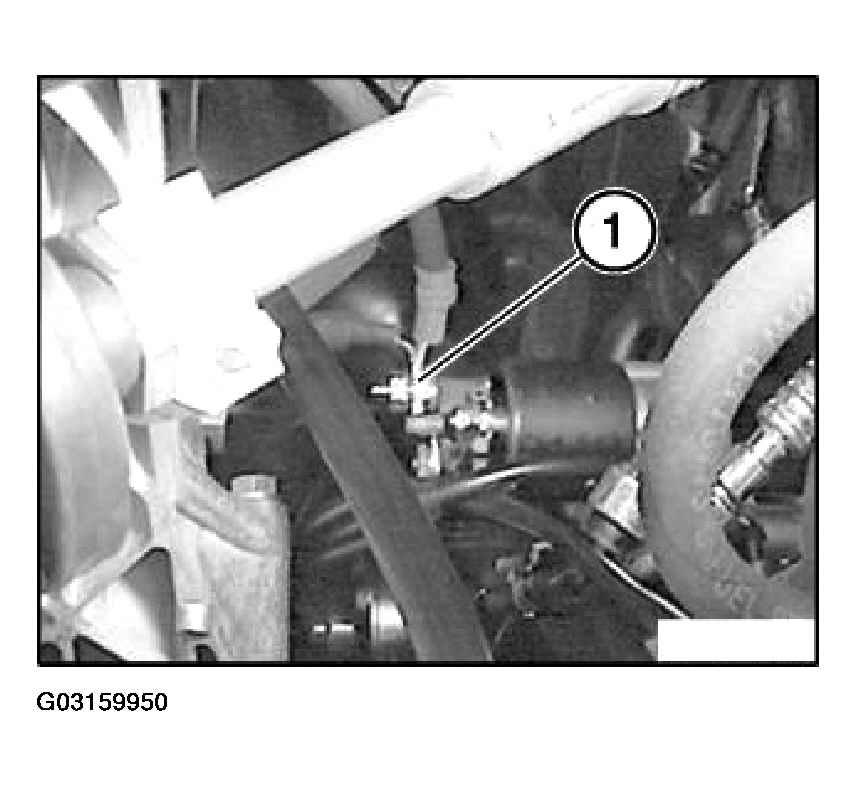

Releasing both starter motor mounting bolts (1) on transmission:

Release starter mounting bolts from transmission output end with a long extension and a universal joint.

Fig 4: Removing Starter Mounting Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pull starter motor (1) out of transmission flange and remove towards bottom.

Fig 5: Removing Starter Motor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

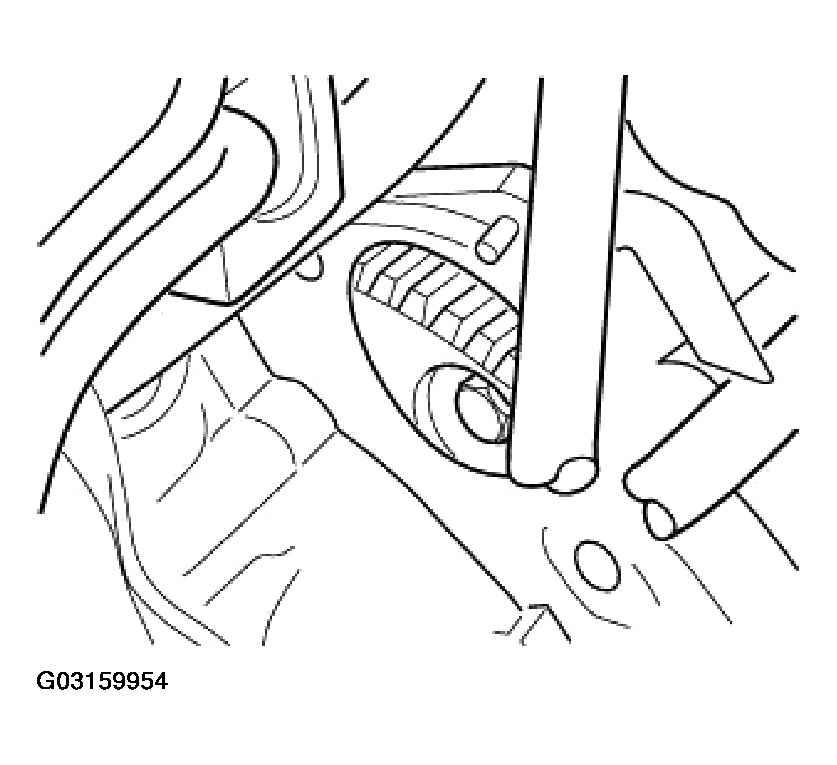

Check starter motor pinion and ring gear for damage.
