61 1 150 Releasing tool kit
Minimum set: Mechanical tools

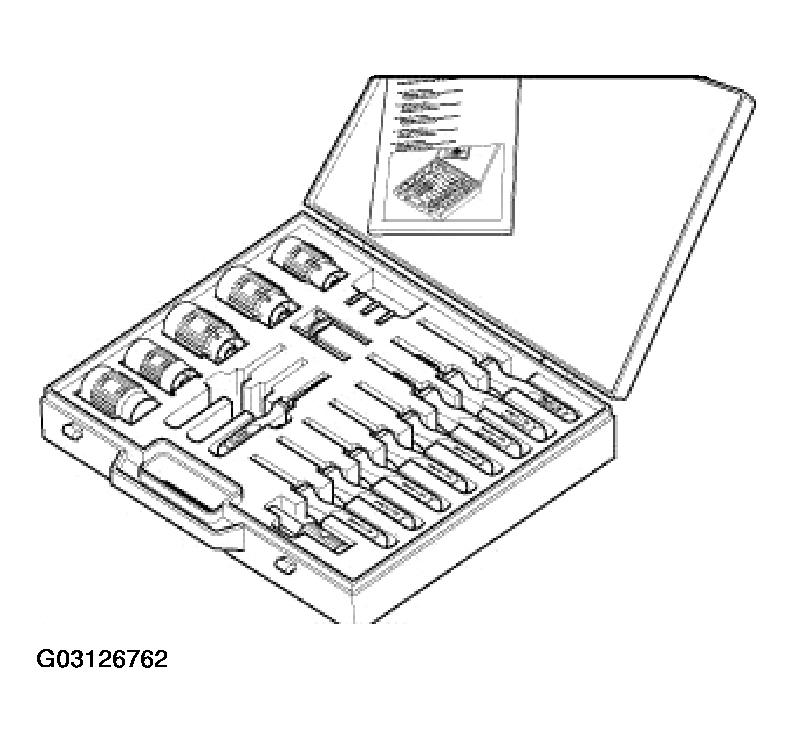

RELEASING TOOL KIT 61 1 150
| Note: | For circular connector / ejector tool - Contains the kits 61 1 130, 61 1 140 and 61 1 180 |
| Series: | E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E38, E39, E46, E52, E53, E65, E66, E83, E85, R50, R53, RR1 |
| Storage location: | K106 |
| Order number: | 61 1 150 |
| Releasing tool kit | |
| Consisting of: | |
| 61 1 151 | Pressing-out tool |
|
NOTE:
For Power-Timer contacts / AMP and Bosch
|
|
| 61 1 152 | Pressing-out tool |
|
NOTE:
For Micro-Timer contacts
|
|
| 61 1 153 | Release tool |
|
NOTE:
For retaining tabs of relay holder
|
|
| 61 1 154 | Replacement sleeve dia. 1.5 mm for 61 1 139 |
|
NOTE:
Order number was reserved in 8/95 on delivery of case temporarily for case insert
|
|
| 61 1 155 | Replacement sleeve dia. 3.5 mm for 61 1 133 |
| 61 1 156 | Replacement sleeve dia. 2.5 mm for 61 1 132 |
| 61 1 157 | Replacement sleeve dia. 1.5 mm for 61 1 131 |
| 61 1 158 | Case with insert |
| 61 1 159 | Operating instructions |
| 61 1 131 | Pressing-out tool |
|
NOTE:
For 1.5 mm round contacts
|
|
| 61 1 132 | Pressing-out tool |
|
NOTE:
For 2.5 mm round contacts
|
|
| 61 1 133 | Pressing-out tool |
|
NOTE:
For 3.5 mm round contacts
|
|
| 61 1 134 | Pressing-out tool |
|
NOTE:
For mini flat spring contacts
|
|
| 61 1 135 | Pressing-out tool |
|
NOTE:
For standard flat spring contacts
|
|
| 61 1 136 | Pressing-out tool |
|
NOTE:
For Power-Timer contacts (G & H)
|
|
| 61 1 137 | Pressing-out tool |
|
NOTE:
For Timer contacts
|
|
| 61 1 138 | Socket wrench |
|
NOTE:
For telltale lamps (instrument cluster)
|
|
| 61 1 139 | Pressing-out tool |
|
NOTE:
Slotted sleeve for 1.5 mm dia. Kostal round contacts1
|
|
| 61 1 141 | Release tool |
|
NOTE:
For D 2.5 / ELA, 4-pin, round
|
|
| 61 1 142 | Release tool |
|
NOTE:
For D 2.5 / ELA, 7-pin, round
|
|
| 61 1 143 | Release tool |
|
NOTE:
For D 2.5 / ELA, 12-pin, round
|
|
| 61 1 144 | Release tool |
|
NOTE:
For D 2.5 / ELA, 25-pin, round
|
|
| 61 1 145 | Release tool |
|
NOTE:
For D 1.5 / ELA, 10-pin, round
|
|
| 61 1 149 | Replacement blades |
|
NOTE:
For pressing-out tool 61 1 148
|
|
| 61 1 148 | Pressing-out tool for SLC |
|
NOTE:
SLK = Sensor Laminated Contacts
|
|
| 61 1 180 | Pressing-out tool |
|
NOTE:
For load current contacts This individual tool belongs to 61 1 150
|
|
