12 14 600 Replacing knock sensor (M52TU, M54, M56)

Necessary preliminary tasks:

Check stored fault messages.
Switch off ignition.
Remove intake air manifold, refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (M54) .

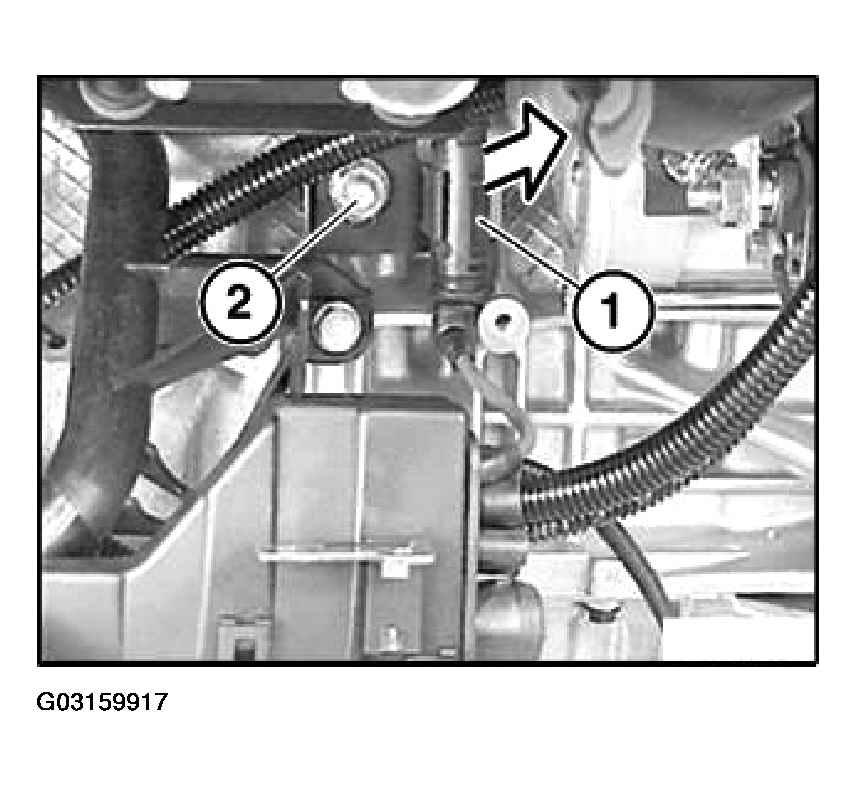

Unclip plug connection (1) from holder of cable duct (2) and disconnect.

Fig 1: Disconnecting Knock Sensor Plug Connection From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

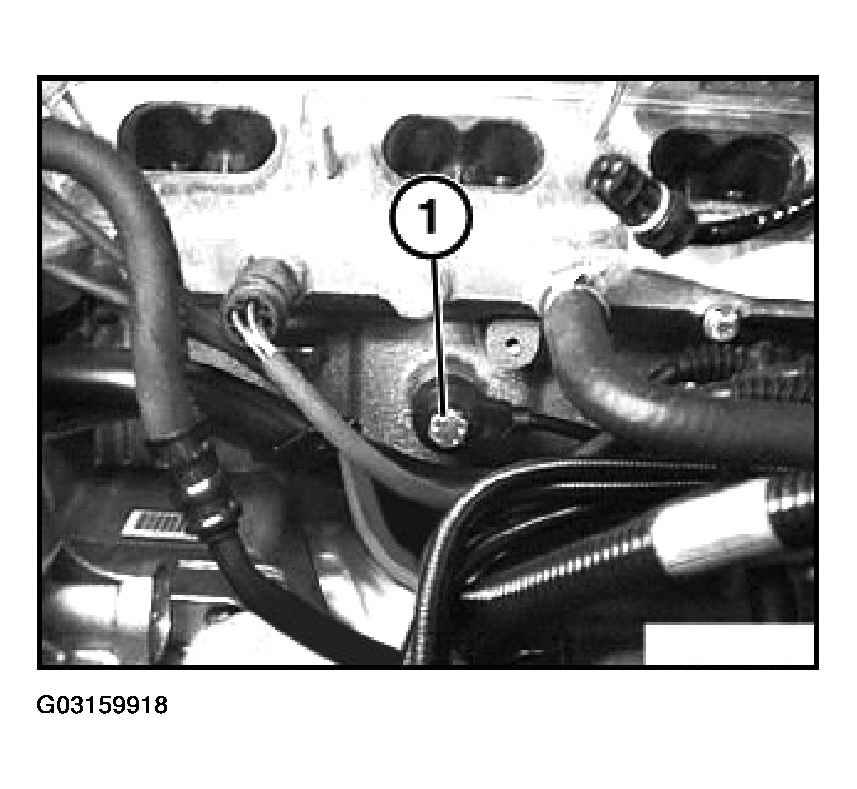

Release screw (1) and remove knock sensor for cylinder bank 1-3.

Fig 2: Removing Knock Sensor (Cylinder Bank 1-3)

Courtesy of BMW OF NORTH AMERICA, INC.

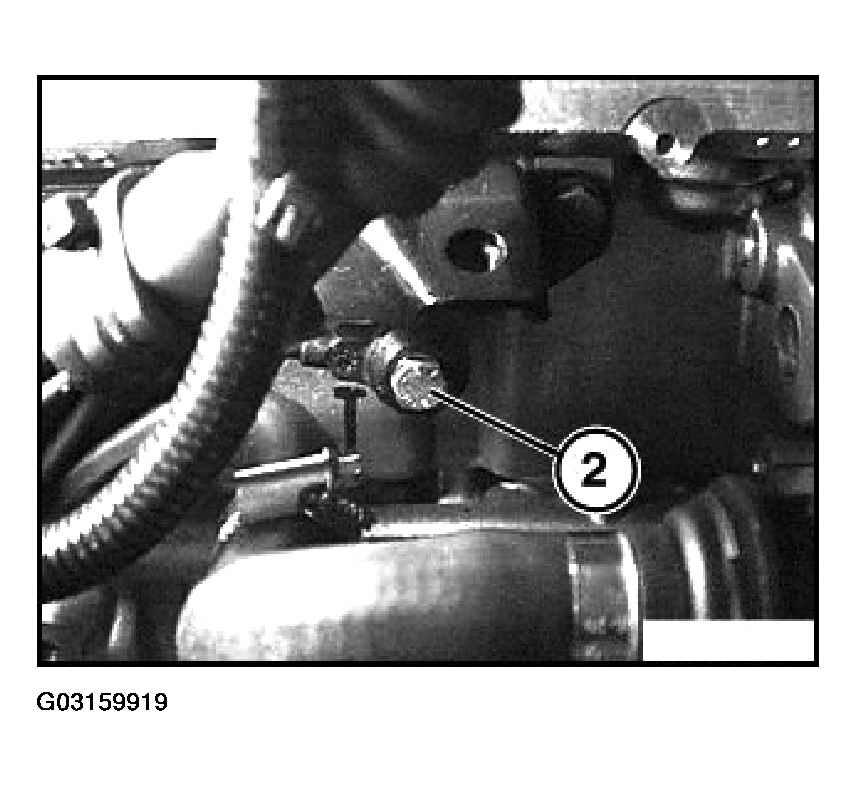

Release screw (2) and remove knock sensor for cylinder bank 4-6.

Fig 3: Removing Knock Sensor (Cylinder Bank 4-6)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

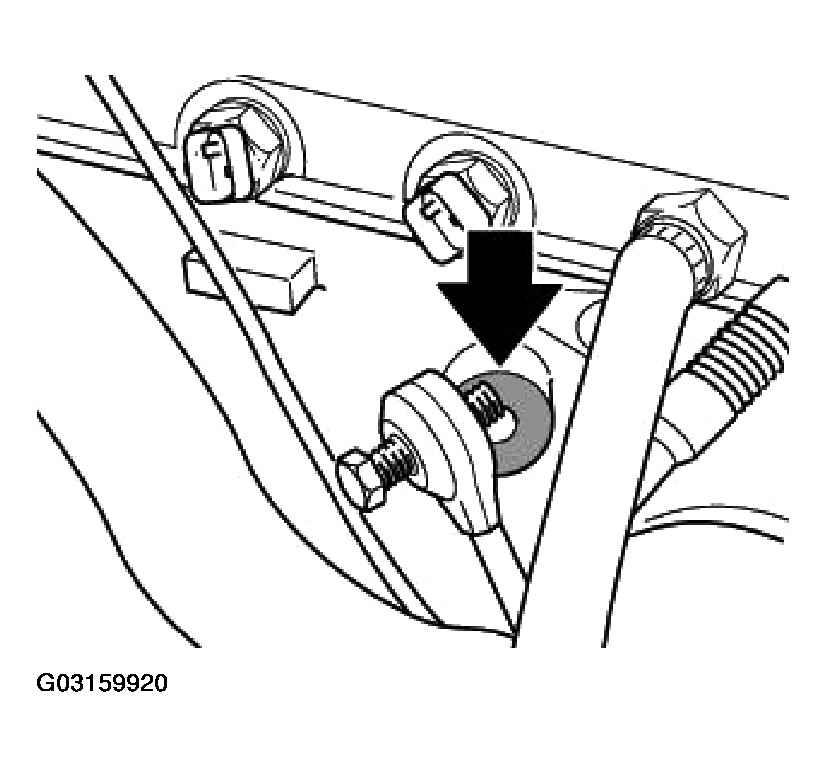

Clean support face of knock sensors on engine block.

Fig 4: Installing Knock Sensors

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Read out fault memory of control unit of Digital Motor Electronics (DME).

Now clear the fault memory.
