66 20 560 Removing and installing / replacing signal sensor

Remove trim for oddments tray,

refer to 51 46 000 REMOVING AND INSTALLING/REPLACING TRIM FOR ODDMENTS TRAY (BACK SHELF) .

Unfasten nut from luggage compartment.

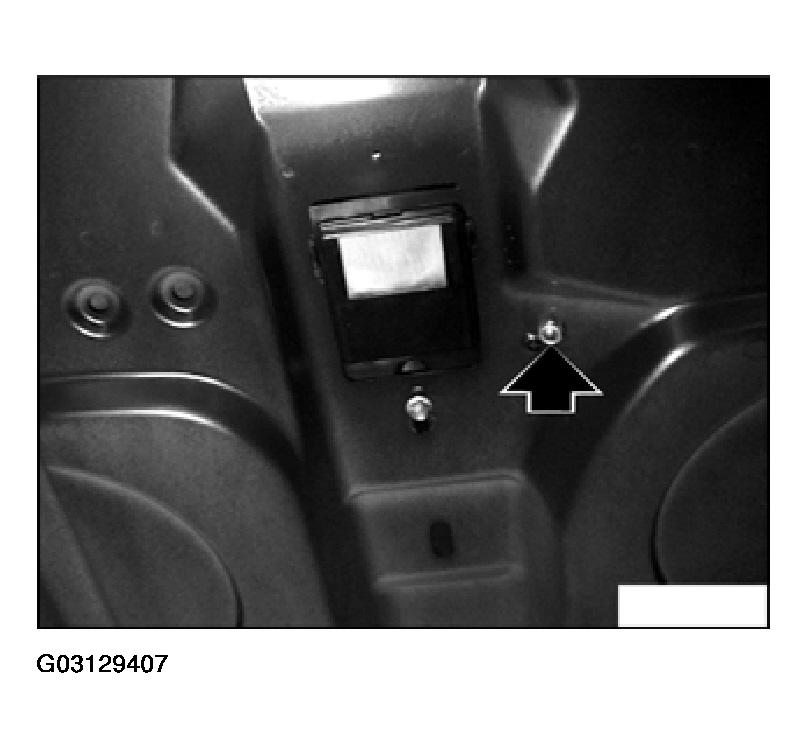

Fig 1: Removing Nut From Luggage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Remove connector and lift out signal sensor.

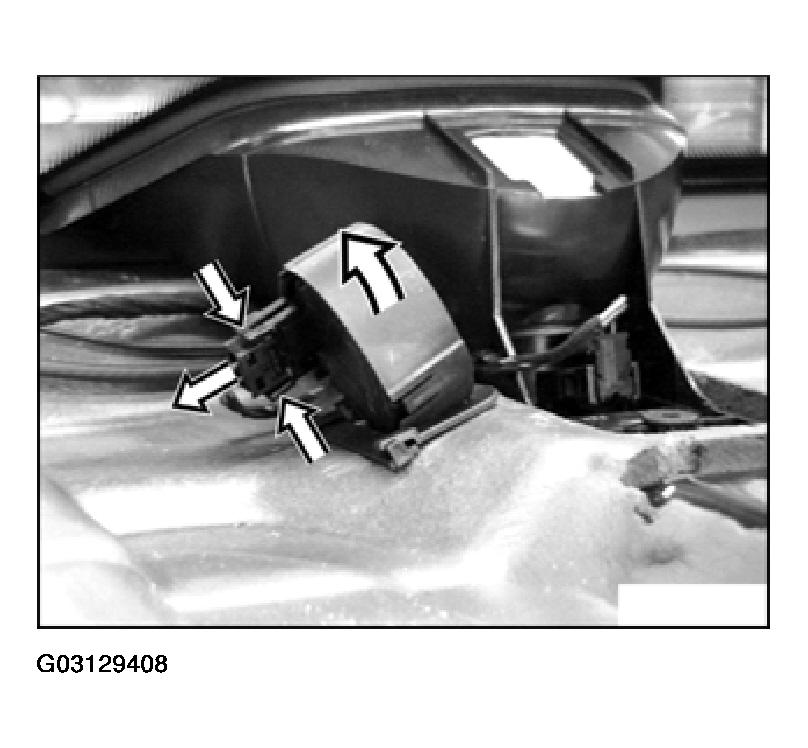

Fig 2: Removing Signal Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
