Removal & Installation

  1. Unfasten stabilizer link from stabilizer. See Fig 1.
  2. Release stabilizer link on swinging arm. Remove stabilizer link. See Fig 2.
  3. To install, reverse installation procedure. Replace nut (2). Fit washers (1). See Fig 2. Tighten nut to specification. See TORQUE SPECIFICATIONS .
  4. Replace nut on stabilizer link to stabilizer bar. Tighten to specification. See TORQUE SPECIFICATIONS .

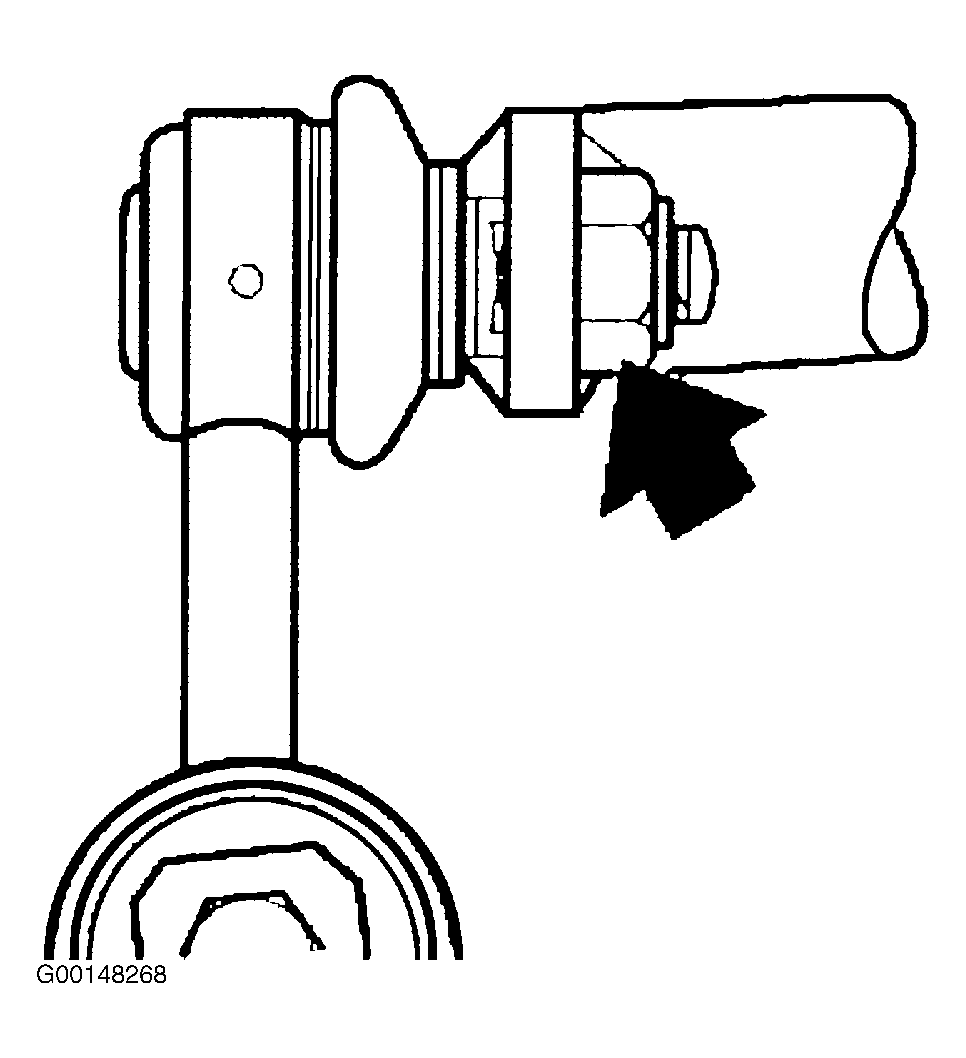

Fig 1: Identifying Stabilizer Link
G00148268Courtesy of BMW OF NORTH AMERICA, INC.

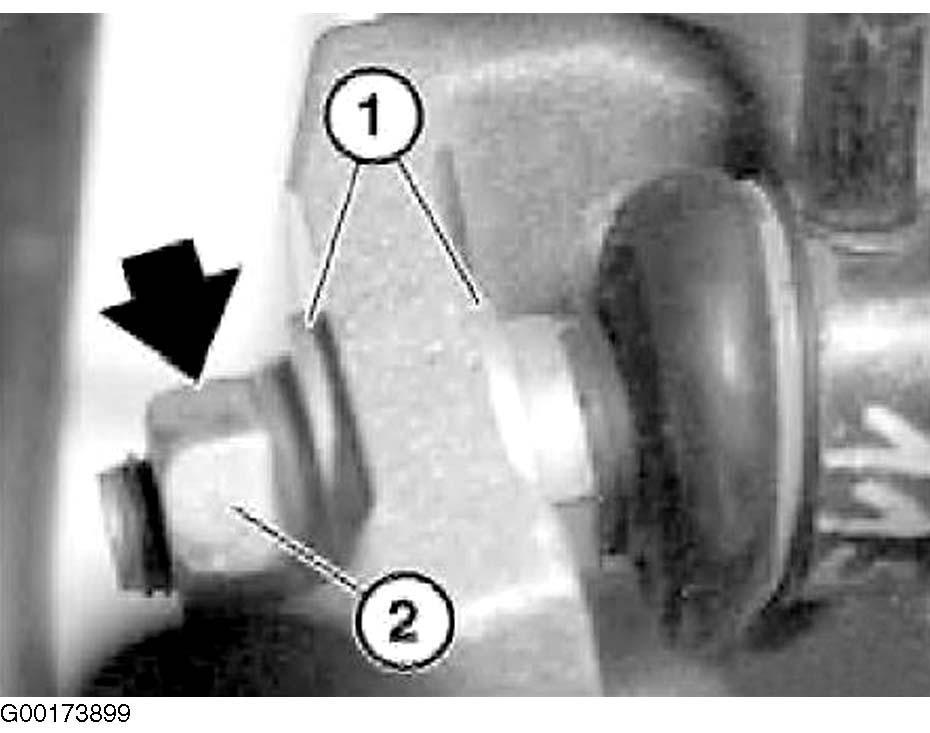

Fig 2: Removing Stabilizer Link
G00173899Courtesy of BMW OF NORTH AMERICA, INC.
