51 14 110 Removing and installing/replacing rear model emblem: Dimensions:

A= 22 mm

B= 53 mm

NOTE: Measurement "C" is for information purposes only, as it is determined by carrier film.

C= 8.7 mm

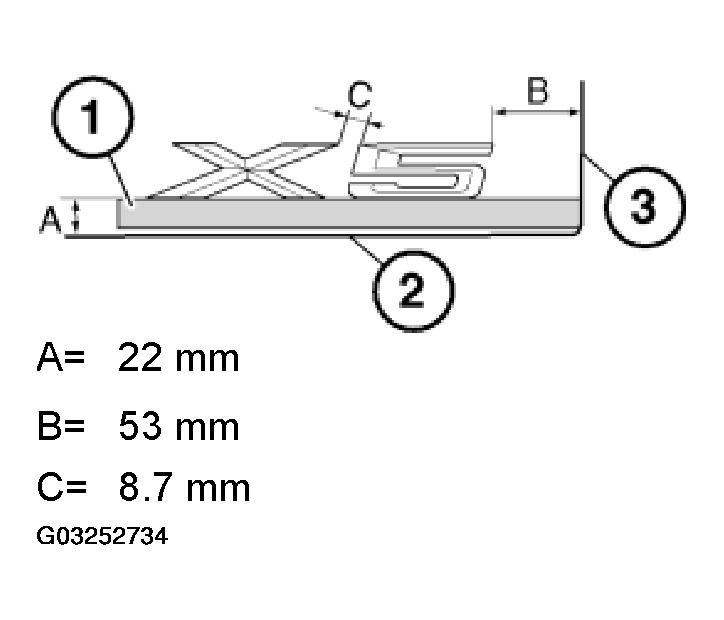

Fig 1: Applying Rear Model Emblem

Courtesy of BMW OF NORTH AMERICA, INC.
