35 40 503 Replacing adapter plate
WARNING:
Always replace disassembled adapter plate with a new part.
Retaining clips of old part can be damaged and adapter plate can slide out of steel plate.
This means there is a risk of accident!
Remove accelerator pedal module. See 35 40 001 Removing And Installing/Replacing Accelerator Pedal Module .

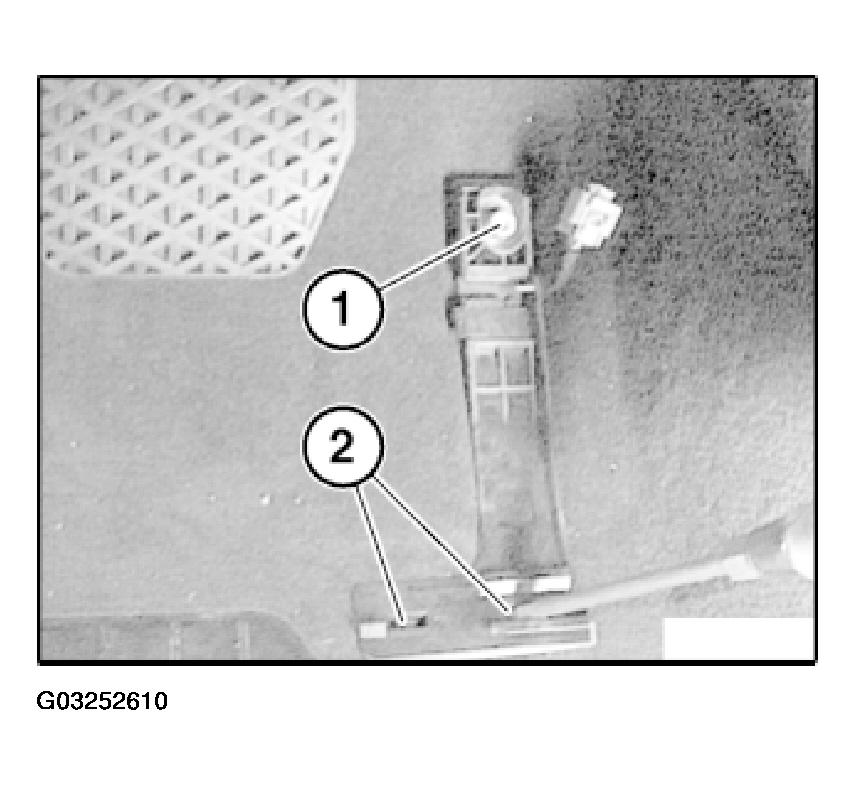

Release screw (1).
Installation:
Tightening torque, see 35 40 1AZ in PEDALS - TIGHTENING TORQUES - X5 .
Bend retaining clips (2 and 3) to one side and pull out adapter plate towards top.
